Toyota PREVIA — RADIATOR GRILLE

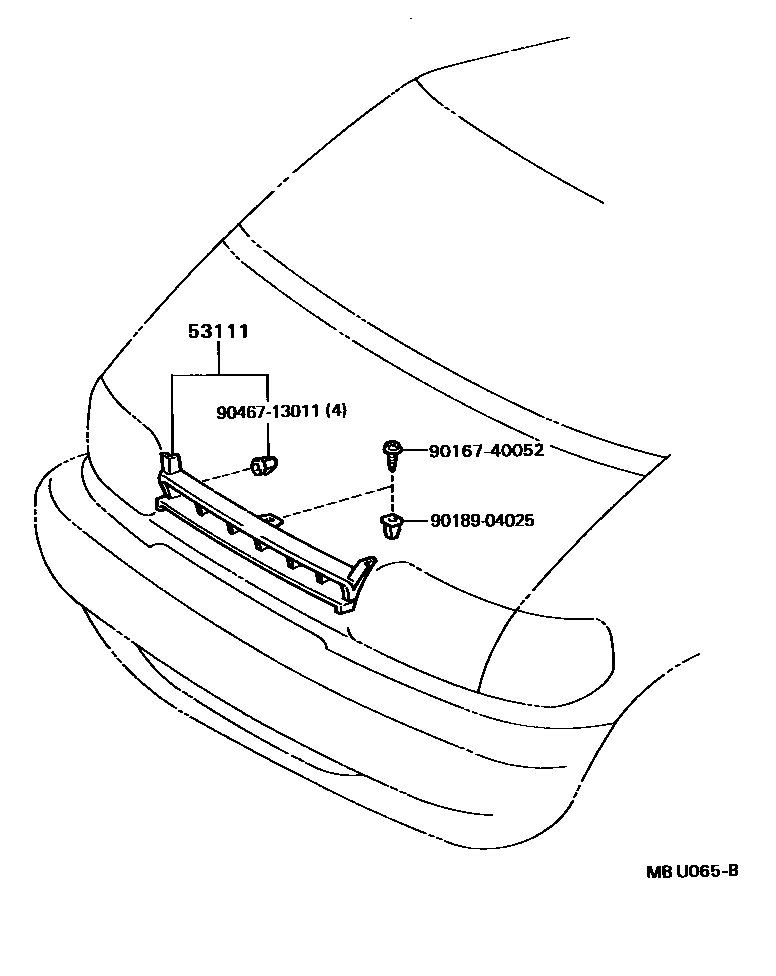

Parts diagram
53111GRILLE, RADIATOR
main53100-95D00-02i199001-199108
DEEP RED MICA,3H8
sub53100-95D01
main53100-95D00-04i199001-199108
LIGHT BLUE M M,8G2
sub53100-95D01
main53100-95D00-05i199001-199108
BEIGE M,4K9
sub53100-95D01
main53100-95D00-06i199001-199108
DARK GRAYISH BROWN M,4L6
sub53100-95D01
main53100-95D00-07i199001-199108
GREENISH SILVER M M,6L3
sub53100-95D01
main53100-95D00-08i199001-199108
WHITE,041
sub53100-95D01
main53100-95D00-14i199001-199108
BLUE M,8H3
sub53100-95D01
main53100-95D00-34i199001-199108
BLUEISH GRAY M,8H5
sub53100-95D01
main53100-95D01-01i199308-199707
WHITE,041
sub53100-95D01
main53100-95D01-02i199001-199308
DEEP RED MICA,3H8
sub53100-95D01
main53100-95D01-04i199001-199308
LIGHT BLUE M M,8G2
sub53100-95D01
main53100-95D01-05i199001-199308
BEIGE M,4K9
sub53100-95D01
main53100-95D01-06i199001-199108
DARK GRAYISH BROWN M,4L6
sub53100-95D01
main53100-95D01-07i199001-199308
GREENISH SILVER M,6L3
sub53100-95D01
main53100-95D01-08i199001-199308
WHITE,041
sub53100-95D01
main53100-95D01-09i199001-199108
PL YELLOW PEARL MICA,568
sub53100-95D01
main53100-95D01-12i199001-199308
SUPER RED MICA,3J7
sub53100-95D01
main53100-95D01-14i199001-199108
BLUE M,8H3
sub53100-95D01
main53100-95D01-18i199001-199308
WARM GRAY PEARL MICA,046
sub53100-95D01
main53100-95D01-24i199108-199308
DARK GREENISH BLUE M,8H4
sub53100-95D01
main53100-95D01-34i199001-199308
BLUEISH GRAY M,8H5
sub53100-95D01
main53100-95D01-37i199308-199707
SUPER RED MICA,3J7
sub53100-95D01
main53100-95D01-38i199308-199608
DEEP RED MICA,3H8
sub53100-95D01
main53100-95D01-49i199308-199707
BEIGE M,4K9
sub53100-95D01
main53100-95D01-B0i199308-199707
WARM GRAY 0P.,193
sub53100-95D01
main53100-95D01-B1i199408-199707
DK BLUISH GRAY MICA,191
sub53100-95D01
main53100-95D01-G0i199308-199408
GREENISH SILVER M,6L3
sub53100-95D01
main53100-95D01-G1i199608-199707
GREEN ME.,6P9
sub53100-95D01
main53100-95D01-H0i199308-199707
DARK TEAL GREEN M.M,751
sub53100-95D01
main53100-95D01-H1i199408-199608
LT.TORQUOISE MM,750
sub53100-95D01
main53100-95D01-J1i199308-199408
DK GREENISH BLUE ME,8H4
sub53100-95D01
main53100-95D01-J2i199308-199408
BLUEISH GRAY ME,8H5
sub53100-95D01
main53100-95D01-J4i199308-199508
LT PURPLISH BLUE M.M,8K2
sub53100-95D01
main53100-95D01-J5i199508-199608
DK.BLUE M.M.,8K0
sub53100-95D01
main53100-95D01-K0i199608-199707
DK.PURPLE MC.,936
sub53100-95D01
9016740052
main90167-40052
9018904025
main90189-04025
9046713011
main90467-13011

4 parts on this diagram · 1 diagram in section
