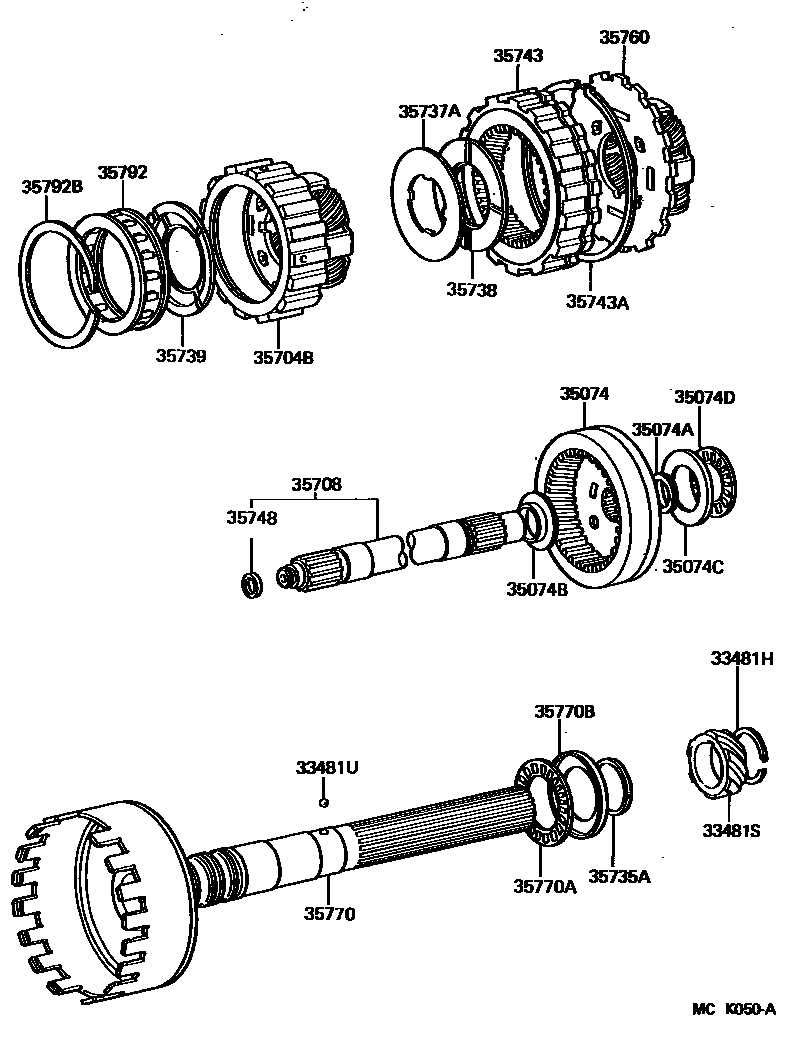

Toyota PREVIA — PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
33481HRING, SHAFT SNAP (FOR ATM SPEEDMETER DRIVE GEAR)
33481SGEAR, SPEEDOMETER DRIVE (ATM)
N=6
N=6
33481UBALL (FOR SPEEDOMETER DRIVE GEAR)
35074GEAR SUB-ASSY, REAR PLANETARY RING
35074ARING, SET (FOR REAR PLANETARY RING GEAR)
35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)
35074CRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR)
35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
35704BGEAR SUB-ASSY, FRONT PLANETARY
35708SHAFT SUB-ASSY, INTERMEDIATE
35735ARING, PLANETARY OUTPUT SHAFT OIL SEAL
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35739WASHER, PLANETARY CARRIER THRUST, NO.3
35743GEAR, FRONT PLANETARY RING
35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
35748RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL
35760GEAR ASSY, REAR PLANETARY
35770ABEARING, THRUST (FOR OUTPUT SHAFT)
35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)
35792CLUTCH, 1 WAY, NO.2
35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
23 parts on this diagram · 2 diagrams in section
