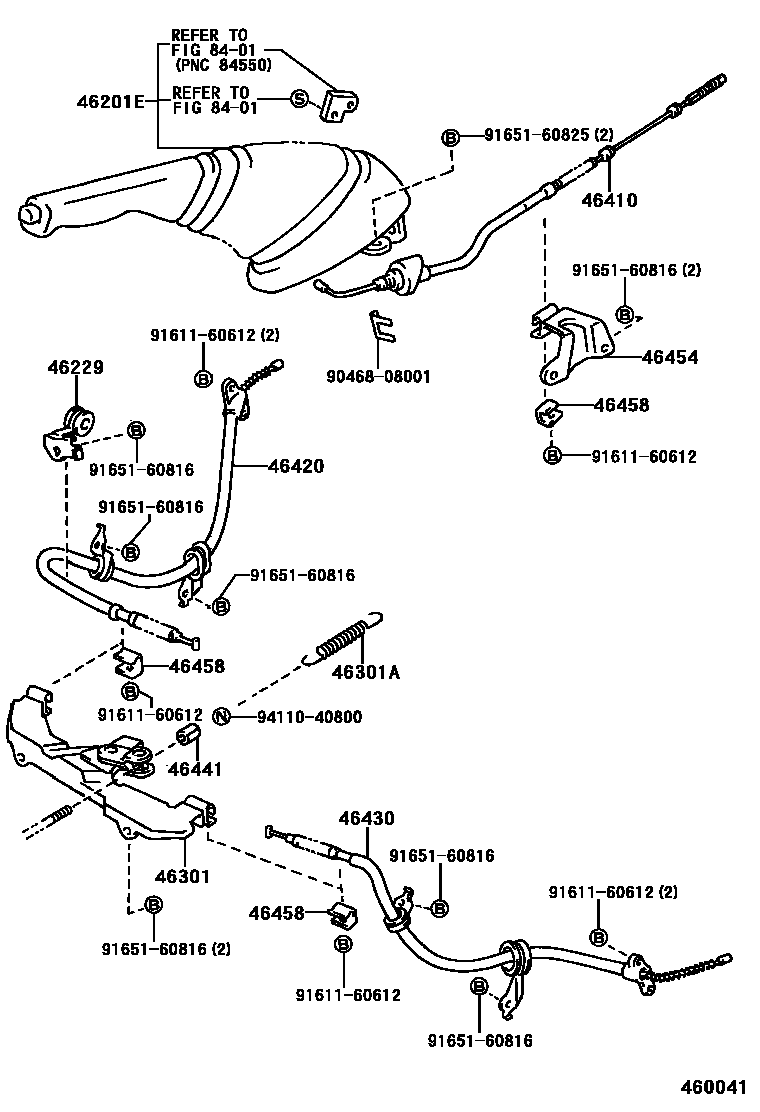

Toyota PREVIA — PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-28090-03iTCR10,20199001-199108

GRAY,TRIM1#

sub46201-28090

main46201-28090-04iTCR10,20199001-199108

BLUE,TRIM8#

sub46201-28090

main46201-28090-06iTCR10,20199001-199108

TAN,TRIM4#

sub46201-28090

main46201-28091-B0iTCR10,20199108-199707

GRAY,TRIM1#

sub46201-28091

main46201-28091-E0iTCR10,20199108-199707

GREIGE,TRIM4#

sub46201-28091

main46201-28091-J0iTCR10,20199108-199408

BLUE,TRIM8#

sub46201-28091

46229SUPPORT, PARKING BRAKE CABLE GUIDE

main46229-28020iTCR10,20199001-199004

main46229-28040iTCR10,20199004-199707

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-28010iTCR10,20199001-199707

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main90507-20025iTCR10,20199001-199707

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-28100iTCR10,20199001-199707

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-28150iTCR10,20199001-199004

main46420-28151iTCR10,20..EFI199004-199608

main46420-28190iTCR10,20..07S199001-199004

W(REAR DISC BRAKE)

main46420-28191iTCR10,20..EFI199004-199608

W(REAR DISC BRAKE)

main46420-28260iTCR10,20..SPC199401-199707

main46420-28390iTCR10,20..SPC199401-199707

W(REAR DISC BRAKE)

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-28150iTCR10,20199001-199707

main46430-28190iTCR10,20199001-199707

W(REAR DISC BRAKE)

46441NUT, WIRE ADJUSTING, NO.1

main46441-30030iTCR10,20199001-199707

46454BRACKET, CABLE RETAINER, FRONT

main46454-28020iTCR10,20199001-199707

46458RETAINER, CABLE

main46458-28010iTCR10,20199001-199707

8401

9046808001

main90468-08001

9161160612

main91611-60612

9165160816

main91651-60816

9165160825

main91651-60825

9411040800

main94110-40800

16 parts on this diagram · 2 diagrams in section
