Toyota PREVIA — PACKAGE TRAY PANEL

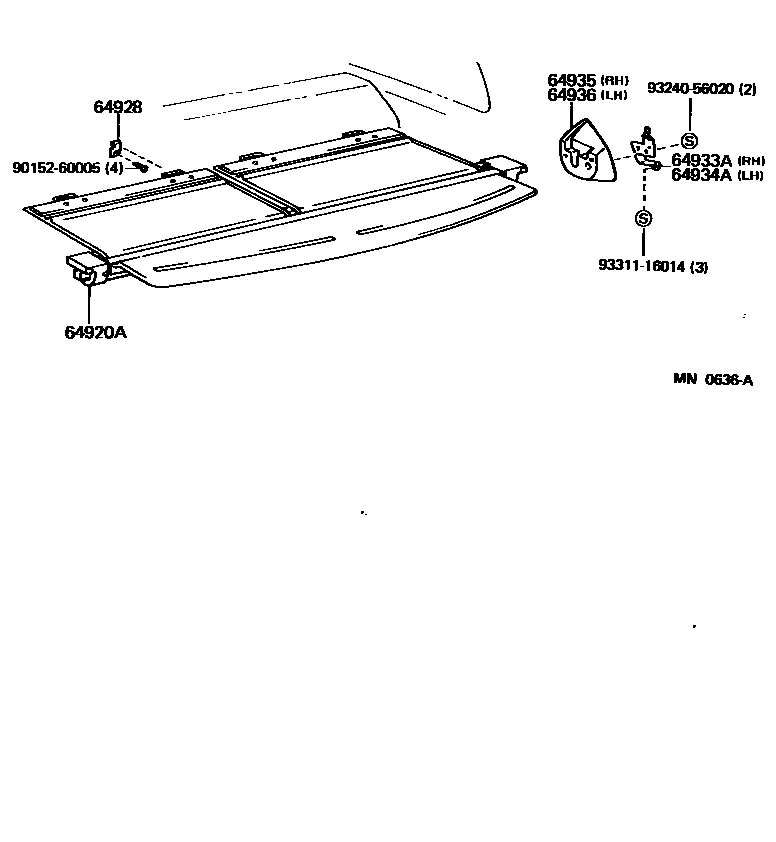

Parts diagram

64920ARETRACTOR ASSY, TONNEAU COVER

main64910-28010-03i199001-199108

GRAY,TRIM1#

main64910-28010-04i199001-199108

BLUE,TRIM8#

main64910-28010-06i199001-199108

TAN,TRIM4#

main64910-28020-03i199108-199308

GRAY,TRIM1#

main64910-28020-05i199108-199308

GREIGE,TRIM4#

main64910-28020-B0i199308-199707

GRAY,TRIM1#

main64910-28020-E1i199308-199707

GREIGE,TRIM4#

main64910-28020-J0i199108-199308

BLUE,TRIM8#

main64910-28020-J1i199308-199408

BLUE,TRIM8#

64928HOLDER, TONNEAU COVER HOOK

main64928-28010-03i199001-199308

GRAY,TRIM1#

main64928-28010-04i199001-199308

BLUE,TRIM8#

main64928-28010-05i199108-199308

GREIGE,TRIM4#

main64928-28010-06i199001-199108

TAN,TRIM4#

main64928-28010-B0i199308-199707

GRAY,TRIM1#

main64928-28010-E2i199308-199707

GREIGE,TRIM4#

main64928-28010-R9i199308-199408

BLUE,TRIM8#

64933ABRACKET, TONNEAU COVER HOLDER, RH

main64933-28010i199001-199707

64934ABRACKET, TONNEAU COVER HOLDER, LH

main64934-28010i199001-199707

64935HOLDER, TONNEAU COVER, RH

main64935-28010-03i199001-199308

GRAY,TRIM1#

main64935-28010-04i199001-199308

BLUE,TRIM8#

main64935-28010-05i199108-199308

GREIGE,TRIM4#

main64935-28010-06i199001-199108

TAN,TRIM4#

main64935-28010-B0i199308-199707

GRAY,TRIM1#

main64935-28010-E2i199308-199707

GREIGE,TRIM4#

main64935-28010-R9i199308-199408

BLUE,TRIM8#

64936HOLDER, TONNEAU COVER, LH

main64936-28010-03i199001-199308

GRAY,TRIM1#

main64936-28010-04i199001-199308

BLUE,TRIM8#

main64936-28010-05i199108-199308

GREIGE,TRIM4#

main64936-28010-06i199001-199108

TAN,TRIM4#

main64936-28010-B0i199308-199707

GRAY,TRIM1#

main64936-28010-E2i199308-199707

GREIGE,TRIM4#

main64936-28010-R9i199308-199408

BLUE,TRIM8#

9015260005

main90152-60005

9324056020

main93240-56020

9331116014

main93311-16014

9 parts on this diagram · 1 diagram in section
