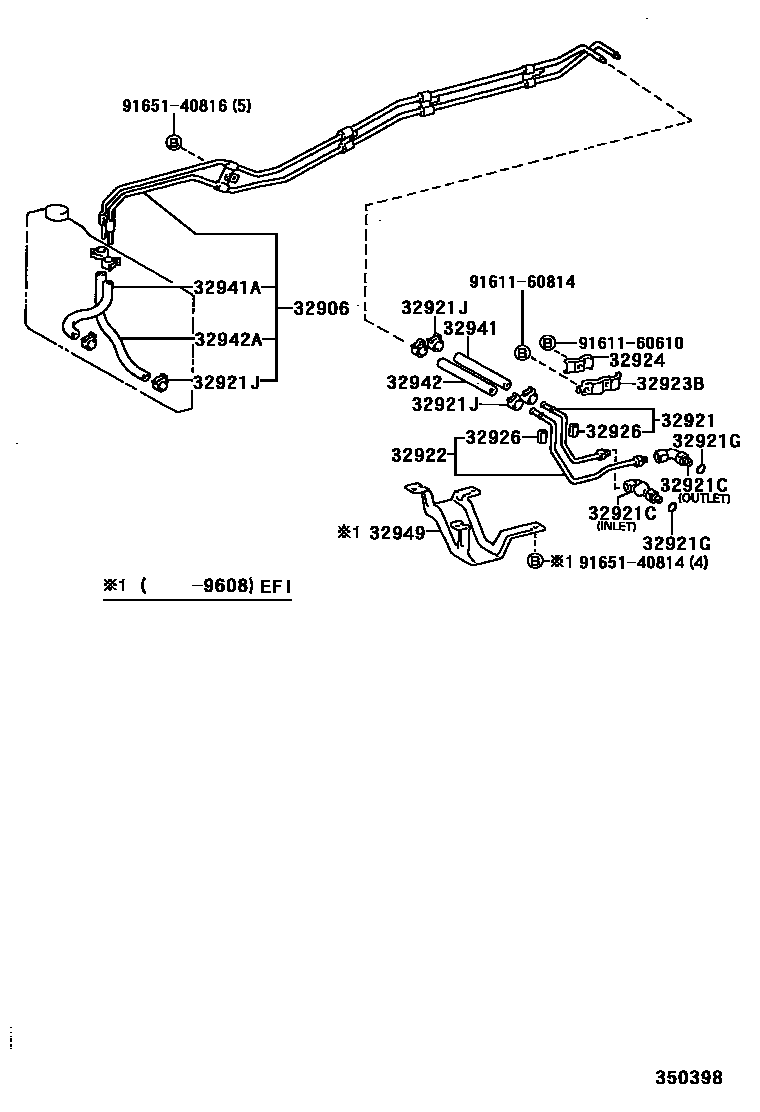

Toyota PREVIA — OIL COOLER & TUBE (ATM)

32906TUBE SUB-ASSY, OIL COOLER

main32906-28010iTCR10,20..ATM199001-199707

32921TUBE, OIL COOLER INLET, NO.1

main32921-28100iTCR10..ATM..EFI199001-199608

main32921-28110iTCR20..ATM..EFI199001-199508

main32921-28150iTCR10..SPC199401-199503

main32921-28160iTCR20..SPC199401-199707

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021iTCR10..EFI199311-199608

INLET

main90404-16027iTCR10..ATM199001-199311

INLET

sub90404-16021

main90407-14024iTCR10,20..SPC199503-199707

OUTLET

main90407-16009iTCR10,20..SPC199401-199707

INLET

main90407-16010iTCR10,20..EFI199311-199608

OUTLET

main90407-16012iTCR10..SPC199401-199503

OUTLET

main90407-16019iTCR20..EFI199311-199508

INLET

main90407-16021iTCR10,20..ATM199001-199311

OUTLET

sub90407-16010

main90407-16022iTCR20..ATM199001-199311

INLET

sub90407-16019

main90407-16023iTCR20..SPC199401-199503

OUTLET

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iTCR10,20..ATM..EFI199001-199608

main90301-11006iTCR10,20..SPC199401-199707

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013iTCR10,20..ATM199001-199707

sub90467-16022

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-28100iTCR10,20..ATM..EFI199001-199608

main32922-28140iTCR10,20..SPC199401-199707

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-28070iTCR10,20..ATM..EFI199001-199608

main32923-28100iTCR10,20..SPC199401-199707

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-12074iTCR10,20..ATM199001-199707

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020iTCR10,20..ATM199001-199707

L=35,ID=10

32941HOSE, OIL COOLER INLET, NO.1

main32941-28170iTCR10,20..ATM199001-199707

32941AHOSE, OIL COOLER INLET, NO.2

main32941-28190iTCR10,20..ATM199001-199707

32942HOSE, OIL COOLER OUTLET, NO.1

main32941-28170iTCR10,20..ATM199001-199707

32942AHOSE, OIL COOLER OUTLET, NO.2

main32942-28170iTCR10,20..ATM199001-199707

32949INSULATOR, OIL COOLER HOSE HEAT

main32949-28010iTCR10,20..ATM..EFI199001-199608

9161160610

main91611-60610

9161160814

main91611-60814

9165140814

main91651-40814

9165140816

main91651-40816

18 parts on this diagram · 1 diagram in section
