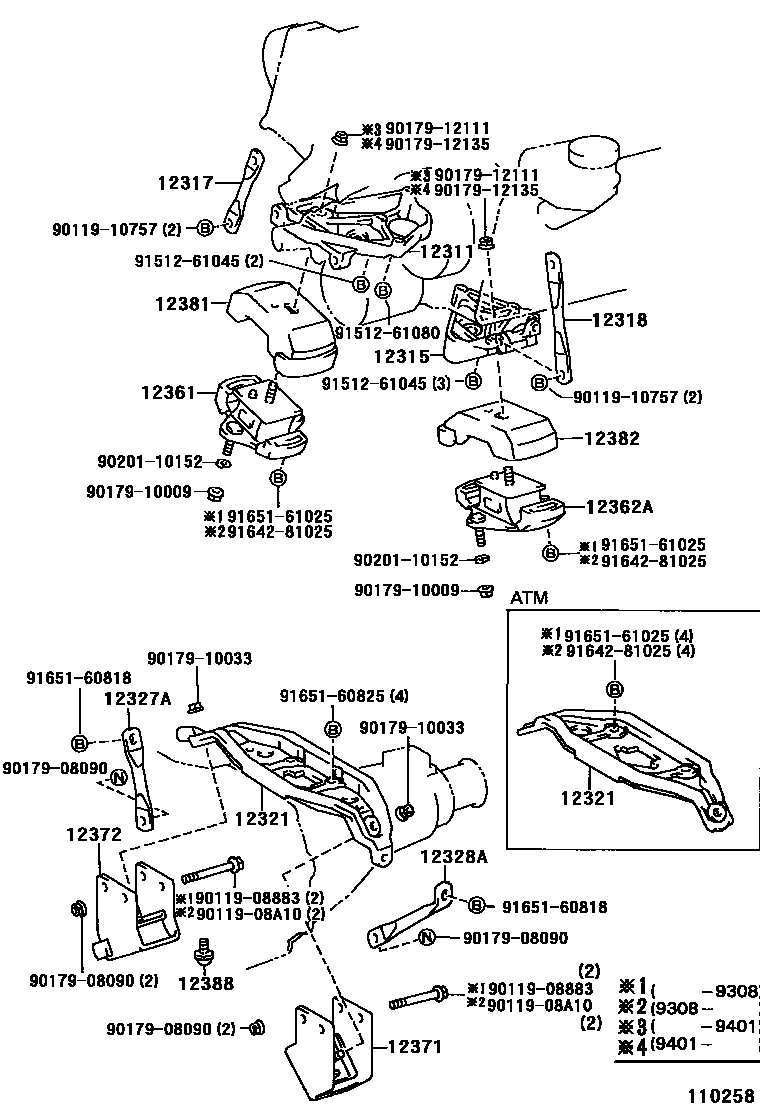

Toyota PREVIA — MOUNTING
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12317STAY, ENGINE MOUNTING, RH
12318STAY, ENGINE MOUNTING, LH
12321BRACKET, ENGINE MOUNTING, REAR, NO.1
12327ASTAY, ENGINE MOUNTING, NO.2 RH
12328ASTAY, ENGINE MOUNTING, NO.2 LH
12381STABILIZER, ENGINE MOUNTING
12382STABILIZER, ENGINE MOUNTING, LH
12388STOPPER, ENGINE MOUNTING BRACKET, REAR
9011908883
main90119-08883
9011908A10
main90119-08A10
9011910757
main90119-10757
9017908090
main90179-08090
9017910009
main90179-10009
9017910033
main90179-10033
9017912111
main90179-12111
9017912135
main90179-12135
9020110152
main90201-10152
9151261045
main91512-61045
9151261080
main91512-61080
9164281025
main91642-81025
9165160818
main91651-60818
9165160825
main91651-60825
9165161025
main91651-61025
29 parts on this diagram · 2 diagrams in section
