Toyota PREVIA — MIRROR

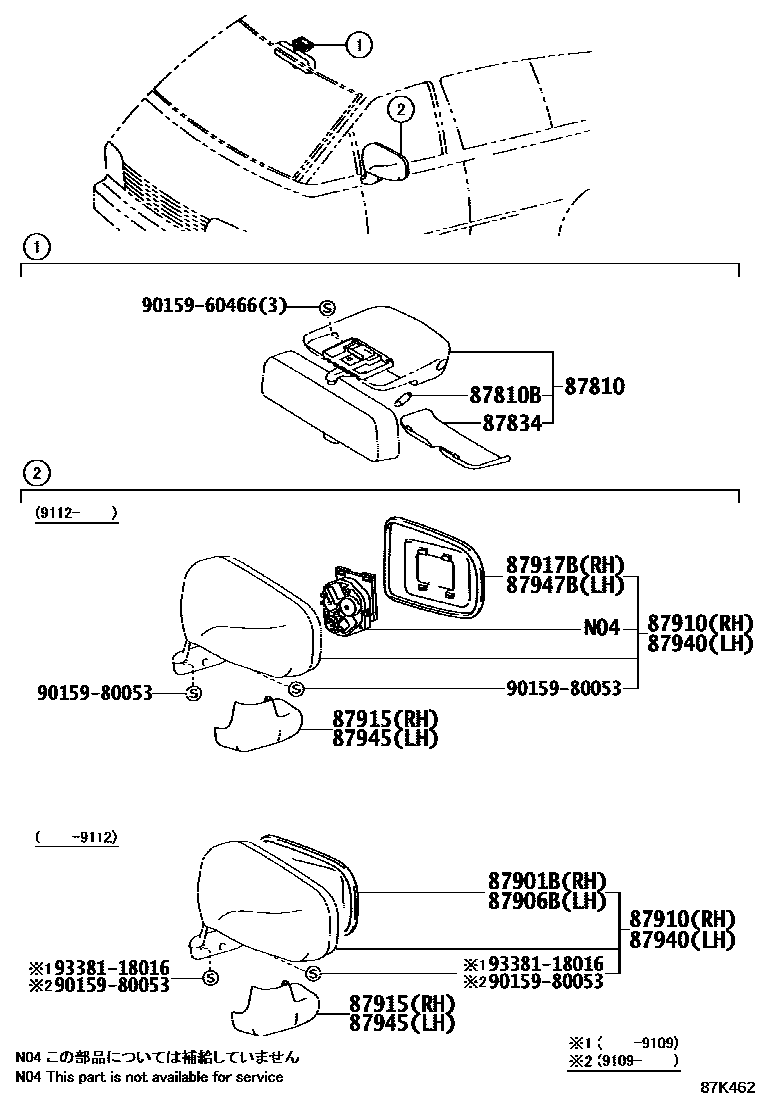

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-95D04-03i199001-199108
LIGHT GRAY,TRIM1#
sub87810-95D04
main87810-95D04-04i199001-199108
LIGHT BLUE,TRIM8#
sub87810-95D04
main87810-95D04-06i199001-199108
LIGHT TAN,TRIM4#
sub87810-95D04
main87810-95D05-03i199001-199308
W(CLOCK),LIGHT GRAY,TRIM1#
sub87810-95D05
main87810-95D05-04i199001-199408
W(CLOCK),LIGHT BLUE,TRIM8#
sub87810-95D05
main87810-95D05-04i199401-199408
LIGHT BLUE,TRIM8#
sub87810-95D05
main87810-95D05-06i199001-199108
W(CLOCK),LIGHT TAN,TRIM4#
sub87810-95D05
main87810-95D05-06i199001-199008
LIGHT TAN,TRIM4#
sub87810-95D05
main87810-95D05-B1i199401-199707
BLUISH GRAY,TRIM1#
sub87810-95D05
main87810-95D05-B1i199308-199608
W(CLOCK),BLUISH GRAY,TRIM1#
sub87810-95D05
main87810-95D05-E0i199108-199308
LIGHT GREIGE,TRIM4#
sub87810-95D05
main87810-95D05-E2i199308-199608
W(CLOCK),MD.GREIGE,TRIM4#
sub87810-95D05
main87810-95D05-E2i199401-199707
MD.GREIGE,TRIM4#
sub87810-95D05
87810BBULB, INNER REAR VIEW MIRROR LAMP
main99132-12100i199001-199707
12V 10W
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main81241-87001i199001-199108
main81241-95D00i199001-199508
W(CLOCK)
main81241-95D00i199001-199707
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87908-95D01i199001-199112
MANUAL TYPE
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87909-95D03i199001-199112
MANUAL TYPE
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-28060-01i199302-199308
CHINA SPEC,BLACK,041 ,046 ,3H8 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
sub87910-28060
main87910-28270i199112-199707
main87910-28290i199112-199608
ELECTRIC REMOTE
main87910-28292-C0i199608-199707
BLACK,041 ,191 ,193 ,3J7 ,4K9 ,6P9 ,751 ,936
main87910-28292-C0i199608-199707
ELECTRIC REMOTE,BLACK,041 ,191 ,193 ,3J7 ,4K9 ,6P9 ,751 ,936
main87910-95D01-01i199108-199112
BLACK,041 ,046 ,3H8 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
sub87910-28270
main87910-95D01-01i199001-199108
BLACK,041 ,046 ,3H8 ,3J7 ,4K9 ,4L6 ,568 ,6L3 ,8G2 ,8H3 ,8H5
sub87910-28270
main87910-95D01-01i199001-199108
BLACK,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5
sub87910-28270
main87910-95D01-01i199108-199112
BLACK,041 ,3H8 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
sub87910-28270
main87910-95D02-01i199108-199112
ELECTRIC REMOTE,BLACK,041 ,3H8 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
sub87910-28290
main87910-95D02-01i199108-199112
ELECTRIC REMOTE,BLACK,041 ,046 ,3H8 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
sub87910-28290
main87910-95D02-01i199001-199108
ELECTRIC REMOTE,BLACK,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5
sub87910-28290
main87910-95D02-01i199001-199108
ELECTRIC REMOTE,BLACK,041 ,046 ,3H8 ,3J7 ,4K9 ,4L6 ,568 ,6L3 ,8G2 ,8H3 ,8H5
sub87910-28290
87915COVER, OUTER MIRROR, RH
main87915-28010-01i199302-199308
CHINA SPEC,BLACK,041 ,046 ,3H8 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
sub87915-28010
main87915-95D00-01i199001-199108
BLACK,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5
sub87915-95D00
main87915-95D00-01i199001-199108
BLACK,041 ,046 ,3H8 ,3J7 ,4K9 ,4L6 ,568 ,6L3 ,8G2 ,8H3 ,8H5
sub87915-95D00
main87915-95D00-01i199108-199308
BLACK,041 ,046 ,3H8 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
sub87915-95D00
main87915-95D00-01i199108-199308
BLACK,041 ,3H8 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
sub87915-95D00
main87915-95D00-C0i199408-199508
BLACK,041 ,191 ,3H8 ,4K9 ,750 ,751 ,8K2
sub87915-95D00
main87915-95D00-C0i199308-199408
BLACK,041 ,193 ,3H8 ,3J7 ,4K9 ,6L3 ,751 ,8H4 ,8H5 ,8K2
sub87915-95D00
main87915-95D00-C0i199308-199408
BLACK,041 ,3H8 ,4K9 ,6L3 ,751 ,8H4 ,8H5 ,8K2
sub87915-95D00
main87915-95D00-C0i199408-199508
BLACK,041 ,191 ,193 ,3H8 ,3J7 ,4K9 ,750 ,751 ,8K2
sub87915-95D00
main87915-95D00-C0i199508-199608
BLACK,041 ,191 ,193 ,3H8 ,3J7 ,4K9 ,750 ,751 ,8K0
sub87915-95D00
main87915-95D00-C0i199608-199707
BLACK,041 ,191 ,193 ,3J7 ,4K9 ,6P9 ,751 ,936
sub87915-95D00
87917BMIRROR, OUTER REAR VIEW, RH
main87917-28060i199302-199308
CHINA SPEC
main87917-95D03i199112-199707
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-28060-01i199302-199308
CHINA SPEC,BLACK,041 ,046 ,3H8 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
sub87940-28060
main87940-28270i199112-199707
main87940-28290i199112-199608
ELECTRIC REMOTE
main87940-28292-C0i199608-199707
BLACK,041 ,191 ,193 ,3J7 ,4K9 ,6P9 ,751 ,936
main87940-28292-C0i199608-199707
ELECTRIC REMOTE,BLACK,041 ,191 ,193 ,3J7 ,4K9 ,6P9 ,751 ,936
main87940-95D03-01i199108-199112
BLACK,041 ,046 ,3H8 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
sub87940-28270
main87940-95D03-01i199001-199108
BLACK,041 ,046 ,3H8 ,3J7 ,4K9 ,4L6 ,568 ,6L3 ,8G2 ,8H3 ,8H5
sub87940-28270
main87940-95D03-01i199001-199108
BLACK,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5
sub87940-28270
main87940-95D03-01i199108-199112
BLACK,041 ,3H8 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
sub87940-28270
main87940-95D04-01i199108-199112
ELECTRIC REMOTE,BLACK,041 ,046 ,3H8 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
sub87940-28290
main87940-95D04-01i199108-199112
ELECTRIC REMOTE,BLACK,041 ,3H8 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
sub87940-28290
main87940-95D04-01i199001-199108
ELECTRIC REMOTE,BLACK,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5
sub87940-28290
main87940-95D04-01i199001-199108
ELECTRIC REMOTE,BLACK,041 ,046 ,3H8 ,3J7 ,4K9 ,4L6 ,568 ,6L3 ,8G2 ,8H3 ,8H5
sub87940-28290
87945COVER, OUTER MIRROR, LH
main87945-28010-01i199302-199308
CHINA SPEC,BLACK,041 ,046 ,3H8 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
sub87945-28010
main87945-95D00-01i199001-199108
BLACK,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5
sub87945-95D00
main87945-95D00-01i199001-199108
BLACK,041 ,046 ,3H8 ,3J7 ,4K9 ,4L6 ,568 ,6L3 ,8G2 ,8H3 ,8H5
sub87945-95D00
main87945-95D00-01i199108-199308
BLACK,041 ,046 ,3H8 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
sub87945-95D00
main87945-95D00-01i199108-199308
BLACK,041 ,3H8 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
sub87945-95D00
main87945-95D00-C0i199308-199408
BLACK,041 ,193 ,3H8 ,3J7 ,4K9 ,6L3 ,751 ,8H4 ,8H5 ,8K2
sub87945-95D00
main87945-95D00-C0i199308-199408
BLACK,041 ,3H8 ,4K9 ,6L3 ,751 ,8H4 ,8H5 ,8K2
sub87945-95D00
main87945-95D00-C0i199408-199508
BLACK,041 ,191 ,3H8 ,4K9 ,750 ,751 ,8K2
sub87945-95D00
main87945-95D00-C0i199408-199508
BLACK,041 ,191 ,193 ,3H8 ,3J7 ,4K9 ,750 ,751 ,8K2
sub87945-95D00
main87945-95D00-C0i199508-199608
BLACK,041 ,191 ,193 ,3H8 ,3J7 ,4K9 ,750 ,751 ,8K0
sub87945-95D00
main87945-95D00-C0i199608-199707
BLACK,041 ,191 ,193 ,3J7 ,4K9 ,6P9 ,751 ,936
sub87945-95D00
87947BMIRROR, OUTER REAR VIEW, LH
main87947-28060i199302-199308
CHINA SPEC
main87947-28290i199112-199308
W(*DRC)
sub87947-95D01
main87947-95D01i199112-199707
9015960466
main90159-60466
9015980053
main90159-80053
9338118016
main93381-18016

14 parts on this diagram · 1 diagram in section
