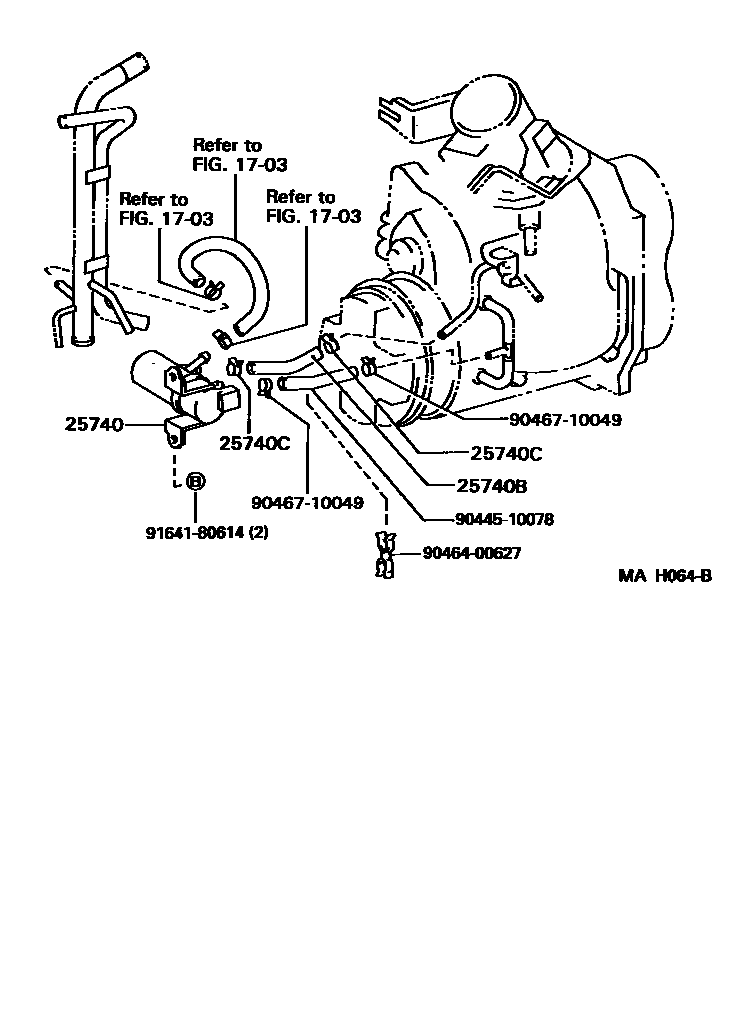

Toyota PREVIA — MANIFOLD AIR INJECTION SYSTEM

1703

25740VALVE ASSY, AIR CONTROL

main25740-76010i2TZFZE..TCR10,20199401-199707

25740BHOSE(FOR AIR CONTROL VALVE ASSY)

main90445-10070i2TZFZE..TCR10,20199401-199707

25740CCLIP(FOR AIR CONTROL VALVE ASSY)

main90467-10049i2TZFZE..TCR10,20199401-199707

sub90467-10149

9044510078

main90445-10078

9046400627

main90464-00627

9046710049

main90467-10049

9164180614

main91641-80614

8 parts on this diagram · 1 diagram in section
