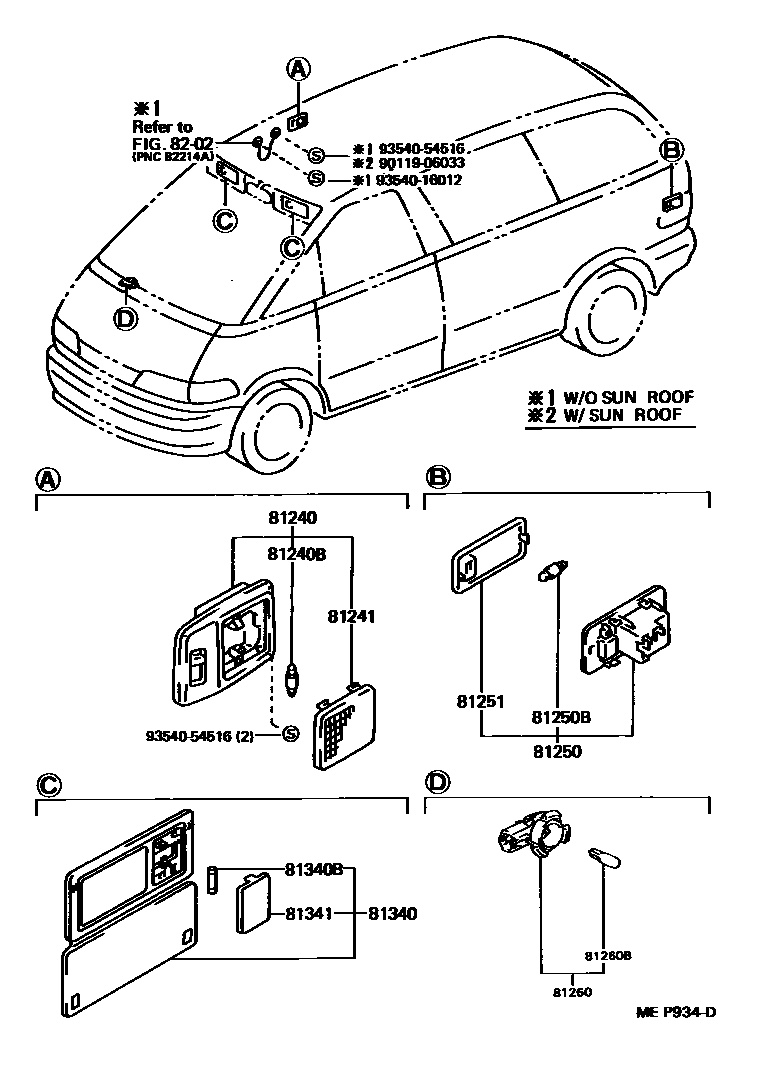

Toyota PREVIA — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-95D01-03iTCR10,20199001-199308

LIGHT GRAY,TRIM1#

sub81240-95D01

main81240-95D01-04iTCR10,20199001-199408

LIGHT BLUE,TRIM8#

sub81240-95D01

main81240-95D01-05iTCR10,20199108-199308

LIGHT GRAIGE,TRIM4#

sub81240-95D01

main81240-95D01-06iTCR10,20199001-199108

LIGHT TAN,TRIM4#

sub81240-95D01

main81240-95D01-B8iTCR10,20199308-199707

LIGHT GRAY,TRIM1#

sub81240-95D01

main81240-95D01-L1iTCR10,20199308-199707

LIGHT GRAIGE,TRIM4#

sub81240-95D01

81240BBULB, ROOM LAMP, NO.1

main99132-12100iTCR10,20199001-199707

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-30100iTCR10,20199001-199707

81250LAMP ASSY, ROOM, NO.2

main81250-12030-13iTCR10,20199001-199308

GRAY,TRIM1#

sub81250-12030

sub81250-95J05

main81250-12030-B1iTCR10,20199308-199707

BLUISH GRAY,TRIM1#

sub81250-12030

sub81250-95J05

main81250-12030-E2iTCR10,20199108-199707

LIGHT GRAIGE,TRIM4#

sub81250-12030

sub81250-95J05

main81250-12030-E9iTCR10,20199001-199108

LIGHT TAN,TRIM4#

sub81250-12030

sub81250-95J05

main81250-12030-R9iTCR10,20199001-199408

LIGHT BLUE,TRIM8#

sub81250-12030

sub81250-95J05

81250BBULB, ROOM LAMP, NO.2

main99132-13050iTCR10,20199001-199707

12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-12030iTCR10,20199001-199707

81260LAMP ASSY, GLOVE BOX

main81260-32071iTCR10,20199308-199707

81260BBULB(FOR GLOVE BOX)

main90981-11018iTCR10,20199308-199707

12V 1.2W W/O SOCKET

81340LAMP ASSY, VANITY

main81340-28031-B0iTCR10,20..07S199308-199408

GRAY,TRIM1#

sub81340-28031

main81340-28031-E0iTCR10,20..07S199308-199408

GREIGE,TRIM4#

sub81340-28031

main81340-28031-J0iTCR10,20..07S199308-199408

BLUE,TRIM8#

sub81340-28031

main81340-28032-B0iTCR10,20..07S199408-199608

LT.GRAY,TRIM1#

main81340-28032-E0iTCR10,20..07S199408-199608

LT.GREIGE,TRIM4#

main81340-28033-B0iTCR10,20..07S199608-199707

LT.GRAY,TRIM1#

main81340-28033-E0iTCR10,20..07S..CND199608-199707

LT.GREIGE,TRIM4#

main81340-95D00-03iTCR10,20..07S199108-199308

LIGHT GRAY,TRIM1#

sub81340-95D00

sub81340-20030

main81340-95D00-05iTCR10,20..07S199108-199308

LIGHT GREIGE,TRIM4#

sub81340-95D00

sub81340-20030

main81340-95D00-J0iTCR10,20..07S199108-199308

LIGHT BLUE,TRIM8#

sub81340-95D00

sub81340-20030

81340BBULB (FOR VANITY LAMP)

main90981-14007iTCR10,20..07S199108-199707

12V 3W

81341LENS, VANITY LAMP

main81341-95D00iTCR20..07S;TCR10..07S..USA199108-199707

8202

9011906033

main90119-06033

9354016012

main93540-16012

9354054516

main93540-54516

15 parts on this diagram · 1 diagram in section
