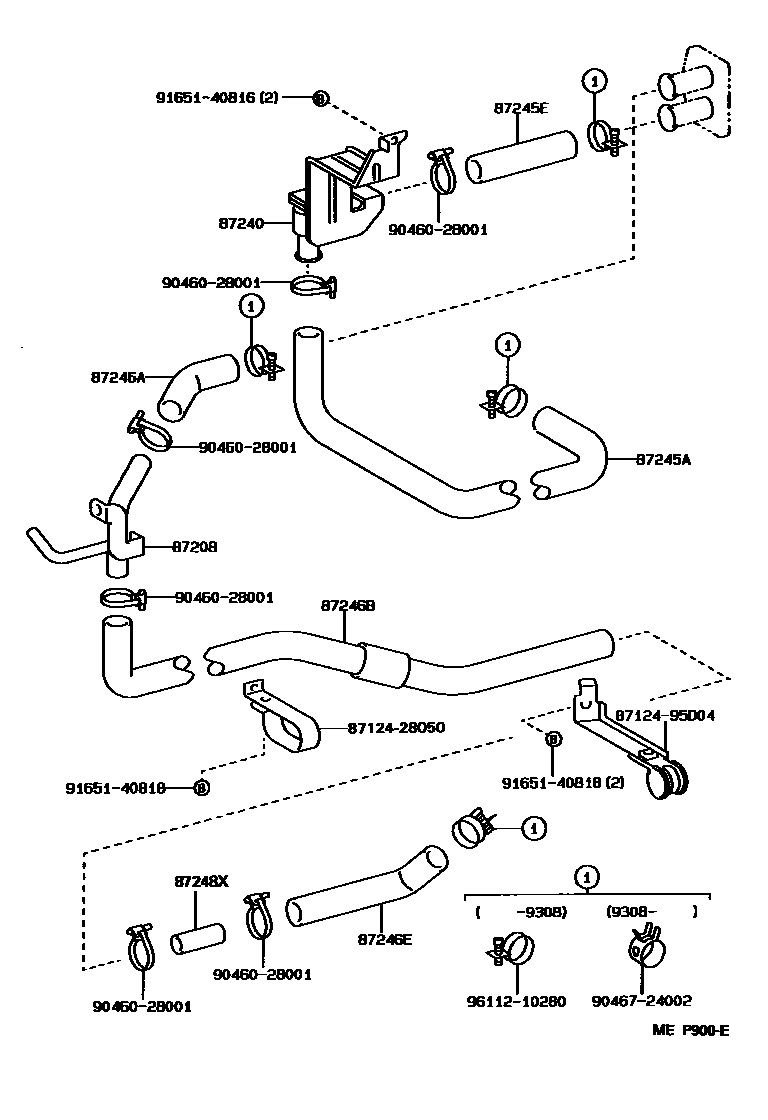

Toyota PREVIA — HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87208PIPE SUB-ASSY, HEATER WATER

main87208-28510iTCR10,20..SPC199401-199707

main87208-95D27iTCR10,20..EFI199001-199608

87240VALVE ASSY, HEATER WATER

main87240-28060iTCR10,20..SPC199401-199707

main87240-95D01iTCR10,20..EFI199001-199608

87245AHOSE, HEATER WATER, INLET A

main87245-28430iTCR10,20..SPC199401-199707

main87245-95D18iTCR10,20..EFI199001-199608

87245EHOSE, HEATER WATER, INLET E

main87245-28420iTCR10,20..SPC199401-199707

main87245-95D17iTCR10,20..EFI199001-199608

87246AHOSE, HEATER WATER, OUTLET A

main87245-28410iTCR10,20..SPC199401-199707

main87245-95D20iTCR10,20..EFI199001-199608

87246BHOSE, HEATER WATER, OUTLET B

main87245-95D22iTCR10,20..EFI199001-199608

L=710

87246EHOSE, HEATER WATER, OUTLET E

main87245-28190iTCR10,20..SPC199401-199707

main87245-95D31iTCR10,20..EFI199001-199608

87248XPIPE, HEATER WATER

main87248-28020iTCR10,20..EFI199001-199608

8712428050CLAMP, HEATER

main87124-28050

8712495D04CLAMP, HEATER

main87124-95D04

9046028001

main90460-28001

9046724002

main90467-24002

9165140816

main91651-40816

9165140818

main91651-40818

9611210280

main96112-10280

15 parts on this diagram · 2 diagrams in section
