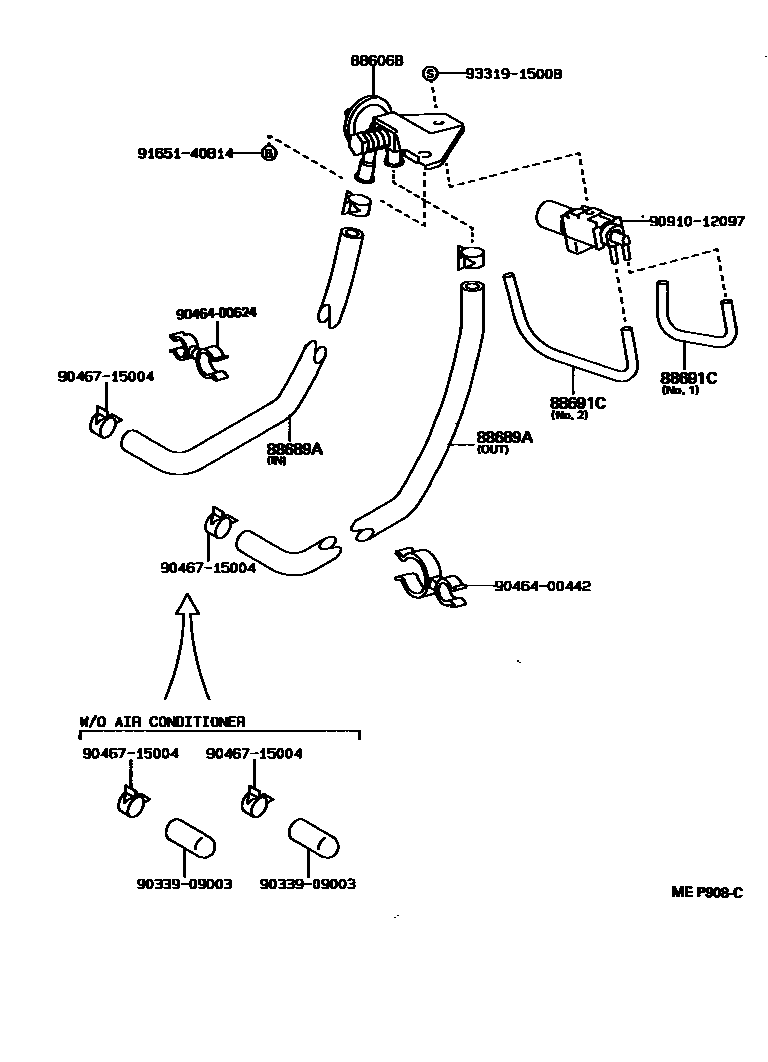

Toyota PREVIA — HEATING & AIR CONDITIONING - VACUUM PIPING

88606BDIAPHRAGM SUB-ASSY, COOLER

main88606-28020iTCR10,20..EFI199001-199608

88689AHOSE, COOLER VACUUM NO.1

main88689-28010iTCR10,20..EFI199001-199608

IN

main88689-28020iTCR10,20..EFI199001-199608

OUT

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main90999-92002iTCR10,20199001-199608

*H,L=80,MARK=#0,NO.1,NO.2

main90999-92002iTCR10,20199001-199308

*H,L=120,MARK=#*

main90999-92002iTCR10,20..EFI199308-199511

*H,L=80,MARK=#0

9033909003

main90339-09003

9046400442

main90464-00442

9046400624

main90464-00624

9046715004

main90467-15004

9091012097

main90910-12097

9165140814

main91651-40814

9331915008

main93319-15008

10 parts on this diagram · 1 diagram in section
