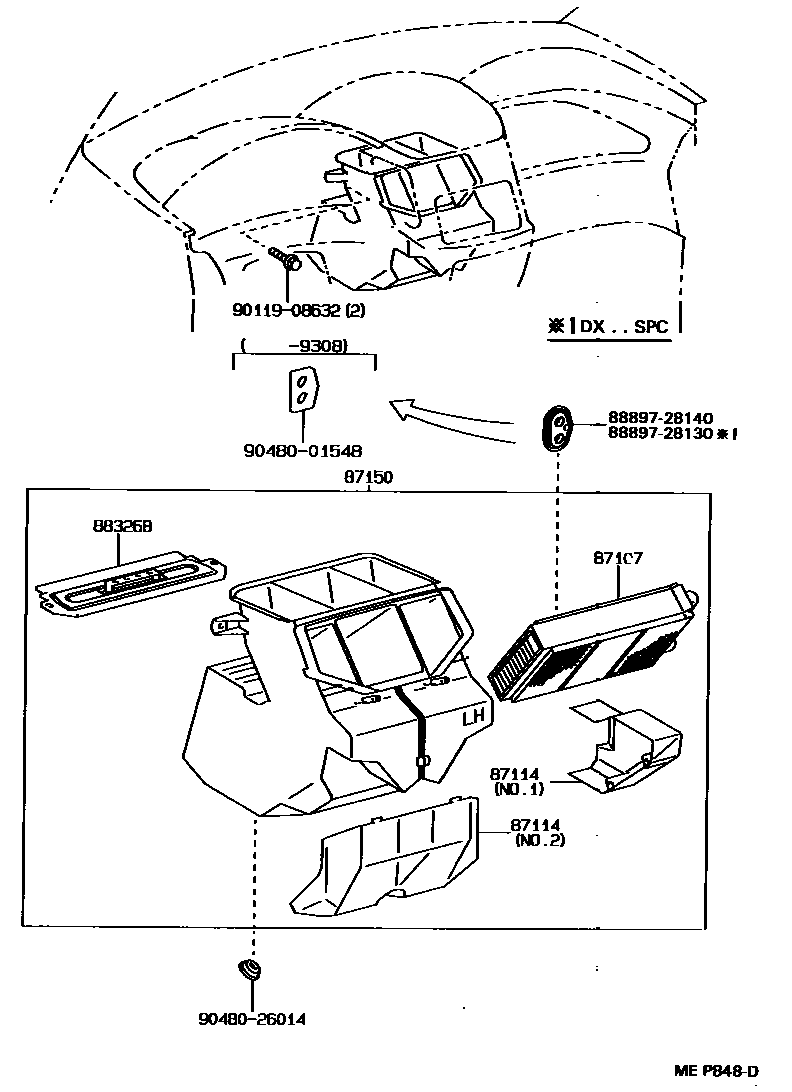

Toyota PREVIA — HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-28130iTCR10,20..CND;TCR10,20..05S..USA199308-199707

main87107-95D02iTCR10,20..CND;TCR10,20..05S..USA199001-199308

COLD SPEC

main87107-95D03iTCR10,20..USA199001-199108

sub87107-95D02

87114COVER, HEATER

main87114-95D00iTCR10,20..CND;TCR10,20..05S..USA199001-199308

NO.1

main87114-95D00iTCR10,20..CND;TCR10,20..05S..USA199108-199308

COLD SPEC,NO.1

main87114-95D00iTCR10,20..CND;TCR10,20..05S..USA199308-199707

NO.2

main87114-95D04iTCR10,20..CND199001-199308

NO.2

main87114-95D04iTCR10,20..CND199001-199308

COLD SPEC,NO.2

main87114-95D04iTCR10,20..CND;TCR10,20..05S..USA199308-199707

NO.1

87150RADIATOR ASSY, HEATER

main87150-28320iTCR10,20..05S199308-199707

main87150-95D10iTCR10,20..CND199001-199308

COLD SPEC

main87150-95D11iTCR10,20..USA199001-199108

sub87150-95D10

88326BPLATE, COVER

main88326-95D00iTCR10,20..05S199001-199707

main88326-95D00iTCR10,20..07S..USA199108-199308

COLD SPEC

8889728130VALVE, COOLER MAGNET

main88897-28130

8889728140VALVE, COOLER MAGNET

main88897-28140

9011908632

main90119-08632

9048001548

main90480-01548

9048026014

main90480-26014

9 parts on this diagram · 2 diagrams in section
