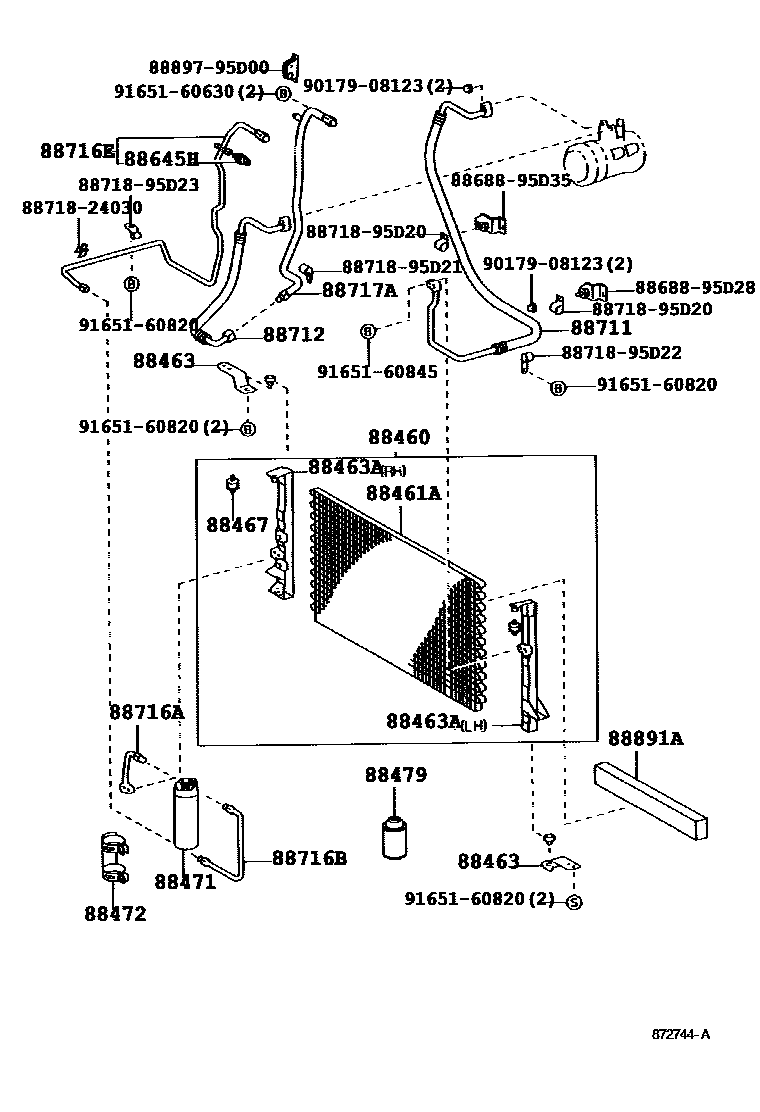

Toyota PREVIA — HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1W(COOL BOX) 0003 1 0004 1W(COOL BOX) 0005 1 0006 1W(COOL BOX) 0007 1 0008 1W/O(COOL BOX) 0009 1W(COOL BOX) 0010 1 0011 1W/O(COOL BOX) 0012 1W(COOL BOX) 0013 1W/O(COOL BOX) 0014 1W(COOL BOX) 0015 1

88460CONDENSER ASSY, COOLER

main88460-28030iTCR10,20..CND199001-199303

SINGLE TYPE---DEALER OPT

main88460-28220iTCR10,20199308-199707

main88460-28260iTCR10,20..CND199303-199308

SINGLE TYPE---DEALER OPT

main88460-95D08iTCR10,20199001-199308

88461ACORE, COOLER CONDENSER

main88461-28080iTCR10,20199303-199308

main88461-95D04iTCR10,20199001-199303

88463BRACKET, COOLER CONDENSER, NO.1

main88463-28240iTCR10,20199308-199707

main88463-95D16iTCR10,20199001-199308

88463ABRACKET, COOLER CONDENSER, NO.2

main88463-95D13iTCR10,20199001-199308

RH

main88463-95D14iTCR10,20199001-199308

LH

main88463-95D15iTCR10,20199001-199308

sub88463-28060

88467CUSHION, COOLER CONDENSER, NO.1

main88467-28010iTCR10,20199108-199308

main88467-89103iTCR10,20199010-199108

sub88467-28010

88471TANK, RECEIVER AIR CONDITIONER

main88471-28030iTCR10,20..CND199001-199002

W(F/DOP)

main88471-28030iTCR10,20199002-199308

main88471-28070iTCR10,20199308-199707

main88471-95J00iTCR10,20199001-199002

W(CAP CAUTION PLATE)

88472BRACKET, RECEIVER TANK, NO.1

main88472-28030iTCR10,20199308-199707

main88472-95D03iTCR10,20199001-199308

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02004iTCR10,20..CND199001-199308

250G

main90986-02008iTCR10..05S..CND199508-199707

200G

88645HSWITCH, PRESSURE NO.1

main88645-20050iTCR10,20..SPC199401-199707

main88645-30281iTCR10,20199001-199308

main88645-34010iTCR10,20..EFI199308-199608

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-28290iTCR10,20199303-199308

main88711-28290iTCR10,20199202-199303

NO.1

main88711-28300iTCR10,20..EFI199308-199608

main88711-28310iTCR10,20..SPC199401-199707

main88711-95D13iTCR10,20..CND199202-199303

NO.2

sub88711-28290

main88711-95D13iTCR10,20199001-199202

sub88711-28290

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-28170iTCR10,20..EFI199308-199608

main88712-28190iTCR10,20..SPC199401-199707

main88712-95D04iTCR10,20199001-199308

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-2J040iTCR10,20199308-199707

main88716-2J520iTCR10,20199303-199308

main88716-95D25iTCR10,20199001-199303

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-2J050iTCR10,20199308-199707

main88716-95D26iTCR10,20199001-199308

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-28200iTCR10,20..CND199001-199004

SINGLE (DOP)

main88716-28200iTCR10,20..CND;TCR10,20..05S..USA199004-199308

SINGLE AIR CONDITIONER

main88716-28210iTCR10,20199004-199308

DUAL AIR CONDITIONER

main88716-28220iTCR10,20..07S..USA199004-199308

W(COOL BOX & SINGLE AIR CONDITIONER);DUAL & W(COOL BOX)

main88716-28220iTCR10,20..07S..USA199108-199308

W(COOL BOX)

main88716-2J080iTCR10,20..CND199308-199508

SINGLE (DOP)

main88716-2J090iTCR20..EFI;TCR10..07S..EFI;TCR10..05S..USA..EFI199408-199608

main88716-2J090iTCR10,20..07S..USA..EFI199308-199508

DUAL AIR CONDITIONER

main88716-2J100iTCR10,20..07S..USA..EFI199308-199408

W(COOL BOX & DUAL AIR CONDITIONER)

main88716-2J100iTCR10,20..07S..USA..EFI199308-199608

W(COOL BOX)

main88716-2J260iTCR10,20..05S..SPC199401-199707

W(COOL BOX)

main88716-2J260iTCR10,20..05S..SPC199401-199408

W(COOL BOX & DUAL AIR CONDITIONER)

main88716-2J270iTCR10,20..07S..SPC199401-199707

DUAL AIR CONDITIONER

main88716-2J270iTCR20..SPC;TCR10..07S..SPC;TCR10..05S..USA..SPC199408-199707

main88716-2R360iTCR10..05S..CND199508-199707

SINGLE (DOP)

main88716-95D34iTCR10,20199001-199004

SINGLE AIR CONDITIONER

sub88716-28200

main88716-95D35iTCR10,20199001-199004

DUAL AIR CONDITIONER

sub88716-28210

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-28150iTCR10,20..CND199001-199004

SINGLE (F/DOP)

main88717-28150iTCR10,20..CND;TCR10,20..05S..USA199004-199308

SINGLE

main88717-28160iTCR10,20..07S..USA199108-199308

DUAL

main88717-28160iTCR10,20199004-199308

SINGLE & W(COOL BOX) OR DUAL

main88717-28710iTCR10..05S..CND199308-199508

SINGLE (F/DOP)

main88717-28720iTCR10,20..CND199308-199508

DUAL

main88717-28720iTCR20..EFI;TCR10..07S..EFI;TCR10..05S..USA..EFI199408-199608

main88717-28840iTCR10..05S..CND199508-199707

DUAL

main88717-28840iTCR20..SPC;TCR10..07S..SPC;TCR10..05S..USA..SPC199401-199707

main88717-2J530iTCR10..05S..CND199508-199707

SINGLE (F/DOP)

main88717-95D19iTCR10,20199001-199004

SINGLE

sub88717-28150

main88717-95D20iTCR10,20199001-199004

SINGLE & W(COOL BOX) OR DUAL

sub88717-28160

88891APACKING A (FOR COOLER)

main69759-12060iTCR10,20199501-199707

40 X 68

main88578-28120iTCR10,20199308-199707

46 X 646

main88578-28120iTCR10..05S..CND199508-199707

main88578-28140iTCR10;TCR20..07S;TCR20..05S..USA199111-199308

sub88578-28100

main88578-95D04iTCR10,20199308-199501

40X50

sub69759-10050

8868895D28BRACKET, COOLER DIAPHRAGM

main88688-95D28

8868895D35BRACKET, COOLER DIAPHRAGM

main88688-95D35

8871824030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24030

8871895D20PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95D20

8871895D21PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95D21

8871895D22PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95D22

8871895D23PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95D23

8889795D00VALVE, COOLER MAGNET

main88897-95D00

9017908123

main90179-08123

9165160630

main91651-60630

9165160820

main91651-60820

9165160845

main91651-60845
