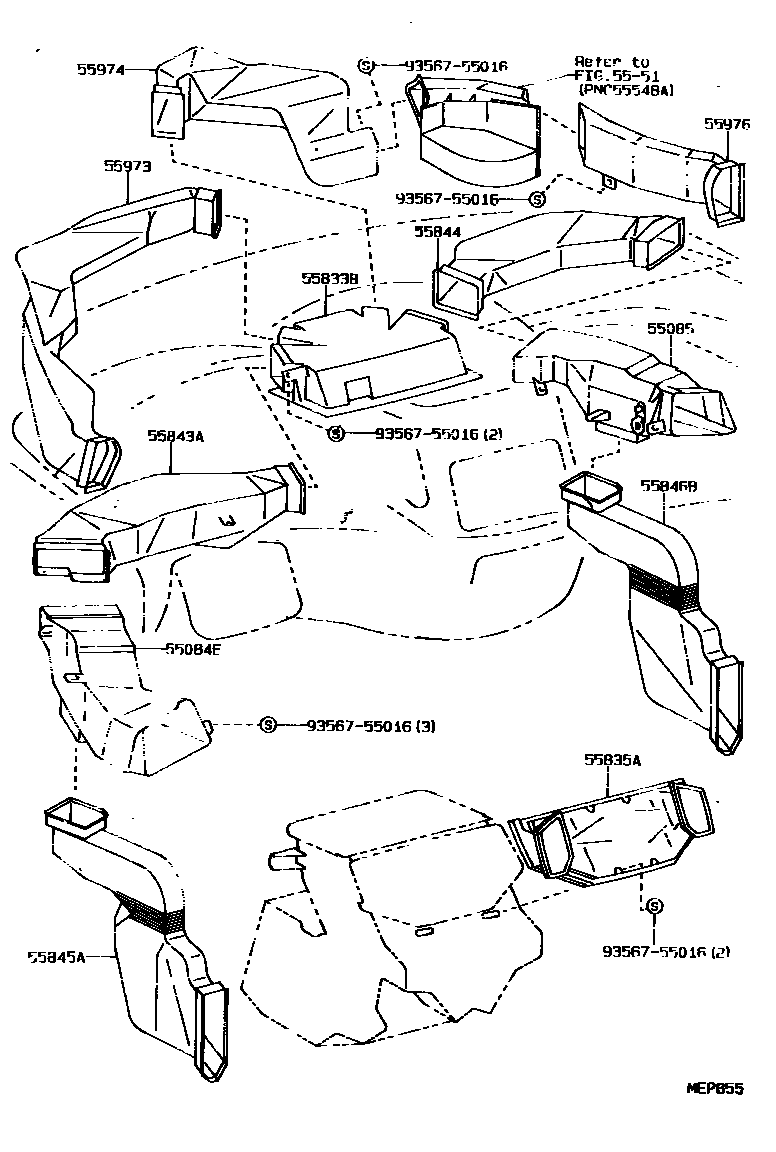

Toyota PREVIA — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1

55084EDUCT SUB-ASSY, HEATER TO REGISTER, NO.1

main55084-28040iTCR10,20199610-199707

main55084-95D00iTCR10,20199001-199610

sub55084-28040

55085DUCT SUB-ASSY, HEATER TO REGISTER, NO.2

main55085-28060iTCR10,20199610-199707

main55085-95D00iTCR10,20199001-199610

sub55085-28060

5551

55833BCONNECTOR, INSTRUMENT PANEL REGISTER, CENTER

main55833-95D00iTCR10,20199001-199707

55835ADUCT, HEATER TO REGISTER, CENTER

main55835-95D00iTCR10,20199001-199707

55843ADUCT, HEATER TO REGISTER, NO.1

main55843-95D00iTCR10,20199001-199707

55844DUCT, HEATER TO REGISTER, NO.2

main55844-95D00iTCR10,20199001-199707

55845ADUCT, HEATER TO REGISTER, NO.3

main55845-95D00iTCR10,20..USA199001-199707

main55845-95D02iTCR10,20..CND199001-199211

COLD SPEC

55846BDUCT, HEATER TO REGISTER, NO.4

main55846-28010iTCR10,20199308-199707

main55846-95D00iTCR10,20..USA199001-199308

sub55846-28010

main55846-95D02iTCR10,20..CND199001-199211

COLD SPEC

55973DUCT, SIDE DEFROSTER NOZZLE, NO.3

main55973-28020iTCR10,20199108-199707

HEATER SIDE

main55973-95D00iTCR10,20199001-199108

main55974-28020iTCR10,20199108-199707

REGISTER SIDE

55974DUCT, SIDE DEFROSTER NOZZLE, NO.4

main55974-28030iTCR10,20199308-199707

main55974-95D00iTCR10,20199001-199308

55976DUCT, SIDE DEFROSTER NOZZLE, NO.6

main55976-28050iTCR10,20199308-199707

main55976-95D00iTCR10,20199001-199308

9356755016

main93567-55016

13 parts on this diagram · 3 diagrams in section
