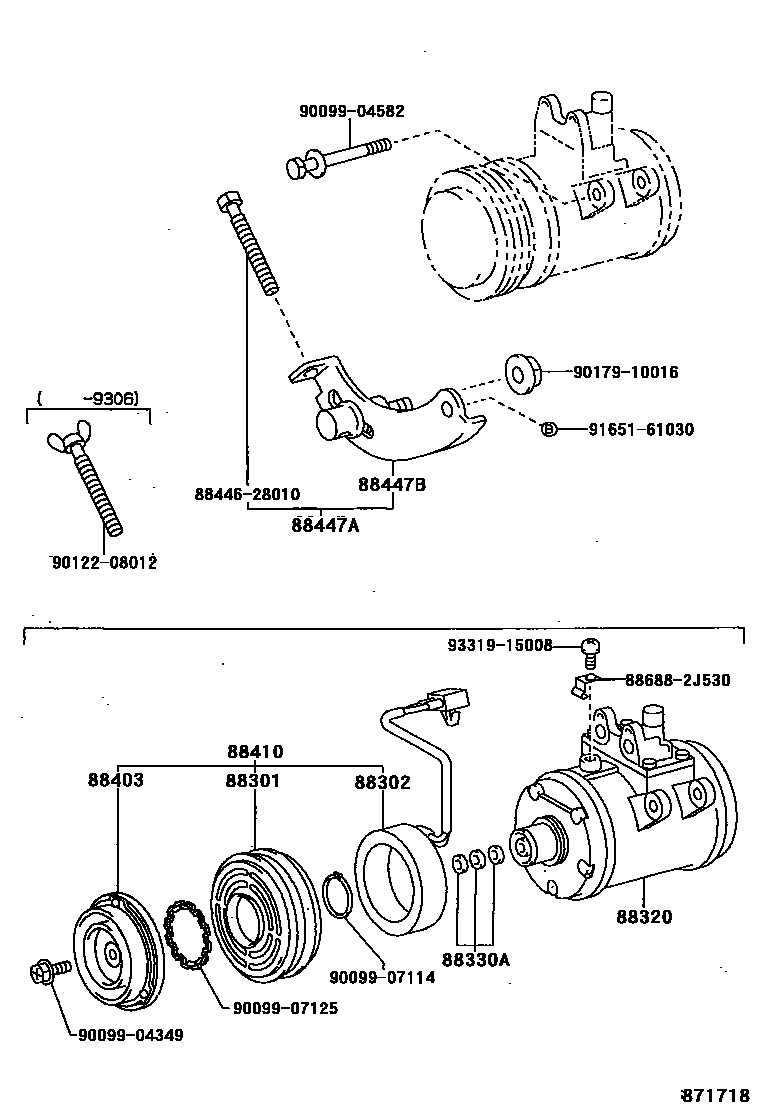

Toyota PREVIA — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14130iTCR10,20..EFI199001-199608

main88412-28050iTCR10,20..SPC199401-199707

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-28020iTCR10,20..SPC199401-199707

main88411-95D01iTCR10,20..EFI199001-199608

88320COMPRESSOR ASSY, COOLER

main88320-28160iTCR10,20199104-199308

main88320-28200iTCR10,20..EFI199308-199608

main88320-28210iTCR10,20..SPC199401-199707

sub88320-26H91

main88320-95D00iTCR10,20199001-199104

sub88320-28160

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iTCR10,20199001-199707

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iTCR10,20199001-199308

main88403-30290iTCR10,20199308-199707

88410CLUTCH ASSY, MAGNET

main88410-28100iTCR10,20..EFI199308-199608

main88410-28110iTCR10,20..SPC199401-199707

main88410-95D00iTCR10,20199001-199308

sub88410-28100

88447APLATE, BELT ADJUST

main88447-95D00iTCR10,20..EFI199001-199608

sub88447-28010

sub88442-28010

sub88446-28010

88447BPLATE, VELT ADJUST

main88447-28010iTCR10,20..CND199001-199508

8844628010BOLT, IDLE PULLEY

main88446-28010

886882J530BRACKET, COOLER DIAPHRAGM

main88688-2J530

9009904349

main90099-04349

9009904582

main90099-04582

9009907114

main90099-07114

9009907125

main90099-07125

9012208012

main90122-08012

9017910016

main90179-10016

9165161030

main91651-61030

9331915008

main93319-15008

18 parts on this diagram · 3 diagrams in section
