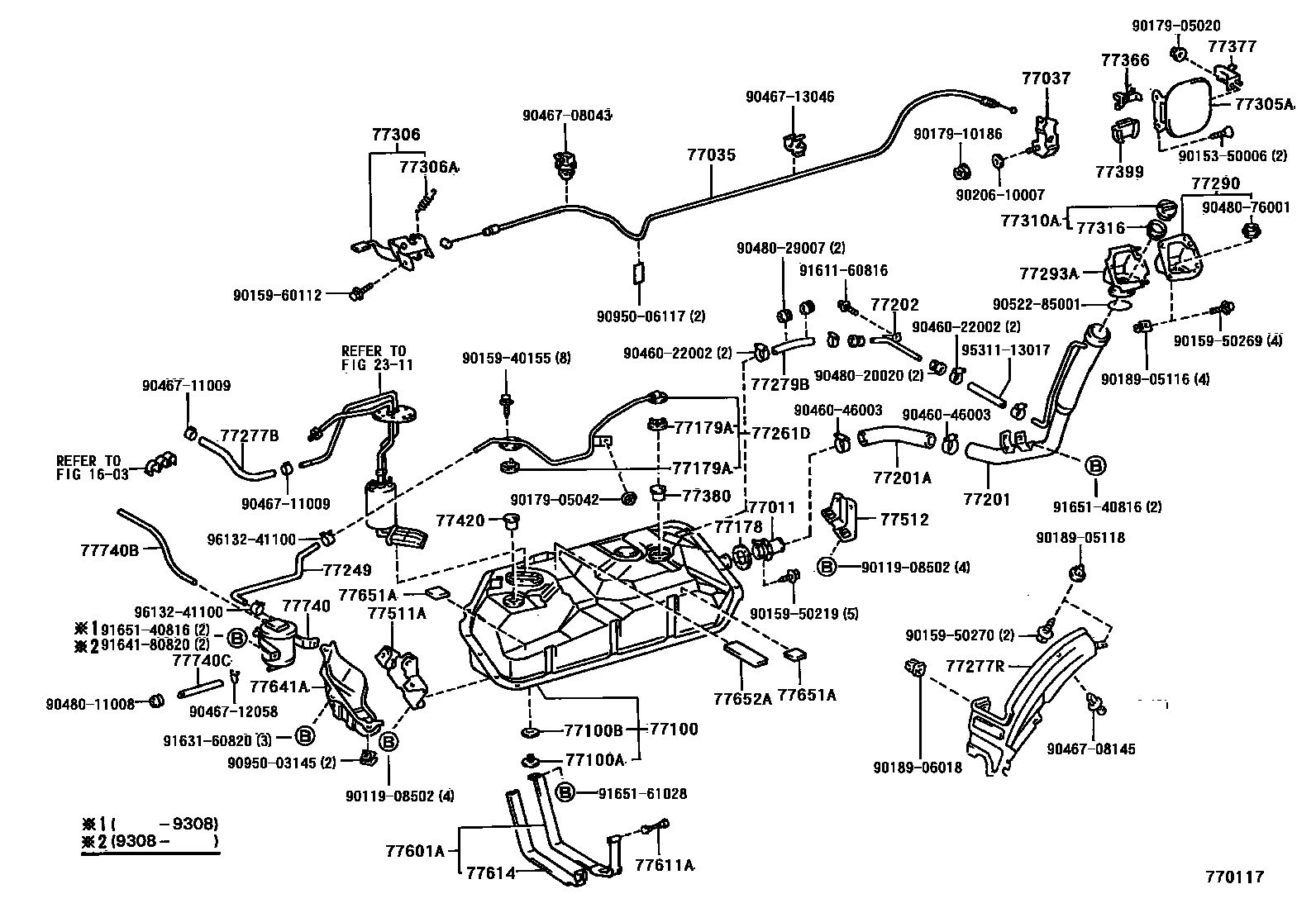

Toyota PREVIA — FUEL TANK & TUBE

1603

2311

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-28010iTCR10,20199001-199707

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-95D00iTCR10,20199001-199707

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-95D00iTCR10,20199001-199707

77100TANK ASSY, FUEL

main77001-28310iTCR10,20199001-199707

77100APLUG(FOR FUEL TANK)

main90341-20004iTCR10,20199001-199707

77100BGASKET(FOR FUEL TANK)

main90430-20007iTCR10,20199001-199707

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iTCR10,20199001-199707

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iTCR10,20199001-199707

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-28090iTCR10,20199001-199008

sub77201-28091

main77201-28091iTCR10,20199008-199707

main77201-28150iTCR10..07S..USA199302-199308

CHINA SPEC

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77217-28040iTCR10,20199001-199707

77202TUBE SUB-ASSY, BREATHER

main77203-28030iTCR10,20199001-199707

77249HOSE, FUEL EMISSION

main77249-28070iTCR10,20199001-199707

77261DTUBE, FUEL TANK TO CANISTER

main77026-28050iTCR10,20199001-199707

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main90447-12081iTCR10,20199112-199707

L=260

main95333-06030iTCR10,20199001-199112

L=300(*H,L=260)

sub95338-06030

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-95D00iTCR10,20199001-199707

77279BHOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.3)

main77279-28030iTCR10,20199001-199707

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-95D00iTCR10,20199001-199707

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-95D00iTCR10,20199001-199707

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-95D00iTCR10,20199001-199707

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-95D00iTCR10,20199001-199707

77306ASPRING, FUEL LID OPEN LEVER

main90506-09004iTCR10,20199001-199707

77310ACAP ASSY, FUEL TANK

main77310-12140iTCR10,20199001-199707

main77310-16011iTCR10..07S..USA199308-199401

GENERAL EXPORT UNLEADED SPEC

sub77310-12140

main77310-16011iTCR10..07S..USA199302-199308

CHINA SPEC

sub77310-12140

main77310-16011iTCR10..07S..USA..EFI199401-199608

GENERAL EXPORT UNLEADED SPEC OR BRAZIL SPEC

sub77310-12140

77316GASKET, FUEL TANK CAP

main77316-16010iTCR10,20199001-199707

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-95D00iTCR10,20199001-199707

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20040iTCR10,20199001-199707

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iTCR10,20199001-199707

77399HANGER, FUEL TANK CAP

main77399-28010iTCR10,20199001-199707

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-26010iTCR10,20199001-199707

77511ABRACKET, FUEL TANK

main77511-28070iTCR10,20199001-199707

77512BRACKET, FUEL TANK, REAR

main77512-28010iTCR10,20199001-199308

main77512-28011iTCR10,20199308-199707

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-28050iTCR10,20199001-199308

main77601-28051iTCR10,20199308-199707

77611APIN (FOR FUEL TANK BAND)

main77629-25010iTCR10,20199001-199707

77614SEAT, FUEL TANK BAND

main77681-28020iTCR10,20199001-199308

sub77681-28021

main77681-28021iTCR10,20199308-199707

77641APROTECTOR, FUEL TANK, NO.1

main77641-28040iTCR10,20199001-199707

77651ACUSHION, FUEL TANK, NO.1

main77651-28030iTCR10,20199001-199707

77652ACUSHION, FUEL TANK, NO.2

main77652-28010iTCR10,20199001-199707

77740CANISTER ASSY, CHARCOAL

main77740-28110iTCR10,20..EFI199001-199608

main77740-28130iTCR10,20..SPC199401-199707

77740BHOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)

main90999-92002iTCR10,20199001-199002

*H,L=220,MARK=#*

main90999-92002iTCR10,20..EFI199002-199608

*H,L=240,MARK=#*

77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

main90441-08004iTCR10,20199001-199707

9011908502

main90119-08502

9015350006

main90153-50006

9015940155

main90159-40155

9015950219

main90159-50219

9015950269

main90159-50269

9015950270

main90159-50270

9015960112

main90159-60112

9017905020

main90179-05020

9017905042

main90179-05042

9017910186

main90179-10186

9018905116

main90189-05116

9018905118

main90189-05118

9018906018

main90189-06018

9020610007

main90206-10007

9046022002

main90460-22002

9046046003

main90460-46003

9046708043

main90467-08043

9046708145

main90467-08145

9046711009

main90467-11009

9046712058

main90467-12058

9046713046

main90467-13046

9048011008

main90480-11008

9048020020

main90480-20020

9048029007

main90480-29007

9048076001

main90480-76001

9052285001

main90522-85001

9095003145

main90950-03145

9095006117

main90950-06117

9161160816

main91611-60816

9163160820

main91631-60820

9164180820

main91641-80820

9165140816

main91651-40816

9165161028

main91651-61028

9531113017

main95311-13017

9613241100

main96132-41100

76 parts on this diagram · 1 diagram in section
