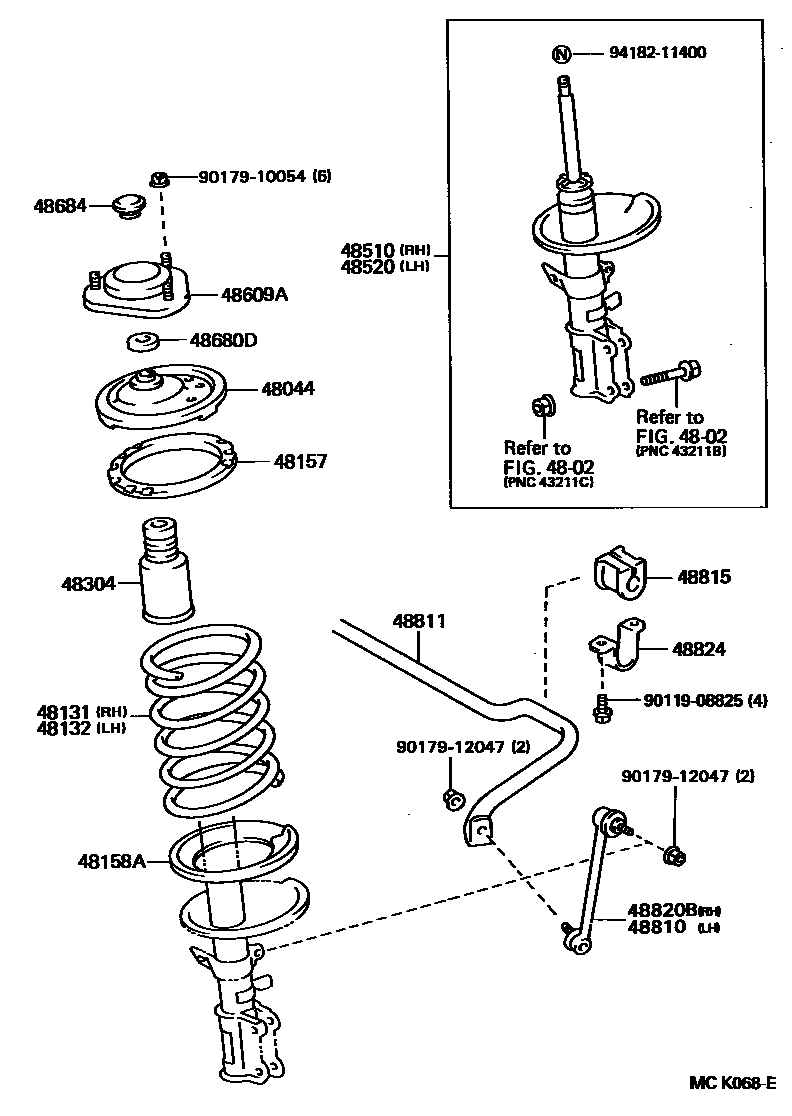

Toyota PREVIA — FRONT SPRING & SHOCK ABSORBER
4802
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
48131SPRING, FRONT COIL, RH
sub48131-28050
sub48131-28060
W(SUN ROOF)
sub48131-28510
sub48131-28090
sub48131-28070
sub48131-28600
CHINA SPEC
W(SUN ROOF)
48132SPRING, FRONT COIL, LH
sub48131-28060
sub48131-28090
sub48131-28510
sub48131-28410
sub48131-28450
W(SUN ROOF)
sub48131-28540
CHINA SPEC
W(SUN ROOF)
48157INSULATOR, FRONT COIL SPRING, UPPER
48158AINSULATOR, FRONT COIL SPRING, LOWER
48304BUMPER SUB-ASSY, FRONT SPRING, NO.1
CHINA SPEC
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684COVER, BEARING DUST
48811BAR, STABILIZER, FRONT
CHINA SPEC
48815BUSH, FRONT STABILIZER BAR, NO.1
48824BRACKET, STABILIZER, FRONT
9011908825
main90119-08825
9017910054
main90179-10054
9017912047
main90179-12047
9418211400
main94182-11400
21 parts on this diagram · 1 diagram in section
