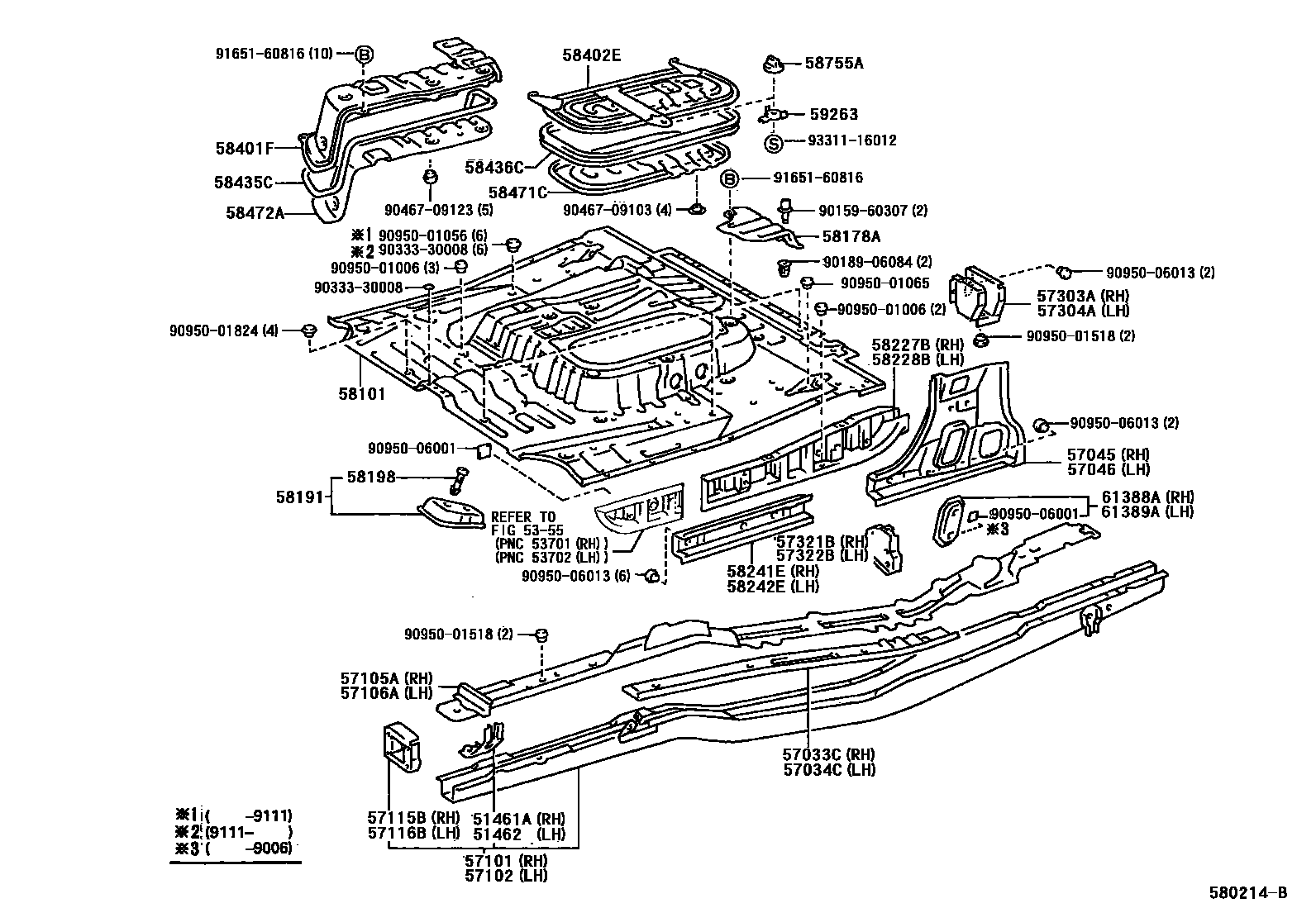

Toyota PREVIA — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51461ABRACKET, RADIATOR MOUNTING, LOWER RH
51462BRACKET, RADIATOR MOUNTING, LOWER LH
5355
57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH
57034CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 LH
57045PLATE SUB-ASSY, FLOOR SIDE RAIL, RH
57046PLATE SUB-ASSY, FLOOR SIDE RAIL, LH
DUAL AIR CONDITIONER
DUAL AIR CONDITIONER
57115BPLATE, FRONT SIDE MEMBER, NO.1 RH
57116BPLATE, FRONT SIDE MEMBER, NO.1 LH
57303AOUTRIGGER SUB-ASSY, NO.2 RH
57304AOUTRIGGER SUB-ASSY, NO.2 LH
57321BOUTRIGGER, NO.5, RH
57322BOUTRIGGER, NO.5, LH
58101PAN SUB-ASSY, FRONT FLOOR
W(COOL & HOT BOX)
W(COOL & HOT BOX)
58178AEXTENSION, FRONT FLOOR PANEL, LH
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58227BPLATE, FRONT FLOOR PANEL SIDE, RH
58228BPLATE, FRONT FLOOR PANEL SIDE, LH
58241EPANEL, FLOOR SIDE, FRONT RH
58242EPANEL, FLOOR SIDE, FRONT LH
58401FCOVER SUB-ASSY, ENGINE SERVICE HOLE, RH
58402ECOVER SUB-ASSY, ENGINE SERVICE HOLE, LH
58436CPACKING, ENGINE SERVICE HOLE COVER, LH
58471CSILENCER, ENGINE MAIN COVER
58472ASILENCER, ENGINE SUB COVER
58755AHANDLE, ENGINE SERVICE COVER CATCH
59263HOOK, ENGINE COVER LOCK
61388APLATE, CENTER BODY PILLAR END, RH
61389APLATE, CENTER BODY PILLAR END, LH
9015960307
main90159-60307
9018906084
main90189-06084
9033330008
main90333-30008
9046709103
main90467-09103
9046709123
main90467-09123
9095001006
main90950-01006
9095001056
main90950-01056
9095001065
main90950-01065
9095001518
main90950-01518
9095001824
main90950-01824
9095006001
main90950-06001
9095006013
main90950-06013
9165160816
main91651-60816
9331116012
main93311-16012
49 parts on this diagram · 1 diagram in section
