Toyota PREVIA — FRONT DRIVE SHAFT

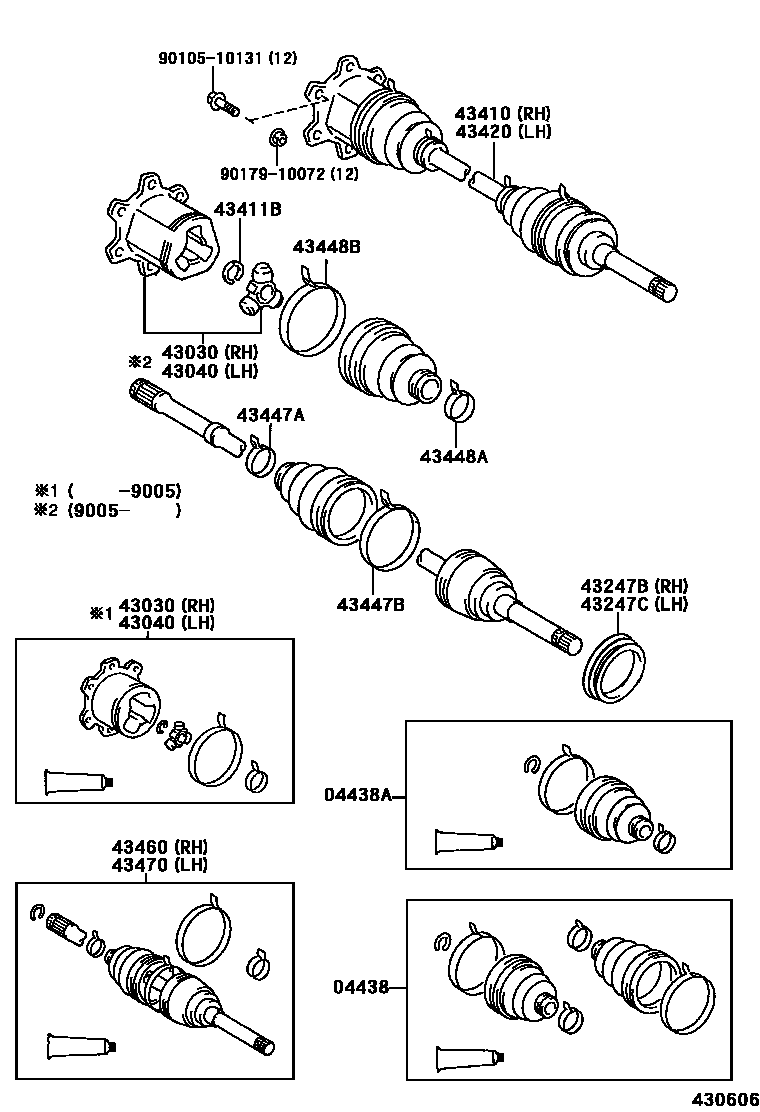

Parts diagram
04438BOOT KIT, FRONT DRIVE SHAFT
main04437-20020i199001-199707
04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
main04438-28011i199001-199707
sub04437-28021
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
main43403-28010i199005-199707
sub43403-27010
main43403-29015i199001-199005
sub43403-28010
43040JOINT ASSY, FRONT DRIVE INBOARD, LH
main43403-28010i199005-199707
sub43403-27010
main43403-29015i199001-199005
sub43403-28010
43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2
main43247-28010i199001-199707
43247CDEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2
main43247-28010i199001-199707
43410SHAFT ASSY, FRONT DRIVE, RH
main43430-28020i199001-199101
sub43430-28021
sub43525-20030
sub90179-22020
main43430-28021i199101-199707
sub43430-28022
sub90178-22001
main43430-28030i199001-199101
W(*66)
sub43430-28031
sub43525-20030
sub90179-22020
main43430-28031i199101-199108
W(*66)
sub43430-28032
sub90178-22001
main43430-28031i199108-199707
W(ABS)
sub43430-28032
sub90178-22001
43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
main90520-26028i199001-199707
43420SHAFT ASSY, FRONT DRIVE, LH
main43430-28020i199001-199101
sub43430-28021
sub43525-20030
sub90179-22020
main43430-28021i199101-199707
sub43430-28022
sub90178-22001
main43430-28030i199001-199101
W(*66)
sub43430-28031
sub43525-20030
sub90179-22020
main43430-28031i199108-199707
W(ABS)
sub43430-28032
sub90178-22001
main43430-28031i199101-199108
W(*66)
sub43430-28032
sub90178-22001
43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
main42345-14010i199001-199707
43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
main90949-01339i199001-199707
43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
main42345-14010i199001-199707
43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
main42345-30010i199001-199707
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
main43460-29175i199001-199101
sub43460-29176
sub43525-20030
sub90179-22020
main43460-29176i199101-199508
sub43460-29177
main43460-29177i199508-199707
sub43460-29178
sub90178-22001
main43460-29185i199001-199101
W(*66)
sub43460-29186
sub43525-20030
sub90179-22020
main43460-29186i199101-199508
W(*66)
sub43460-29187
main43460-29187i199508-199707
W(ABS)
sub43460-29188
sub90178-22001
43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
main43460-29175i199001-199101
sub43460-29176
sub43525-20030
sub90179-22020
main43460-29176i199101-199508
sub43460-29177
main43460-29177i199508-199707
sub43460-29178
sub90178-22001
main43460-29185i199001-199101
W(*66)
sub43460-29186
sub43525-20030
sub90179-22020
main43460-29186i199101-199508
W(*66)
sub43460-29187
main43460-29187i199508-199707
W(ABS)
sub43460-29188
sub90178-22001
9010510131
main90105-10131
9017910072
main90179-10072

17 parts on this diagram · 1 diagram in section
