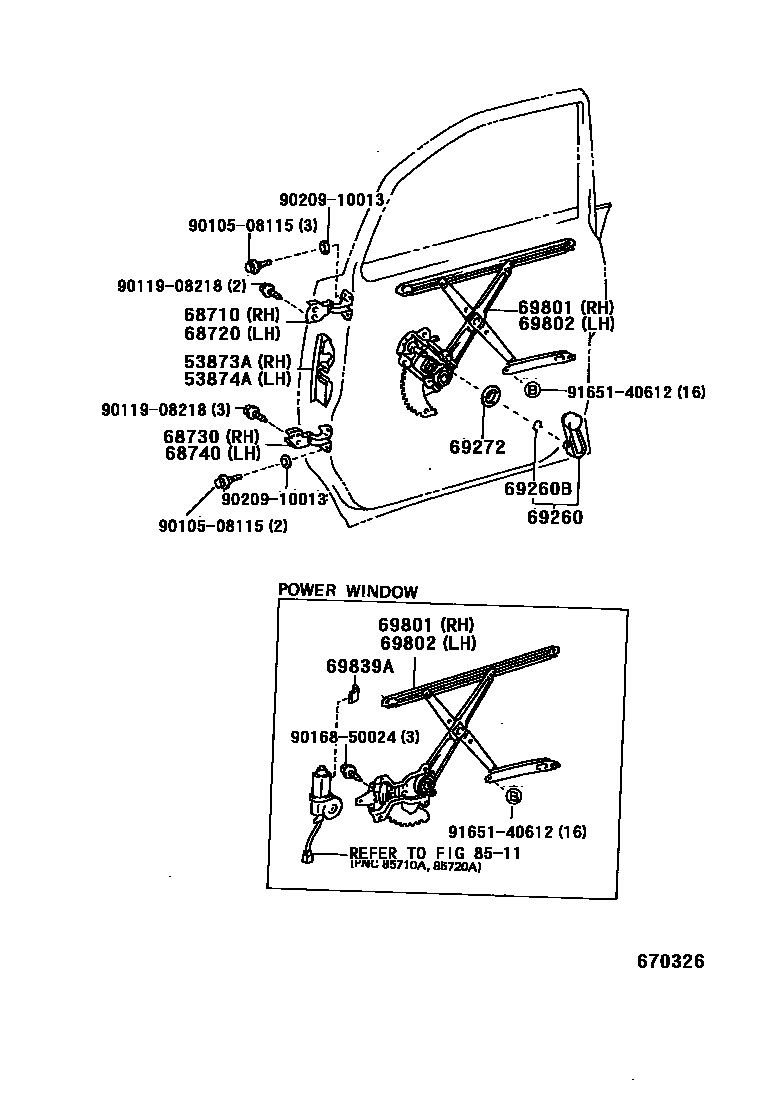

Toyota PREVIA — FRONT DOOR WINDOW REGULATOR & HINGE

53873ASPACER, FRONT FENDER TO DOOR HINGE, RH

main53873-95D00iTCR10,20199001-199005

sub53873-95D01

main53873-95D01iTCR10,20199005-199707

53874ASPACER, FRONT FENDER TO DOOR HINGE, LH

main53874-95D00iTCR10,20199001-199005

sub53874-95D01

main53874-95D01iTCR10,20199005-199707

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-28010iTCR10,20199108-199707

main68710-95D00iTCR10,20199001-199108

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-28010iTCR10,20199108-199707

main68720-95D00iTCR10,20199001-199108

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-28010iTCR10,20199108-199707

main68730-95D01iTCR10,20199001-199108

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-28010iTCR10,20199108-199707

main68740-95D01iTCR10,20199001-199108

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14020-07iTCR10,20..CND;TCR10,20..05S..USA199108-199308

LIGHT GREIGE,TRIM4#

sub69260-14020

sub69260-22030

main69260-14020-08iTCR10,20199001-199108

LIGHT TAN,TRIM4#

sub69260-14020

sub69260-22030

main69260-14020-09iTCR10,20199001-199308

LIGHT BLUE,TRIM8#

sub69260-14020

sub69260-22030

main69260-14020-53iTCR10,20..CND;TCR10,20..05S..USA199001-199206

GRAY,TRIM1#

sub69260-14020

sub69260-22030

main69260-14020-B0iTCR10,20..CND;TCR10,20..05S..USA199308-199707

GRAY,TRIM1#

sub69260-14020

sub69260-22030

main69260-14020-E2iTCR10,20..CND;TCR10,20..05S..USA199308-199707

LIGHT GREIGE,TRIM4#

sub69260-14020

sub69260-22030

main69260-14020-R9iTCR10,20..CND;TCR10,20..05S..USA199308-199408

LIGHT BLUE,TRIM8#

sub69260-14020

sub69260-22030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iTCR10,20199001-199308

sub90520-01274

main90520-01274iTCR10,20..CND;TCR10,20..05S..USA199308-199707

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-28010-03iTCR10,20199001-199308

GRAY,TRIM1#

sub69268-28010

main69268-28010-04iTCR10,20..CND;TCR10,20..05S..USA199001-199308

BLUE,TRIM8#

sub69268-28010

main69268-28010-05iTCR10,20..CND;TCR10,20..05S..USA199108-199308

GREIGE,TRIM4#

sub69268-28010

main69268-28010-06iTCR10,20199001-199108

TAN,TRIM4#

sub69268-28010

main69268-28010-B0iTCR10,20..05S199308-199707

LIGHT GRAY,TRIM1#

sub69268-28010

main69268-28010-E2iTCR10,20..CND;TCR10,20..05S..USA199308-199707

LIGHT GREIGE,TRIM4#

sub69268-28010

main69268-28010-R9iTCR10,20..CND;TCR10,20..05S..USA199308-199408

LIGHT BLUE,TRIM8#

sub69268-28010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-95D00iTCR10,20..07S199001-199707

W(*PW)

main69801-95D00iTCR10,20..CND;TCR10,20..05S..USA199108-199707

W(ELECTRIC OUTER MIRROR)

main69801-95D00iTCR10,20..07S..USA199108-199408

main69810-95D00iTCR10,20199001-199707

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-95D00iTCR10,20..07S..USA199108-199408

main69802-95D00iTCR10,20..CND199001-199707

W(*PW)

main69802-95D00iTCR10,20..CND;TCR10,20..05S..USA199108-199707

W(ELECTRIC OUTER MIRROR)

main69820-95D00iTCR10,20..CND;TCR10,20..05S..USA199001-199707

69839APAD, FRONT DOOR WINDOW REGULATOR

main69839-95800iTCR10,20199001-199607

8511

9010508115

main90105-08115

9011908218

main90119-08218

9016850024

main90168-50024

9020910013

main90209-10013

9165140612

main91651-40612

18 parts on this diagram · 1 diagram in section
