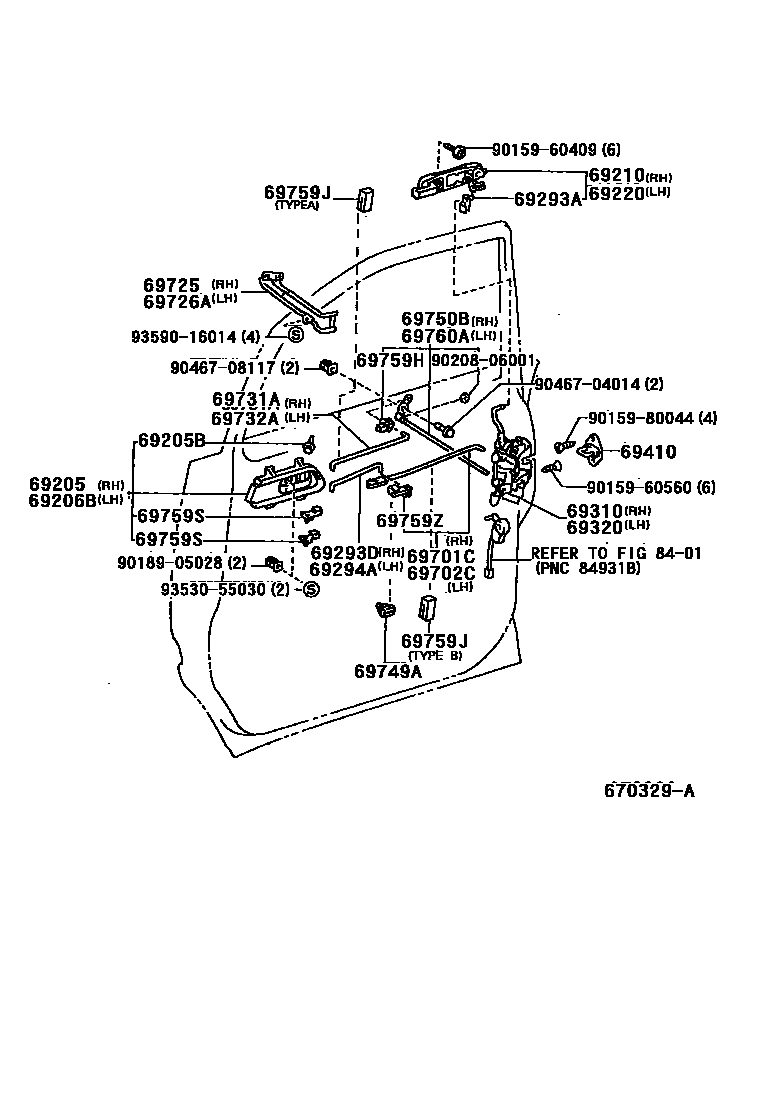

Toyota PREVIA — FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
LH
RH
69293DLINK, DOOR INSIDE HANDLE CONNECTING, RH
69294ALINK, DOOR INSIDE HANDLE CONNECTING, LH
69310LOCK ASSY, FRONT DOOR, RH
CHINA SPEC
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(ANTI-THEFT DEVICE)
W(POWER DOOR LOCK)
W(ANTI-THEFT DEVICE)
69320LOCK ASSY, FRONT DOOR, LH
CHINA SPEC
W(POWER DOOR LOCK)
W(ANTI-THEFT DEVICE)
W(POWER DOOR LOCK)
W(ANTI-THEFT DEVICE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
sub69410-20070
69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH
69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH
69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
69731ALINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69732ALINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
LH
RH
69759JSILENCER, DOOR LOCK LINK
TYPE A
TYPE B
69759SSNAP, FRONT DOOR INSIDE HANDLE
LH-HANDLE
LH-HANDEL
LH-KNOB
RH-KNOB
RH-HANDLE
69759ZSNAP, DOOR LOCK CONTROL LINK
LH
RH
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
8401
9015960409
main90159-60409
9015960560
main90159-60560
9015980044
main90159-80044
9018905028
main90189-05028
9020806001
main90208-06001
9046704014
main90467-04014
9046708117
main90467-08117
9353055030
main93530-55030
9359016014
main93590-16014
34 parts on this diagram · 1 diagram in section
