Toyota PREVIA — FRONT DISC BRAKE CALIPER & DUST COVER

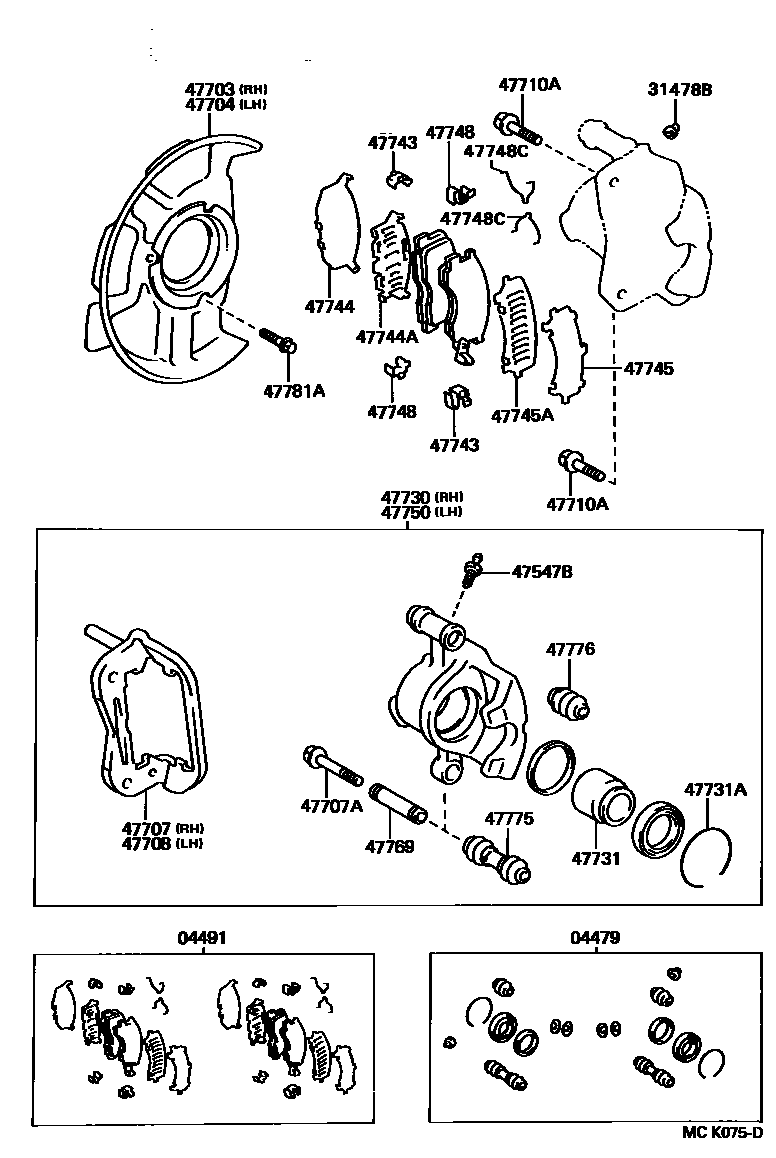

Parts diagram
04479CYLINDER KIT, DISC BRAKE, FRONT
main04479-28031i199005-199608
W(ABS)
main04479-28031i199302-199308
W(REAR DISC BRAKE)
main04479-28050i199001-199707
04491PAD KIT, DISC BRAKE, FRONT
main04491-28220i199302-199308
CHINA SPEC
sub04491-28221
main04491-28230i199001-199209
W(REAR DISC BRAKE)
sub04465-28210
main04491-28280i199001-199310
sub04491-28281
main04491-28280i199005-199209
W(ABS)
sub04491-28281
main04491-28281i199310-199408
sub04465-28030
main04491-28350i199209-199310
W(ABS)
sub04491-28351
main04491-28351i199310-199505
W(ABS)
sub04465-28170
main04491-28360i199209-199310
W(REAR DISC BRAKE)
sub04491-28361
main04491-28361i199310-199408
W(REAR DISC BRAKE)
sub04465-28150
main04491-28361i199408-199505
sub04465-28150
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
main31478-30010i199001-199707
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
main47547-12020i199001-199707
47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
main47703-28020i199001-199308
main47703-28030i199001-199308
W(REAR DISC BRAKE)
main47781-28160i199308-199408
W(REAR DISC BRAKE)
sub47781-28161
main47781-28160i199408-199707
sub47781-28161
main47781-28170i199308-199408
47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
main47704-28020i199001-199308
main47704-28030i199001-199308
W(REAR DISC BRAKE)
main47782-28160i199308-199408
W(REAR DISC BRAKE)
sub47782-28161
main47782-28160i199408-199707
sub47782-28161
main47782-28170i199308-199408
47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH
main47707-28110i199001-199408
main47707-28120i199001-199408
W(REAR DISC BRAKE)
main47707-28120i199408-199707
main47707-28130i199008-199608
W(ABS)
47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)
main90119-10385i199001-199707
47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH
main47708-28110i199001-199408
main47708-28120i199001-199408
W(REAR DISC BRAKE)
main47708-28120i199408-199707
main47708-28130i199005-199608
W(ABS)
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
main90119-12186i199001-199707
*12-1.25PX57-25
main90119-12187i199001-199707
*12-1.25PX33-15
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
main47730-28150i199001-199408
main47730-28170i199001-199408
W(REAR DISC BRAKE)
main47730-28170i199408-199707
main47730-28200i199005-199608
W(ABS & REAR DISC BRAKE)
47731PISTON, FRONT DISC BRAKE
main47731-28030i199005-199608
W(ABS)
main47731-28030i199302-199308
W(REAR DISC BRAKE)
main47731-28040i199001-199707
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
main90520-52005i199506-199608
W(ABS)
main90522-49001i199005-199506
W(ABS)
main90522-49001i199302-199308
W(REAR DISC BRAKE)
main90522-67001i199001-199707
47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
main47743-14040i199001-199707
OUTER
main47743-28010i199001-199707
INNER
47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
main47745-28010i199005-199209
W(ABS)
main47745-28010i199302-199308
CHINA SPEC
main47745-28030i199001-199209
main47745-28070i199209-199608
W(ABS)
main47745-28100i199209-199608
47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
main47744-28070i199302-199308
CHINA SPEC
main47744-28070i199005-199209
W(ABS)
main47744-28090i199001-199209
main47744-28130i199209-199608
W(ABS)
main47744-28150i199209-199608
47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
main47745-28020i199302-199308
CHINA SPEC
main47745-28020i199005-199209
W(ABS)
main47745-28040i199001-199209
main47745-28090i199209-199608
W(ABS)
main47745-28110i199209-199608
47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)
main47744-28080i199302-199308
CHINA SPEC
main47744-28080i199005-199209
W(ABS)
main47744-28100i199001-199209
main47744-28140i199209-199608
W(ABS)
main47744-28160i199209-199608
47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
main47748-14050i199001-199707
OUTER
main47748-28010i199001-199707
INNER
47748CSPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
main47748-20020i199001-199707
47750CYLINDER ASSY, DISC BRAKE, LH
main47750-28150i199001-199408
main47750-28170i199001-199408
W(REAR DISC BRAKE)
main47750-28170i199408-199707
main47750-28200i199005-199608
W(ABS & REAR DISC BRAKE)
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
main47769-28020i199001-199707
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
main47775-28020i199001-199707
47776BOOT, MAIN PIN(FOR FRONT DISC BRAKE)
main47776-14010i199001-199707
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
main90109-06134i199209-199707
main90119-06227i199001-199209

25 parts on this diagram · 3 diagrams in section
