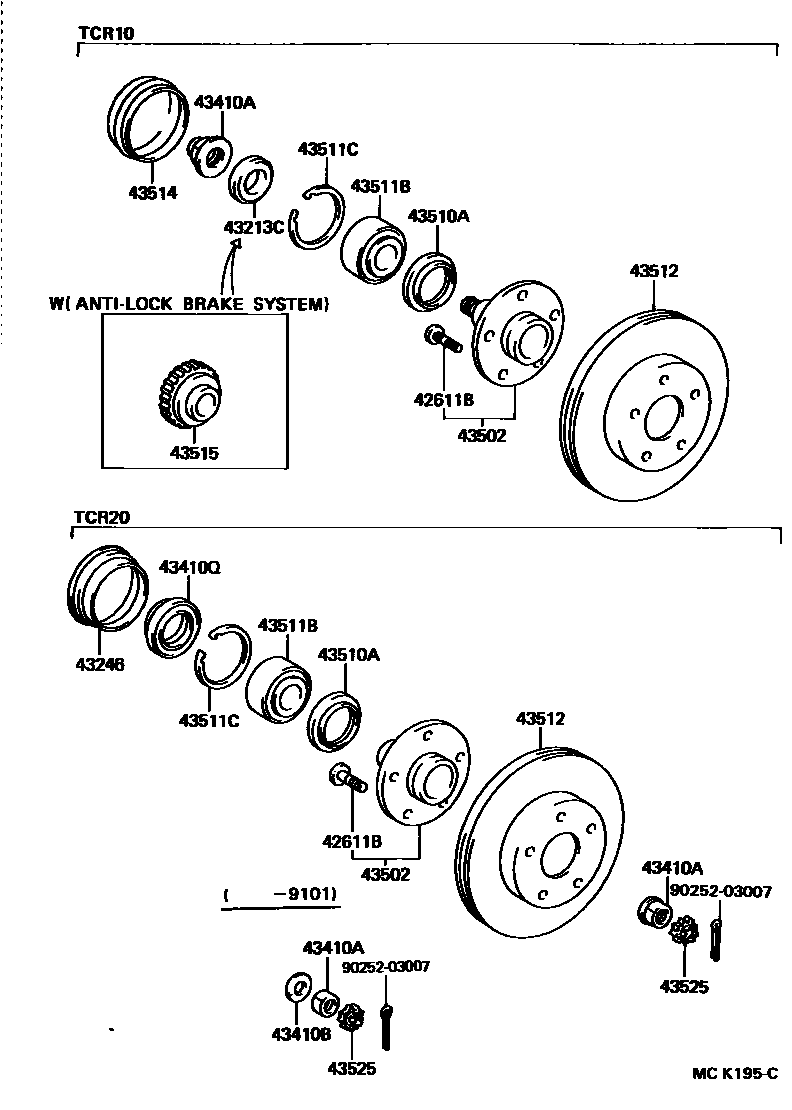

Toyota PREVIA — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02049iTCR20199001-199707

43213CSPACER (FOR DRIVE SHAFT)

main90560-43001iTCR10199001-199707

T=7.50

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-28010iTCR20199001-199707

43410ANUT (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90170-19002iTCR20199001-199101

main90179-22020iTCR20199101-199707

main90179-24010iTCR10199001-199707

43410BWASHER (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90201-20012iTCR20199001-199101

43410QSEAL, OIL (FOR FRONT DRIVE SHAFT)

main90311-56014iTCR20199001-199707

43502HUB SUB-ASSY, FRONT AXLE

main43502-28040iTCR10199001-199707

main43502-28050iTCR20199001-199707

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-61001iTCR10,20199001-199707

43511BBEARING (FOR FRONT AXLE HUB)

main90369-43007iTCR10,20199001-199707

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-82002iTCR10,20199001-199707

T=2.5

43512DISC, FRONT

main43512-28060iTCR10,20199001-199108

sub43512-28111

main43512-28070iTCR10,20..07S199001-199408

W(RR DISC BRAKE)

main43512-28070iTCR10,20199408-199707

main43512-28090iTCR10,20..07S199005-199608

W(ABS & RR DISC BRAKE)

main43512-28110iTCR10,20..CND199108-199408

sub43512-28111

43514CAP, FRONT HUB GREASE

main43514-28010iTCR10199001-199707

43515ROTOR, SKID CONTROL, FRONT

main43515-28010iTCR10,20..07S199001-199707

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iTCR20199001-199101

main43525-20030iTCR20199101-199707

9025203007

main90252-03007

15 parts on this diagram · 1 diagram in section
