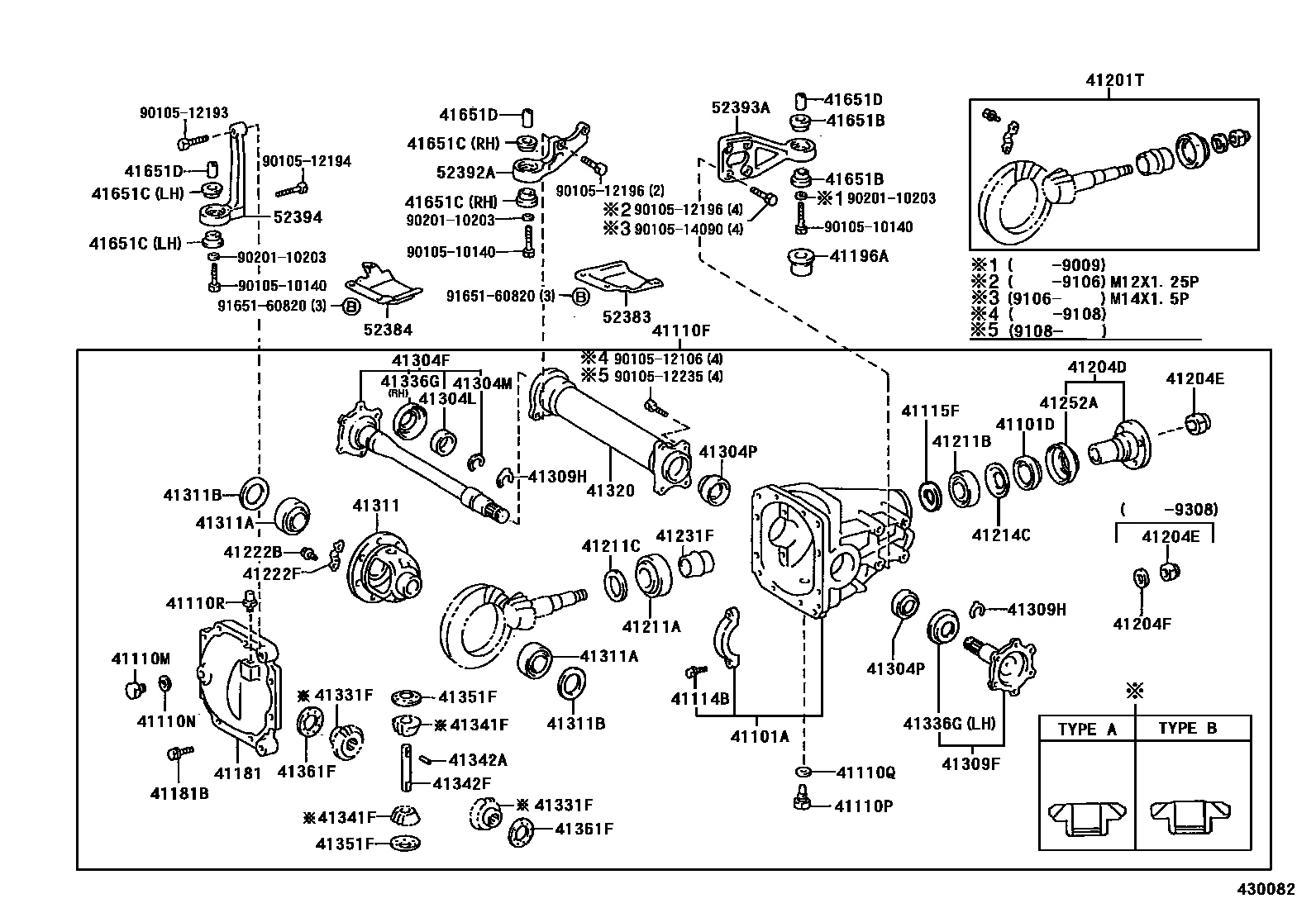

Toyota PREVIA — FRONT AXLE HOUSING & DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
*FGR=41:11=3.727
41110MPLUG, FRONT DIFFERENTIAL FILLER
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
41110PPLUG, FRONT DIFFERENTIAL DRAIN
41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG
41110RPLUG, BREATHER (FOR FRONT DIFFERENTIAL)
41114BBOLT, FRONT DIFFERENTIAL BEARING CAP
41115FRING, FRONT DIFFERENTIAL OIL STORAGE
41181BBOLT (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING)
41196ADAMPER, FRONT DIFFERENTIAL DYNAMIC
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
*FGR=41:11=3.727
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41204FWASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE FRONT)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
sub90366-34019
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211CGEAR, DIFFERENTIAL RING
T=2.36,MARK 05
T=2.39,MARK 06
T=2.42,MARK 07
T=2.43,MARK 08
T=2.48,MARK 09
T=2.51,MARK 10
T=2.54,MARK 11
T=2.57,MARK 12
T=2.60,MARK 13
T=2.63,MARK 14
T=2.66,MARK 15
T=2.69,MARK 16
OD=47,T=2.27,MARK 02
OD=47,T=2.30,MARK 03
OD=47,T=2.33,MARK 04
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)
41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
41309FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH
41309HRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41311CASE, FRONT DIFFERENTIAL
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
T=2.22
T=2.25
T=2.28
T=2.31
T=2.34
T=2.37
T=2.40
T=2.43
T=2.46
T=2.49
T=2.52
T=2.55
T=2.58
T=2.61
T=2.64
T=2.67
T=2.70
T=2.73
T=2.76
T=2.79
T=2.82
T=2.85
T=2.88
T=2.91
T=2.94
T=2.97
T=3.00
T=3.03
T=3.06
T=3.09
T=3.12
T=3.15
T=3.18
T=3.21
41320TUBE ASSY, FRONT DIFFERENTIAL
41331FGEAR, FRONT DIFFERENTIAL SIDE
TYPE A
41336GCOVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT)
LH
RH
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=1.30,MARK 12
T=1.40,MARK 13
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
T=1.25,MARK 17
T=1.35,MARK 18
41651BCUSHION, FRONT DIFFERENTIAL MOUNT, NO.1
41651CCUSHION, FRONT DIFFERENTIAL MOUNT, NO.2
LH
RH
41651DCOLLAR (FOR FRONT DIFFERENTIAL MOUNT CUSHION)
52383PROTECTOR, FRONT DIFFERENTIAL SUPPORT, NO.1
52384PROTECTOR, FRONT DIFFERENTIAL SUPPORT, NO.2
52392ASUPPORT, FRONT DIFFERENTIAL, NO.1
52393ASUPPORT, FRONT DIFFERENTIAL, NO.2
52394SUPPORT, FRONT DIFFERENTIAL, NO.3
9010510140
main90105-10140
9010512106
main90105-12106
9010512193
main90105-12193
9010512194
main90105-12194
9010512196
main90105-12196
9010512235
main90105-12235
9010514090
main90105-14090
9020110203
main90201-10203
9165160820
main91651-60820
59 parts on this diagram · 1 diagram in section
