Toyota PREVIA — FLOOR MAT & SILENCER PAD

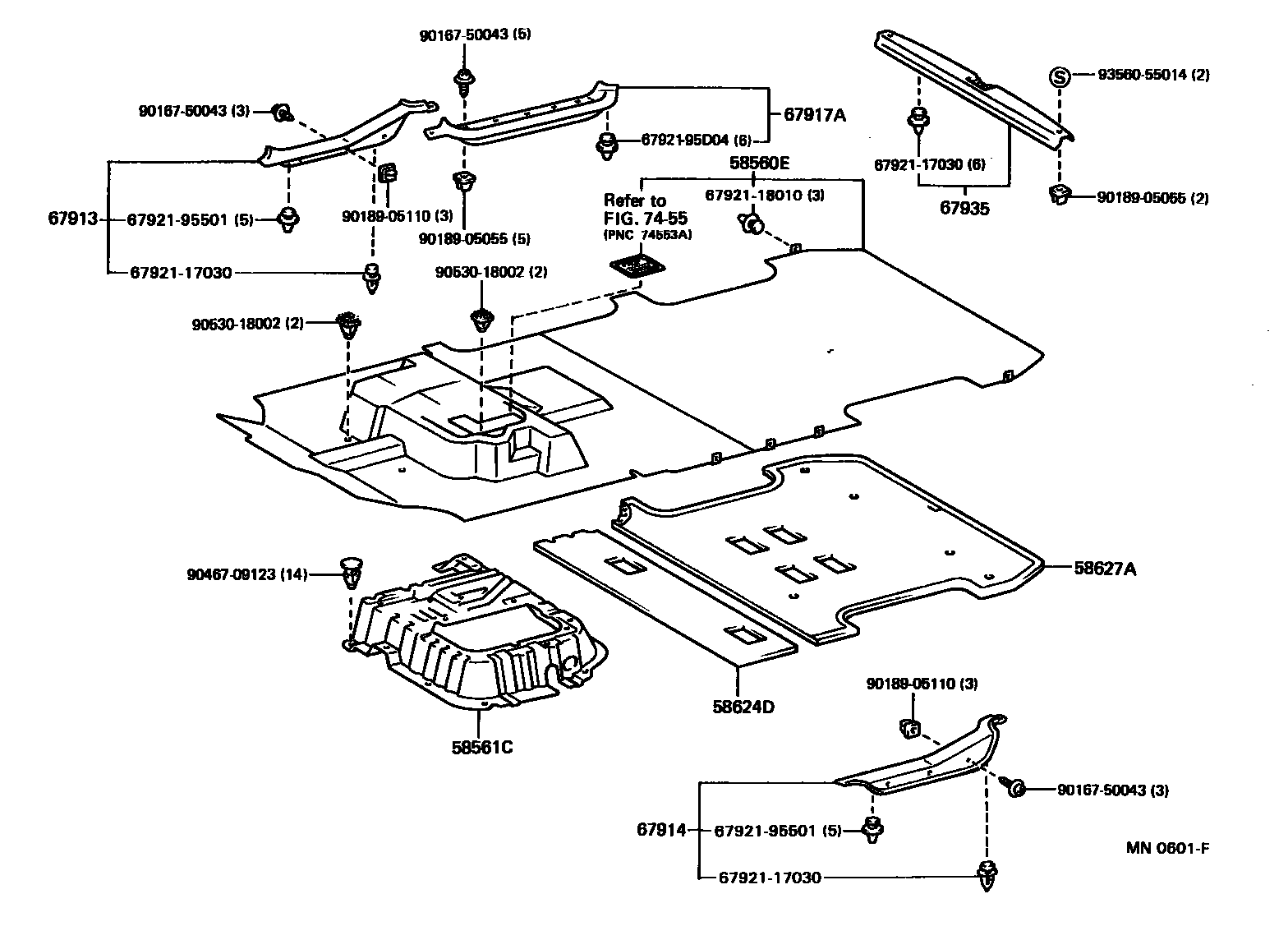

Parts diagram
58560ECARPET ASSY, SEAT FLOOR
main58560-28460-B0i199108-199208
W(BENCH 2-PASSENGER SEAT),LIGHT GRAY,TRIM1#
sub58560-28461
main58560-28460-E0i199108-199208
W(BENCH 2-PASSENGER SEAT),LIGHT GREIGE,TRIM4#
sub58560-28461
main58560-28460-J0i199108-199208
W(BENCH 2-PASSENGER SEAT),LIGHT BLUE,TRIM8#
sub58560-28461
main58560-28461-B1i199208-199408
W(BENCH 2-PASSENGER SEAT),GRAY,TRIM1#
sub58560-28461
main58560-28461-E1i199208-199408
W(BENCH 2-PASSENGER SEAT),GREIGE,TRIM4#
sub58560-28461
main58560-28461-J1i199208-199408
W(BENCH 2-PASSENGER SEAT),BLUE,TRIM8#
sub58560-28461
main58560-28462-B2i199408-199508
BLUISH GRAY,TRIM1#
sub58560-28461
main58560-28462-E2i199408-199508
MD. GREIGE,TRIM4#
sub58560-28461
main58560-28470-B0i199108-199208
W(BENCH 2-PASSENGER SEAT & AIR CONDITIONER & ICE COOL BOX),LIGHT GRAY,TRIM1#
sub58560-28471
main58560-28470-E0i199108-199208
W(BENCH 2-PASSENGER SEAT & AIR CONDITIONER & ICE COOL BOX),LIGHT GREIGE,TRIM4#
sub58560-28471
main58560-28470-J0i199108-199208
W(BENCH 2-PASSENGER SEAT & AIR CONDITIONER & ICE COOL BOX),LIGHT BLUE,TRIM8#
sub58560-28471
main58560-28471-B1i199208-199408
W(BENCH 2-PASSENGER SEAT & AIR CONDITIONER & ICE COOL BOX),GRAY,TRIM1#
main58560-28471-E1i199208-199408
W(BENCH 2-PASSENGER SEAT & AIR CONDITIONER & ICE COOL BOX),GREIGE,TRIM4#
main58560-28471-J1i199208-199408
W(BENCH 2-PASSENGER SEAT & AIR CONDITIONER & ICE COOL BOX),BLUE,TRIM8#
main58560-28480-B0i199108-199308
W(BENCH 2-PASSENGER SEAT),LIGHT GRAY,TRIM1#
main58560-28480-E0i199108-199308
W(BENCH 2-PASSENGER SEAT),LIGHT GREIGE,TRIM4#
main58560-28480-J0i199108-199308
W(BENCH 2-PASSENGER SEAT),LIGHT BLUE,TRIM8#
main58560-28500-B0i199108-199208
LIGHT GRAY,TRIM1#
sub58560-28501
main58560-28500-E0i199108-199208
LIGHT GREIGE,TRIM4#
sub58560-28501
main58560-28500-J0i199108-199208
LIGHT BLUE,TRIM8#
sub58560-28501
main58560-28501-B1i199208-199308
GRAY,TRIM1#
main58560-28501-E1i199208-199308
GREIGE,TRIM4#
main58560-28501-J1i199208-199308
BLUE,TRIM8#
main58560-28520-B0i199108-199308
LIGHT GRAY,TRIM1#
main58560-28520-E0i199108-199308
LIGHT GREIGE,TRIM4#
main58560-28520-J0i199108-199308
LIGHT BLUE,TRIM8#
main58560-28540-B0i199108-199308
LIGHT GRAY,TRIM1#
sub58560-28540
sub58560-2J192
main58560-28540-B1i199308-199408
GRAY,TRIM1#
sub58560-28540
sub58560-2J192
main58560-28540-E0i199108-199308
LIGHT GREIGE,TRIM4#
sub58560-28540
sub58560-2J192
main58560-28540-E1i199308-199408
GREIGE,TRIM4#
sub58560-28540
sub58560-2J192
main58560-28540-J0i199108-199308
LIGHT BLUE,TRIM8#
sub58560-28540
sub58560-2J192
main58560-28540-J1i199308-199408
BLUE,TRIM8#
sub58560-28540
sub58560-2J192
main58560-28541-B2i199408-199608
BLUISH GRAY,TRIM1#
sub58560-2J192
main58560-28541-E2i199408-199608
MD. GREIGE,TRIM4#
sub58560-2J192
main58560-28560-B0i199108-199308
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
sub58560-28560
sub58560-2J211
main58560-28560-B1i199308-199408
W(CAPTAIN SEAT),GRAY,TRIM1#
sub58560-28560
sub58560-2J211
main58560-28560-E0i199108-199308
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
sub58560-28560
sub58560-2J211
main58560-28560-E1i199308-199408
W(CAPTAIN SEAT),GREIGE,TRIM4#
sub58560-28560
sub58560-2J211
main58560-28560-J0i199108-199308
W(CAPTAIN SEAT),LIGHT BLUE,TRIM8#
sub58560-28560
sub58560-2J211
main58560-28560-J1i199308-199408
W(CAPTAIN SEAT),BLUE,TRIM8#
sub58560-28560
sub58560-2J211
main58560-28570-B0i199108-199308
W(CAPTAIN SEAT & AIR CONDITIONER & ICE COOL BOX),LIGHT GRAY,TRIM1#
sub58560-28570
sub58560-2J221
main58560-28570-B0i199108-199308
W(CAPTAIN SEAT & ICE COOL BOX),LIGHT GRAY,TRIM1#
sub58560-28570
sub58560-2J221
main58560-28570-B1i199308-199408
W(CAPTAIN SEAT & ICE COOL BOX),GRAY,TRIM1#
sub58560-28570
sub58560-2J221
main58560-28570-B1i199308-199408
W(CAPTAIN SEAT & AIR CONDITIONER & ICE COOL BOX),GRAY,TRIM1#
sub58560-28570
sub58560-2J221
main58560-28570-E0i199108-199308
W(CAPTAIN SEAT & AIR CONDITIONER & ICE COOL BOX),LIGHT GREIGE,TRIM4#
sub58560-28570
sub58560-2J221
main58560-28570-E0i199108-199308
W(CAPTAIN SEAT & ICE COOL BOX),LIGHT GREIGE,TRIM4#
sub58560-28570
sub58560-2J221
main58560-28570-E1i199308-199408
W(CAPTAIN SEAT & ICE COOL BOX),GREIGE,TRIM4#
sub58560-28570
sub58560-2J221
main58560-28570-E1i199308-199408
W(CAPTAIN SEAT & AIR CONDITIONER & ICE COOL BOX),GREIGE,TRIM4#
sub58560-28570
sub58560-2J221
main58560-28570-J0i199108-199308
W(CAPTAIN SEAT & ICE COOL BOX),LIGHT BLUE,TRIM8#
sub58560-28570
sub58560-2J221
main58560-28570-J0i199108-199308
W(CAPTAIN SEAT & AIR CONDITIONER & ICE COOL BOX),LIGHT BLUE,TRIM8#
sub58560-28570
sub58560-2J221
main58560-28570-J1i199308-199408
W(CAPTAIN SEAT & AIR CONDITIONER & ICE COOL BOX),BLUE,TRIM8#
sub58560-28570
sub58560-2J221
main58560-28570-J1i199308-199408
W(CAPTAIN SEAT & ICE COOL BOX),BLUE,TRIM8#
sub58560-28570
sub58560-2J221
main58560-2J190-B0i199401-199408
GRAY,TRIM1#
sub58560-2J192
main58560-2J190-E0i199401-199408
GREIGE,TRIM4#
sub58560-2J192
main58560-2J190-J0i199401-199408
BLUE,TRIM8#
sub58560-2J192
main58560-2J191-B1i199408-199608
BLUISH GRAY,TRIM1#
sub58560-2J192
main58560-2J191-E1i199408-199608
MD. GREIGE,TRIM4#
sub58560-2J192
main58560-2J192-B1i199608-199707
BLUISH GRAY,TRIM1#
main58560-2J192-E1i199608-199707
MD. GREIGE,TRIM4#
main58560-2J200-B0i199401-199408
GRAY,TRIM1#
main58560-2J200-E0i199401-199408
GREIGE,TRIM4#
main58560-2J200-J0i199401-199408
BLUE,TRIM8#
main58560-2J201-B1i199408-199608
BLUISH GRAY,TRIM1#
sub58560-2J201
main58560-2J201-E1i199408-199608
MD. GREIGE,TRIM4#
sub58560-2J201
main58560-2J202-B1i199608-199707
BLUISH GRAY,TRIM1#
main58560-2J202-E1i199608-199707
MD.GREIGE,TRIM4#
main58560-2J210-B0i199401-199408
W(CAPTAIN SEAT),GRAY,TRIM1#
sub58560-2J211
main58560-2J210-E0i199401-199408
W(CAPTAIN SEAT),GREIGE,TRIM4#
sub58560-2J211
main58560-2J210-J0i199401-199408
W(CAPTAIN SEAT),BLUE,TRIM8#
sub58560-2J211
main58560-2J211-B1i199408-199608
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main58560-2J211-E1i199408-199608
W(CAPTAIN SEAT),MD. GREIGE,TRIM4#
main58560-2J212-B1i199608-199707
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main58560-2J212-E1i199608-199707
W(CAPTAIN SEAT),MD. GREIGE,TRIM4#
main58560-2J220-B0i199401-199408
W(CAPTAIN SEAT & ICE COOL BOX),GRAY,TRIM1#
sub58560-2J221
main58560-2J220-E0i199401-199408
W(CAPTAIN SEAT & ICE COOL BOX),GREIGE,TRIM4#
sub58560-2J221
main58560-2J220-J0i199401-199408
W(CAPTAIN SEAT & ICE COOL BOX),BLUE,TRIM8#
sub58560-2J221
main58560-2J221-B1i199408-199608
W(CAPTAIN SEAT & ICE COOL BOX),BLUISH GRAY,TRIM1#
main58560-2J221-E1i199408-199608
W(CAPTAIN SEAT & ICE COOL BOX),MD.GREIGE,TRIM4#
main58560-2J222-B1i199608-199707
W(CAPTAIN SEAT & ICE COOL BOX),BLUISH GRAY,TRIM1#
main58560-2J222-E1i199608-199707
W(CAPTAIN SEAT & ICE COOL BOX),MD. GREIGE,TRIM4#
main58560-2J230-B0i199408-199608
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
sub58560-2J211
main58560-2J230-E0i199408-199608
W(CAPTAIN SEAT),MD. GREIGE,TRIM4#
sub58560-2J211
main58560-2J240-B0i199401-199408
W(AIR CONDITIONER & ICE COOL BOX),GRAY,TRIM1#
main58560-2J240-E0i199401-199408
W(AIR CONDITIONER & ICE COOL BOX),GREIGE,TRIM4#
main58560-2J240-J0i199401-199408
W(AIR CONDITIONER & ICE COOL BOX),BLUE,TRIM8#
main58560-2R050-B0i199408-199508
W(CAPTAIN SEAT & ICE COOL BOX),BLUISH GRAY,TRIM1#
sub58560-2J221
main58560-2R050-E0i199408-199508
W(CAPTAIN SEAT & ICE COOL BOX),MD. GREIGE,TRIM4#
sub58560-2J221
main58560-95D02-03i199001-199108
W(BENCH 2-PASSENGER SEAT & ICE COOL BOX),LIGHT GRAY,TRIM1#
main58560-95D02-04i199001-199108
W(BENCH 2-PASSENGER SEAT & ICE COOL BOX),LIGHT BLUE,TRIM8#
main58560-95D02-06i199001-199108
W(BENCH 2-PASSENGER SEAT & ICE COOL BOX),LIGHT TAN,TRIM4#
main58560-95D03-03i199001-199108
W(ICE COOL BOX),LIGHT GRAY,TRIM1#
main58560-95D03-04i199001-199108
W(ICE COOL BOX),LIGHT BLUE,TRIM8#
main58560-95D03-06i199001-199108
W(ICE COOL BOX),LIGHT TAN,TRIM4#
main58560-95D06-03i199001-199108
W(BENCH 2-PASSENGER SEAT),LIGHT GRAY,TRIM1#
main58560-95D06-04i199001-199108
W(BENCH 2-PASSENGER SEAT),LIGHT BLUE,TRIM8#
main58560-95D06-06i199001-199108
W(BENCH 2-PASSENGER SEAT),LIGHT TAN,TRIM4#
main58560-95D07-03i199001-199108
LIGHT GRAY,TRIM1#
main58560-95D07-04i199001-199108
LIGHT BLUE,TRIM8#
main58560-95D07-06i199001-199108
LIGHT TAN,TRIM4#
main58560-95D08-03i199001-199108
W(ICE COOL BOX),LIGHT GRAY,TRIM1#
main58560-95D08-04i199001-199108
W(ICE COOL BOX),LIGHT BLUE,TRIM8#
main58560-95D08-06i199001-199108
W(ICE COOL BOX),LIGHT TAN,TRIM4#
main58560-95D09-03i199001-199108
W(CAPTAIN SEAT & ICE COOL BOX),LIGHT GRAY,TRIM1#
main58560-95D09-04i199001-199108
W(CAPTAIN SEAT & ICE COOL BOX),LIGHT BLUE,TRIM8#
main58560-95D09-06i199001-199108
W(CAPTAIN SEAT & ICE COOL BOX),LIGHT TAN,TRIM4#
main58560-95D12-03i199001-199108
LIGHT GRAY,TRIM1#
main58560-95D12-04i199001-199108
LIGHT BLUE,TRIM8#
main58560-95D12-06i199001-199108
LIGHT TAN,TRIM4#
main58560-95D13-03i199001-199108
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main58560-95D13-04i199001-199108
W(CAPTAIN SEAT),LIGHT BLUE,TRIM8#
main58560-95D13-06i199001-199108
W(CAPTAIN SEAT),LIGHT TAN,TRIM4#
main58560-95D16-03i199001-199108
W(BENCH 2-PASSENGER SEAT & ICE COOL BOX),LIGHT GRAY,TRIM1#
sub58560-95D02
main58560-95D16-04i199001-199108
W(BENCH 2-PASSENGER SEAT & ICE COOL BOX),LIGHT BLUE,TRIM8#
sub58560-95D02
main58560-95D16-06i199001-199108
W(BENCH 2-PASSENGER SEAT & ICE COOL BOX),LIGHT TAN,TRIM4#
sub58560-95D02
main58560-95D17-03i199001-199108
W(ICE COOL BOX),LIGHT GRAY,TRIM1#
main58560-95D17-04i199001-199108
W(ICE COOL BOX),LIGHT BLUE,TRIM8#
main58560-95D17-06i199001-199108
W(ICE COOL BOX),LIGHT TAN,TRIM4#
main58560-95D18-03i199001-199108
W(BENCH 2-PASSENGER SEAT),LIGHT GRAY,TRIM1#
main58560-95D18-04i199001-199108
W(BENCH 2-PASSENGER SEAT),LIGHT BLUE,TRIM8#
main58560-95D18-06i199001-199108
W(BENCH 2-PASSENGER SEAT),LIGHT TAN,TRIM4#
main58560-95D19-03i199001-199108
LIGHT GRAY,TRIM1#
main58560-95D19-04i199001-199108
LIGHT BLUE,TRIM8#
main58560-95D19-06i199001-199108
LIGHT TAN,TRIM4#
58561CSILENCER, FRONT FLOOR, NO.1
main58561-95D00i199001-199707
main58561-95D01i199001-199308
58624DPAD, CENTER FLOOR SILENCER
main58624-28050i199001-199308
main58624-28140i199608-199707
W(CAPTAIN SEAT)
main58624-95D00i199001-199308
W(BENCH 2-PASSENGER SEAT)
main58624-95D00i199308-199707
main58624-95D02i199001-199108
W(CAPTAIN SEAT)
main58624-95D08i199108-199608
W(CAPTAIN SEAT)
58627APAD, CENTER FLOOR SILENCER, REAR
main58627-95D00i199001-199308
W(BENCH 2-PASSENGER SEAT)
main58627-95D00i199308-199707
main58627-95D01i199001-199308
67913PLATE, FRONT DOOR SCUFF, RH
main67913-95D00-03i199001-199308
GRAY,TRIM1#
sub67913-95D00
main67913-95D00-04i199001-199308
BLUE,TRIM8#
sub67913-95D00
main67913-95D00-05i199108-199308
GREIGE,TRIM4#
sub67913-95D00
main67913-95D00-06i199001-199108
TAN,TRIM4#
sub67913-95D00
main67913-95D00-B0i199308-199707
GRAY,TRIM1#
sub67913-95D00
main67913-95D00-E2i199308-199707
GREIGE,TRIM4#
sub67913-95D00
main67913-95D00-R9i199308-199408
BLUE,TRIM8#
sub67913-95D00
67914PLATE, FRONT DOOR SCUFF, LH
main67914-95D00-03i199001-199308
GRAY,TRIM1#
sub67914-95D00
main67914-95D00-04i199001-199308
BLUE,TRIM8#
sub67914-95D00
main67914-95D00-05i199108-199308
GREIGE,TRIM4#
sub67914-95D00
main67914-95D00-06i199001-199108
TAN,TRIM4#
sub67914-95D00
main67914-95D00-B0i199308-199707
GRAY,TRIM1#
sub67914-95D00
main67914-95D00-E2i199308-199707
GREIGE,TRIM4#
sub67914-95D00
main67914-95D00-R9i199308-199408
BLUE,TRIM8#
sub67914-95D00
67917APLATE, REAR DOOR SCUFF, RH
main67917-95D00-03i199001-199308
LIGHT GRAY,TRIM1#
sub67917-95D00
sub67917-95D01
main67917-95D00-03i199001-199308
W(BENCH 2-PASSENGER SEAT),LIGHT GRAY,TRIM1#
sub67917-95D00
sub67917-95D01
main67917-95D00-04i199001-199308
LIGHT BLUE,TRIM8#
sub67917-95D00
sub67917-95D01
main67917-95D00-04i199001-199308
W(BENCH 2-PASSENGER SEAT),LIGHT BLUE,TRIM8#
sub67917-95D00
sub67917-95D01
main67917-95D00-05i199108-199308
LIGHT GREIGE,TRIM4#
sub67917-95D00
sub67917-95D01
main67917-95D00-05i199108-199308
W(BENCH 2-PASSENGER SEAT),LIGHT GREIGE,TRIM4#
sub67917-95D00
sub67917-95D01
main67917-95D00-06i199001-199108
W(BENCH 2-PASSENGER SEAT),LIGHT TAN,TRIM4#
sub67917-95D00
sub67917-95D01
main67917-95D00-06i199001-199108
LIGHT TAN,TRIM4#
sub67917-95D00
sub67917-95D01
main67917-95D00-B0i199308-199707
GRAY,TRIM1#
sub67917-95D00
sub67917-95D01
main67917-95D00-E2i199308-199707
GREIGE,TRIM4#
sub67917-95D00
sub67917-95D01
main67917-95D00-R9i199308-199408
BLUE,TRIM8#
sub67917-95D00
sub67917-95D01
main67917-95D01-03i199001-199308
W(CAPTAIN SEAT),GRAY,TRIM1#
sub67917-95D01
main67917-95D01-03i199001-199308
GRAY,TRIM1#
sub67917-95D01
main67917-95D01-04i199001-199308
W(CAPTAIN SEAT),BLUE,TRIM8#
sub67917-95D01
main67917-95D01-04i199001-199308
BLUE,TRIM8#
sub67917-95D01
main67917-95D01-05i199108-199308
GREIGE,TRIM4#
sub67917-95D01
main67917-95D01-05i199108-199308
W(CAPTAIN SEAT),GREIGE,TRIM4#
sub67917-95D01
main67917-95D01-06i199001-199108
TAN,TRIM4#
sub67917-95D01
main67917-95D01-06i199001-199108
W(CAPTAIN SEAT),TAN,TRIM4#
sub67917-95D01
main67917-95D01-B0i199308-199707
W(CAPTAIN SEAT),GRAY,TRIM1#
sub67917-95D01
main67917-95D01-E2i199308-199707
W(CAPTAIN SEAT),GREIGE,TRIM4#
sub67917-95D01
main67917-95D01-R9i199308-199408
W(CAPTAIN SEAT),BLUE,TRIM8#
sub67917-95D01
67935PLATE, BACK DOOR SCUFF
main67935-95D00-03i199001-199308
GRAY,TRIM1#
sub67935-95D00
main67935-95D00-04i199001-199308
BLUE,TRIM8#
sub67935-95D00
main67935-95D00-05i199108-199308
GREIGE,TRIM4#
sub67935-95D00
main67935-95D00-06i199001-199108
TAN,TRIM4#
sub67935-95D00
main67935-95D00-B0i199308-199707
GRAY,TRIM1#
sub67935-95D00
main67935-95D00-E2i199308-199707
GREIGE,TRIM4#
sub67935-95D00
main67935-95D00-R9i199308-199408
BLUE,TRIM8#
sub67935-95D00
7455
6792117030RETAINER, FRONT DOOR SCUFF PLATE
main67921-17030
6792118010RETAINER, FRONT DOOR SCUFF PLATE
main67921-18010
6792195501RETAINER, FRONT DOOR SCUFF PLATE
main67921-95501
6792195D04RETAINER, FRONT DOOR SCUFF PLATE
main67921-95D04
9016750043
main90167-50043
9018905055
main90189-05055
9018905110
main90189-05110
9046709123
main90467-09123
9053018002
main90530-18002
9356055014
main93560-55014

19 parts on this diagram · 1 diagram in section

Toyota PREVIA FLOOR MAT & SILENCER PAD — Parts Diagram | EPC Data
