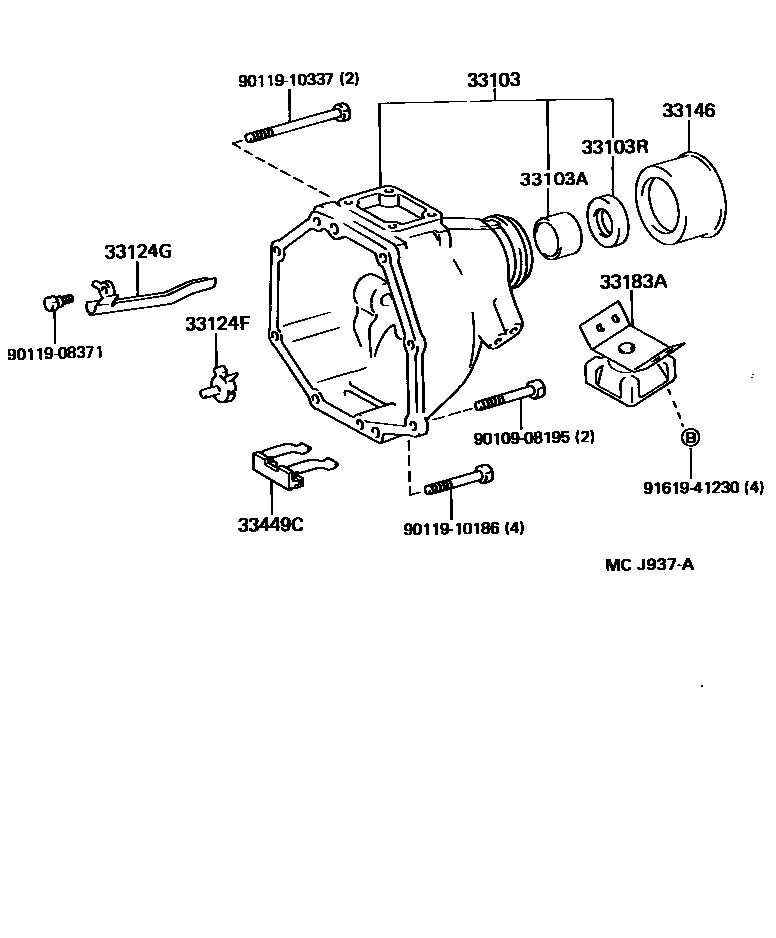

Toyota PREVIA — EXTENSION HOUSING (MTM)

0001 1G59 0002 1G57

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-28050iTCR10..MTM199001-199308

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-73120iTCR10..MTM199001-199308

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38032iTCR10..MTM199001-199308

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33124-36010iTCR10..MTM199001-199308

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-28011iTCR10..MTM199001-199308

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iTCR10..MTM199001-199308

sub33146-30020

33183ADAMPER, EXTENSION HOUSING DYNAMIC(MTM)

main33183-28020iTCR10..MTM199001-199308

sub33183-28021

33449CMAGNET, TRANSMISSION (MTM)

main33449-26010iTCR10,20..MTM199001-199308

9010908195

main90109-08195

9011908371

main90119-08371

9011910186

main90119-10186

9011910337

main90119-10337

9161941230

main91619-41230

13 parts on this diagram · 2 diagrams in section
