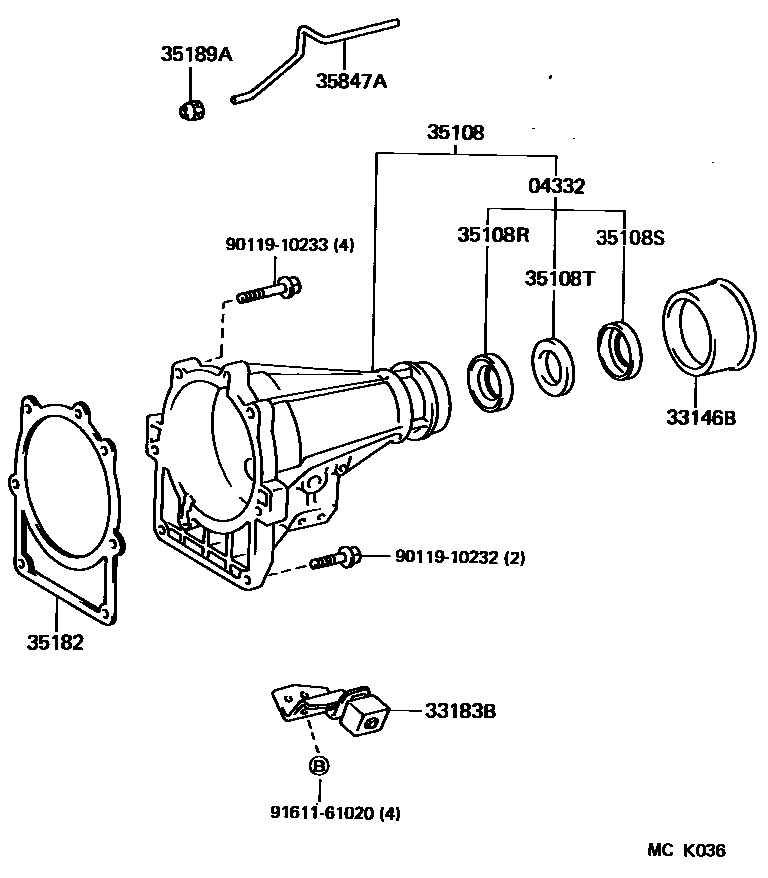

Toyota PREVIA — EXTENSION HOUSING (ATM)

0001 1A46DE 0002 1A46DF 0003 1A340E 0004 1A340F

04332SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30030iTCR10..ATM..EFI199001-199608

33146BDEFLECTOR, EXTENSION HOUSING DUST

main33146-28010iTCR10..ATM199001-199203

sub33146-30020

main33146-30010iTCR10..ATM199203-199411

sub33146-30020

main33146-30020iTCR10199411-199707

33183BDAMPER, EXTENSION HOUSING DYNAMIC(ATM)

main33183-28010iTCR10..ATM199001-199608

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-24031iTCR10..ATM199001-199308

main35108-28020iTCR10..EFI199308-199608

main35108-35030iTCR10..SPC199401-199501

sub35108-35050

main35108-35050iTCR10..SPC199501-199707

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-38030iTCR10..ATM199001-199308

sub90311-38032

main90311-38032iTCR10..EFI199308-199608

main90311-40001iTCR10..SPC199401-199707

35108SRETAINER, EXTENSION HOUSING DUST SEAL (ATM)

main33145-30010iTCR10..ATM..EFI199001-199608

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iTCR10..ATM..EFI199001-199608

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iTCR10,20..ATM199001-199012

sub35182-28010

main35182-28010iTCR10,20..ATM199012-199707

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iTCR10..ATM199001-199707

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iTCR10..ATM;TCR20..SPC199001-199707

9011910232

main90119-10232

9011910233

main90119-10233

9161161020

main91611-61020

13 parts on this diagram · 4 diagrams in section
