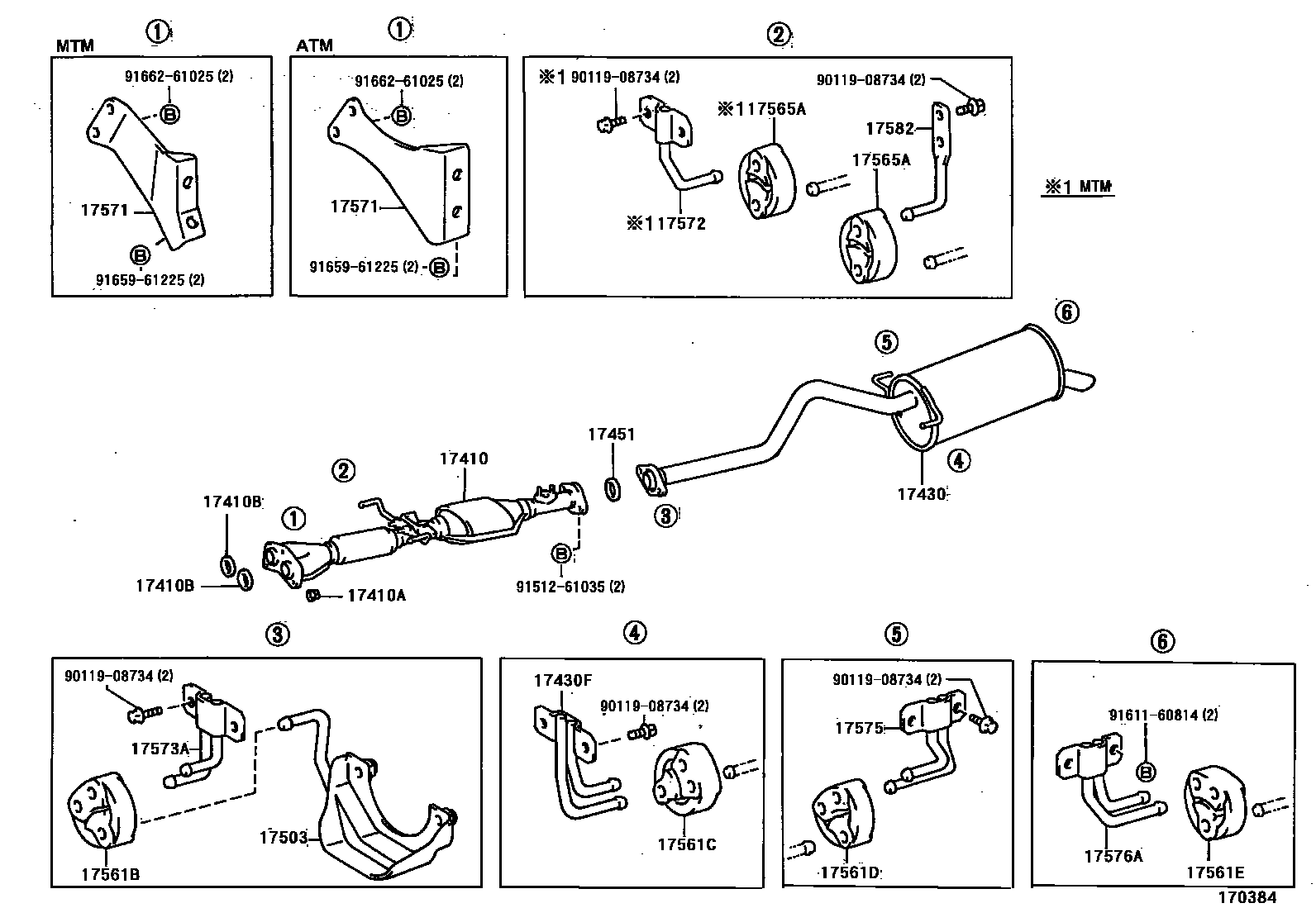

Toyota PREVIA — EXHAUST PIPE
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)
17451GASKET, EXHAUST PIPE
FR
RR
RR
17503BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR
17561BSUPPORT, EXHAUST PIPE, NO.1
17561CSUPPORT, EXHAUST PIPE, NO.1
17561DSUPPORT, EXHAUST PIPE, NO.1
17561ESUPPORT, EXHAUST PIPE, NO.1
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
17582BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER
9011908734
main90119-08734
9151261035
main91512-61035
9161160814
main91611-60814
9165961225
main91659-61225
9166261025
main91662-61025
23 parts on this diagram · 2 diagrams in section
