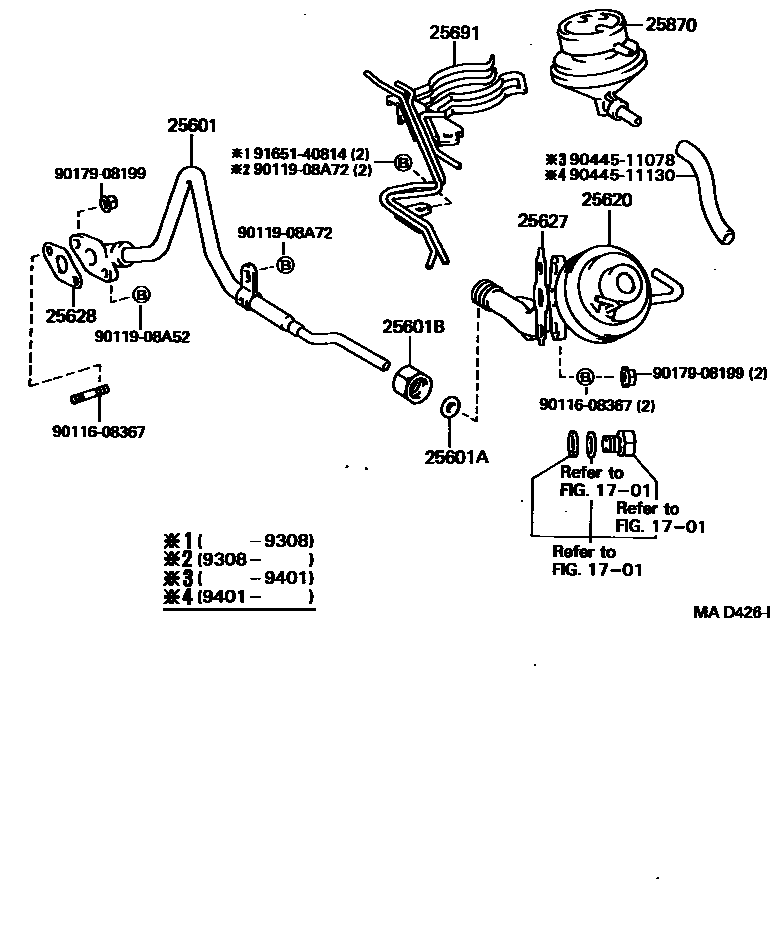

Toyota PREVIA — EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-76010i2TZ#..TCR10,20199001-199707

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042i2TZ#..TCR10,20199001-199707

25601BNUT, UNION, EGR PIPE, NO.1

main90402-20073i2TZ#..TCR10,20199001-199707

25620VALVE ASSY, EGR

main25620-76010i2TZFE..TCR10,20199001-199608

main25620-76020i2TZFZE..TCR10,20199401-199707

25627GASKET, EGR VALVE

main25627-76010i2TZ#..TCR10,20199001-199707

25628GASKET, EGR INLET

main25628-76010i2TZ#..TCR10,20199001-199707

25691BRACKET, EGR VACUUM MODULATOR

main25691-76010i2TZFE..TCR10,20199001-199608

main25691-76020i2TZFZE..TCR10,20199401-199707

25870VALVE ASSY, EGR VACUUM MODULATOR

main25870-76010i2TZFE..TCR10,20199001-199508

main25870-76010i2TZFE..TCR10..USA199208-199408

CALIFORNIA SPEC

main25870-76030i2TZFE..TCR10199208-199608

main25870-76040i2TZFZE..TCR10,20199401-199707

9011608367

main90116-08367

9011908A52

main90119-08A52

9011908A72

main90119-08A72

9017908199

main90179-08199

9044511078

main90445-11078

9044511130

main90445-11130

9165140814

main91651-40814

16 parts on this diagram · 2 diagrams in section
