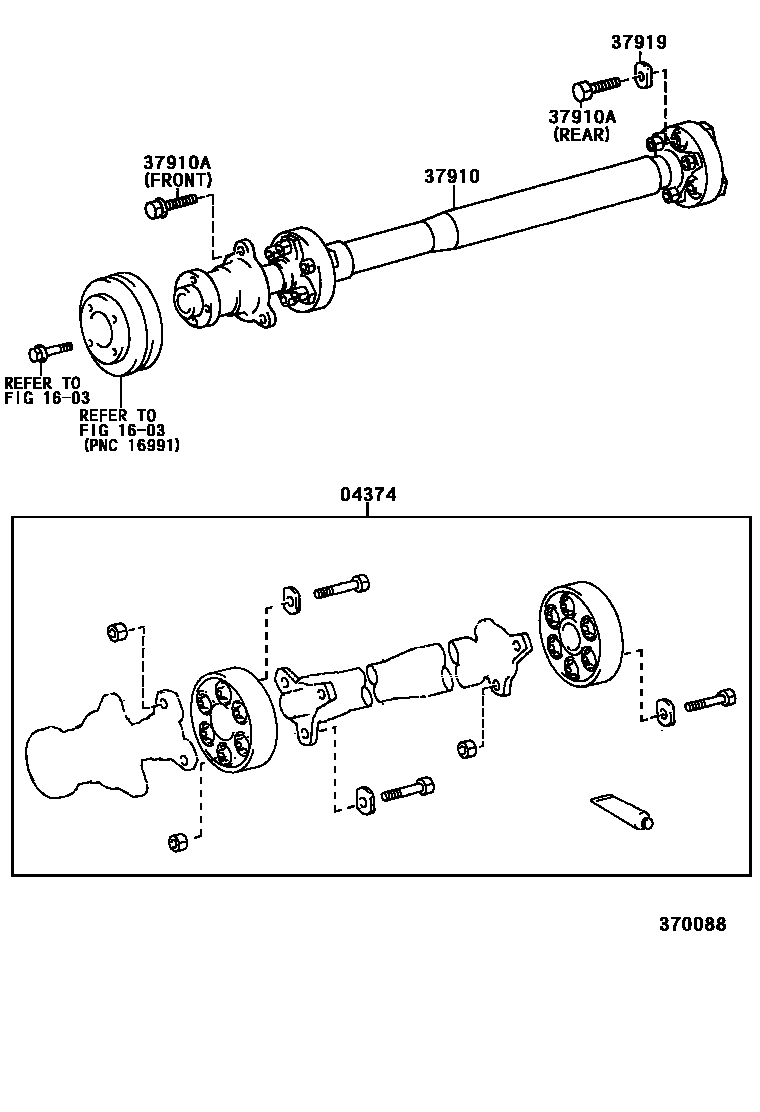

Toyota PREVIA — EQUIPMENT DRIVE SHAFT

04374COUPLING KIT, EQUIPMENT DRIVE SHAFT

main04374-28010iTCR10,20199401-199707

sub04374-28011

1603

37910SHAFT ASSY, EQUIPMENT DRIVE

main37910-28010iTCR10,20199001-199401

sub37910-28030

main37910-28050iTCR10,20199401-199707

37910ABOLT (FOR EQUIPMENT DRIVE SHAFT)

main90101-08143iTCR10,20199001-199707

REAR

main90119-10648iTCR10,20199001-199707

FRONT

37919WASHER, EQUIPMENT DRIVE SHAFT

main37919-28010iTCR10,20199001-199707

5 parts on this diagram · 1 diagram in section
