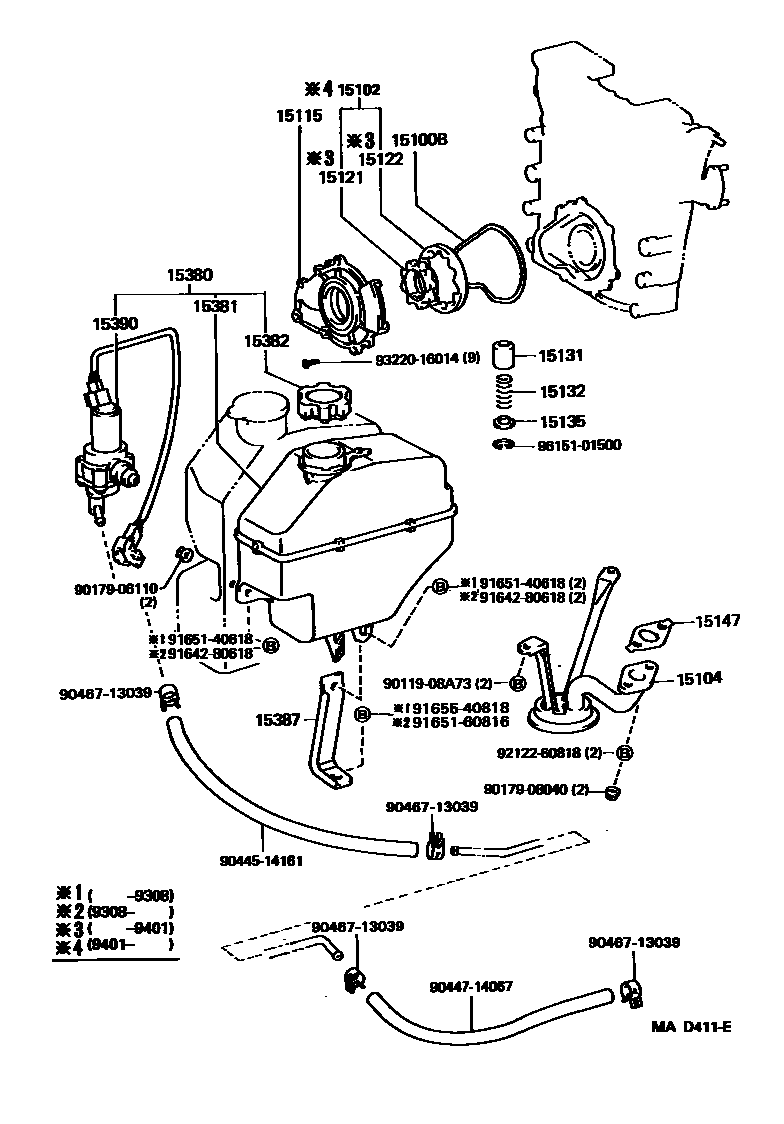

Toyota PREVIA — ENGINE OIL PUMP

0001 1 0002 1

15100BRING, O(FOR OIL PUMP)

main15188-76040i2TZ#..TCR10,20199001-199707

15102ROTOR SET, OIL PUMP

main15103-75010i2TZFE..TCR10,20199401-199608

main15103-76020i2TZFZE..TCR10,20199401-199707

15104STRAINER SUB-ASSY, OIL

main15104-76040i2TZ#..TCR10,20199001-199707

15115COVER, OIL PUMP

main15115-76040i2TZ#..TCR10,20199001-199707

15121GEAR, OIL PUMP DRIVE

main15121-75010i2TZFE..TCR10,20199001-199401

15122GEAR, OIL PUMP DRIVEN

main15122-62010i2TZFE..TCR10,20199001-199401

15131VALVE, OIL PUMP RELIEF

main15131-24010i2TZ#..TCR10,20199001-199707

15132SPRING, OIL PUMP RELIEF VALVE

main15132-75010i2TZ#..TCR10,20199001-199707

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i2TZ#..TCR10,20199001-199707

15147GASKET, OIL STRAINER

main15147-76020i2TZ#..TCR10,20199001-199707

15380TANK & MOTOR ASSY, OIL

main15380-76010i2TZFE..TCR10,20199001-199608

main15380-76020i2TZFZE..TCR10,20199401-199411

main15380-76021i2TZFZE..TCR10,20199411-199707

15381TANK, OIL

main15381-76010i2TZFE..TCR10,20199001-199608

main15381-76020i2TZFZE..TCR10,20199401-199707

15382CAP, OIL TANK

main15382-76010i2TZ#..TCR10,20199001-199707

15387BRACKET, OIL TANK

main15387-76010i2TZFE..TCR10,20199001-199608

15390MOTOR & PUMP ASSY, OIL TANK

main15390-64020i2TZFZE..TCR10,20199401-199707

main15390-76010i2TZFE..TCR10,20199001-199608

9011908A73

main90119-08A73

9017906110

main90179-06110

9017908040

main90179-08040

9044514161

main90445-14161

9044714067

main90447-14067

9046713039

main90467-13039

9164280618

main91642-80618

9165140618

main91651-40618

9165160816

main91651-60816

9165540818

main91655-40818

9212260818

main92122-60818

9322016014

main93220-16014

9615101500

main96151-01500

28 parts on this diagram · 2 diagrams in section
