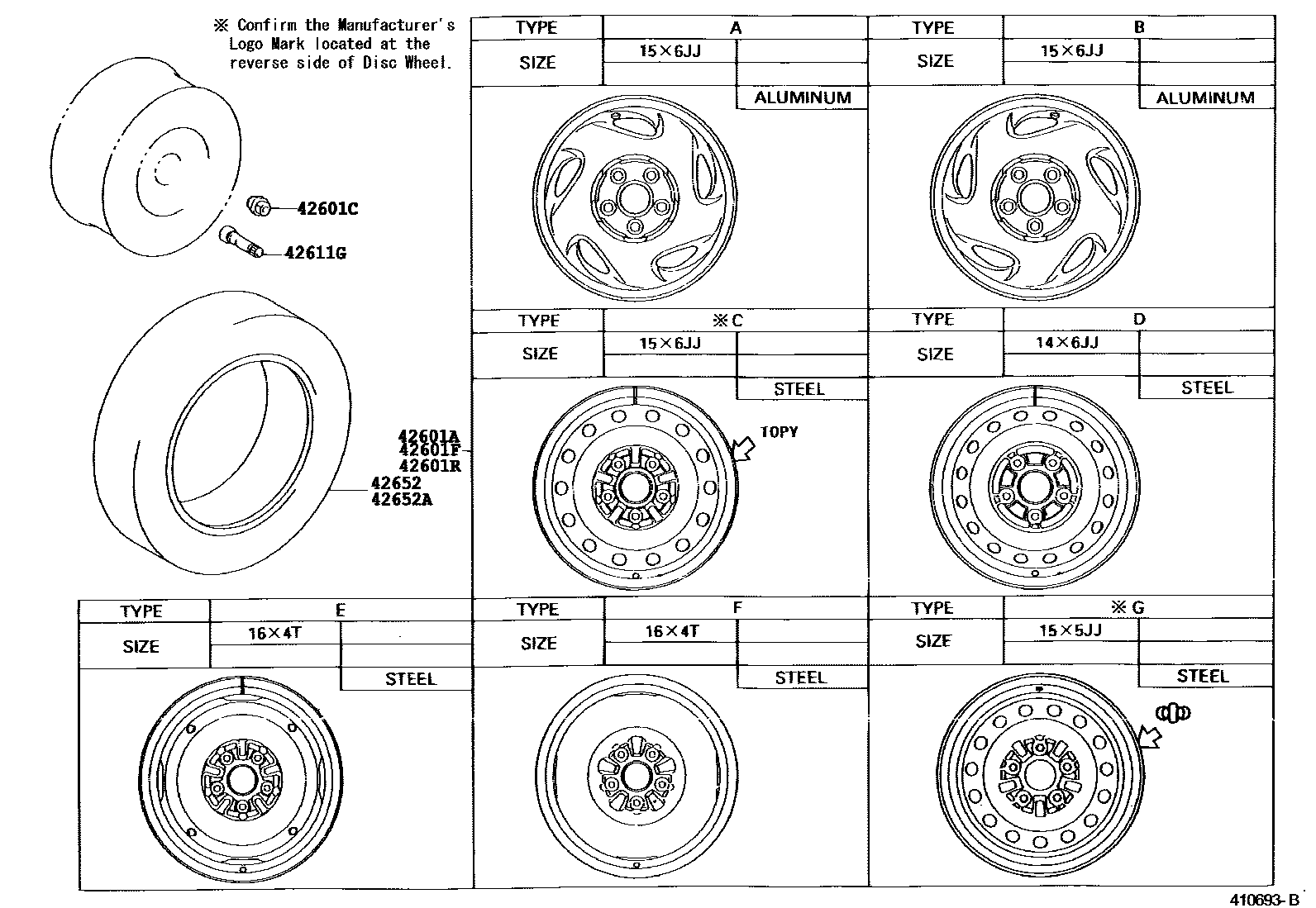

Toyota PREVIA — DISC WHEEL & WHEEL CAP
42601AWHEEL, DISC (FOR SPARE)
14X6JJ,TYPE D:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5
14X6JJ,TYPE D:REFER TO ILLUSTRATION,SILVER,041 ,046 ,3H8 ,3J7 ,4K9 ,4L6 ,568 ,6L3,8G2 ,8H3 ,8H5
14X6JJ,TYPE D:REFER TO ILLUSTRATION,BLACK
15X6JJ,TYPE C:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5
15X6JJ,TYPE C:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL),SILVER,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5
15X6JJ,TYPE C:REFER TO ILLUSTRATION,SILVER,041 ,046 ,3H8 ,3J7 ,4K9 ,4L6 ,568 ,6L3,8G2 ,8H3 ,8H5
15X6JJ,TYPE C:REFER TO ILLUSTRATION,BLACK
15X6JJ,TYPE G:REFER TO ILLUSTRATION,BLACK
16X4T,TYPE F:REFER TO ILLUSTRATION,TOPY
15X6JJ,CHINA SPEC,TYPE A
42601CNUT, HUB (FOR AXLE)
W(ALUMINUM WHEEL) OR CHINA SPEC
W(ALUMINUM WHEEL)
42601FWHEEL, DISC (FOR FRONT)
15X6JJ,TYPE A:REFER TO ILLUSTRATION, W(ALUMINUM WHEEL),RH
15X6JJ,TYPE B:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL),LH
14X6JJ,TYPE D:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5
14X6JJ,TYPE D:REFER TO ILLUSTRATION,SILVER,041 ,046 ,3H8 ,3J7 ,4K9 ,4L6 ,568 ,6L3,8G2 ,8H3 ,8H5
14X6JJ,TYPE D:REFER TO ILLUSTRATION,BLACK
15X6JJ,TYPE C:REFER TO ILLUSTRATION,SILVER,041 ,046 ,3H8 ,3J7 ,4K9 ,4L6 ,568 ,6L3,8G2 ,8H3 ,8H5
15X6JJ,TYPE C:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5
15X6JJ,STEEL WHEEL,TYPE C,BLACK
15X6JJ,TYPE C:REFER TO ILLUSTRATION,BLACK
15X6JJ,STEEL WHEEL,TYPE G,BLACK
15X6JJ,TYPE G:REFER TO ILLUSTRATION,BLACK
15X6JJ,ALUMINUM WHEEL OR CHINA SPEC,TYPE A,RH
15X6JJ,TYPE A:REFER TO ILLUSTRATION, W(ALUMINUM WHEEL),RH
15X6JJ,TYPE B:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL),LH
15X6JJ,ALUMINUM WHEEL OR CHINA SPEC,TYPE B,LH
42601RWHEEL, DISC (FOR REAR)
15X6JJ,W(ALUMINUM WHEEL),RH,TYPE A
15X6JJ,W(ALUMINUM WHEEL),LH,TYPE B
14X6JJ,TYPE D:REFER TO ILLUSTRATION,SILVER,041 ,046 ,3H8 ,3J7 ,4K9 ,4L6 ,568 ,6L3,8G2 ,8H3 ,8H5
14X6JJ,TYPE D:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5
14X6JJ,TYPE D:REFER TO ILLUSTRATION,BLACK
15X6JJ,TYPE C:REFER TO ILLUSTRATION,SILVER,041 ,046 ,3H8 ,3J7 ,4K9 ,4L6 ,568 ,6L3,8G2 ,8H3 ,8H5
15X6JJ,TYPE C:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5
15X6JJ,TYPE C:REFER TO ILLUSTRATION,BLACK
15X6JJ,STEEL WHEEL,TYPE C,BLACK
15X6JJ,TYPE G:REFER TO ILLUSTRATION,BLACK
15X6JJ,STEEL WHEEL,TYPE G,BLACK
15X6JJ,TYPE A:REFER TO ILLUSTRATION, W(ALUMINUM WHEEL),RH
15X6JJ,ALUMINUM WHEEL OR CHINA SPEC,TYPE A,RH
15X6JJ,ALUMINUM WHEEL OR CHINA SPEC,TYPE B,LH
15X6JJ,TYPE B:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL),LH
42611GVALVE (FOR TUBELESS TIRE)
42652TIRE
215/65R15,W(TUBE),CHINA SPEC
P205/75R14
P215/65R15
P215/65R15
42652ATIRE (FOR SPARE)
215/65R15,W(TUBE),CHINA SPEC
P205/75R14
P215/65R15
P215/65R15
7 parts on this diagram · 3 diagrams in section
