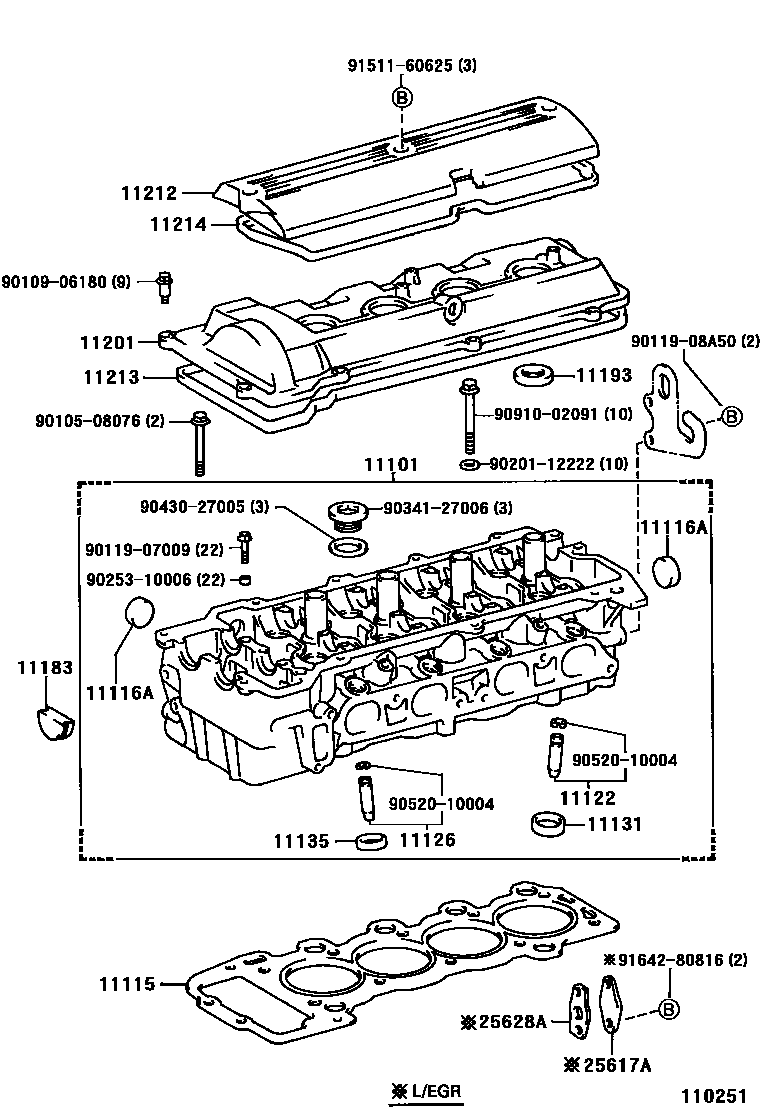

Toyota PREVIA — CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
CALIFORNIA SPEC
11115GASKET, CYLINDER HEAD
T=1.25
11116APLUG, TIGHT, NO.1
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD,CHINA SPEC
O/S 0.03
O/S 0.03,CHINA SPEC
11135SEAT, EXHAUST VALVE
STD,CHINA SPEC
STD
O/S 0.03,CHINA SPEC
O/S 0.03
11183PLUG, SEMICIRCULAR
11193GASKET, SPARK PLUG TUBE
11201COVER SUB-ASSY, CYLINDER HEAD
11212COVER, CYLINDER HEAD, NO.2
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
25617APLATE, EGR HOLE COVER, NO.2
CHINA SPEC
25628AGASKET, EGR HOLE COVER PLATE, NO.2
CHINA SPEC
9010508076
main90105-08076
9010906180
main90109-06180
9011907009
main90119-07009
9011908A50
main90119-08A50
9020112222
main90201-12222
9025310006
main90253-10006
9034127006
main90341-27006
9043027005
main90430-27005
9052010004
main90520-10004
9091002091
main90910-02091
9151160625
main91511-60625
9164280816
main91642-80816
27 parts on this diagram · 1 diagram in section
