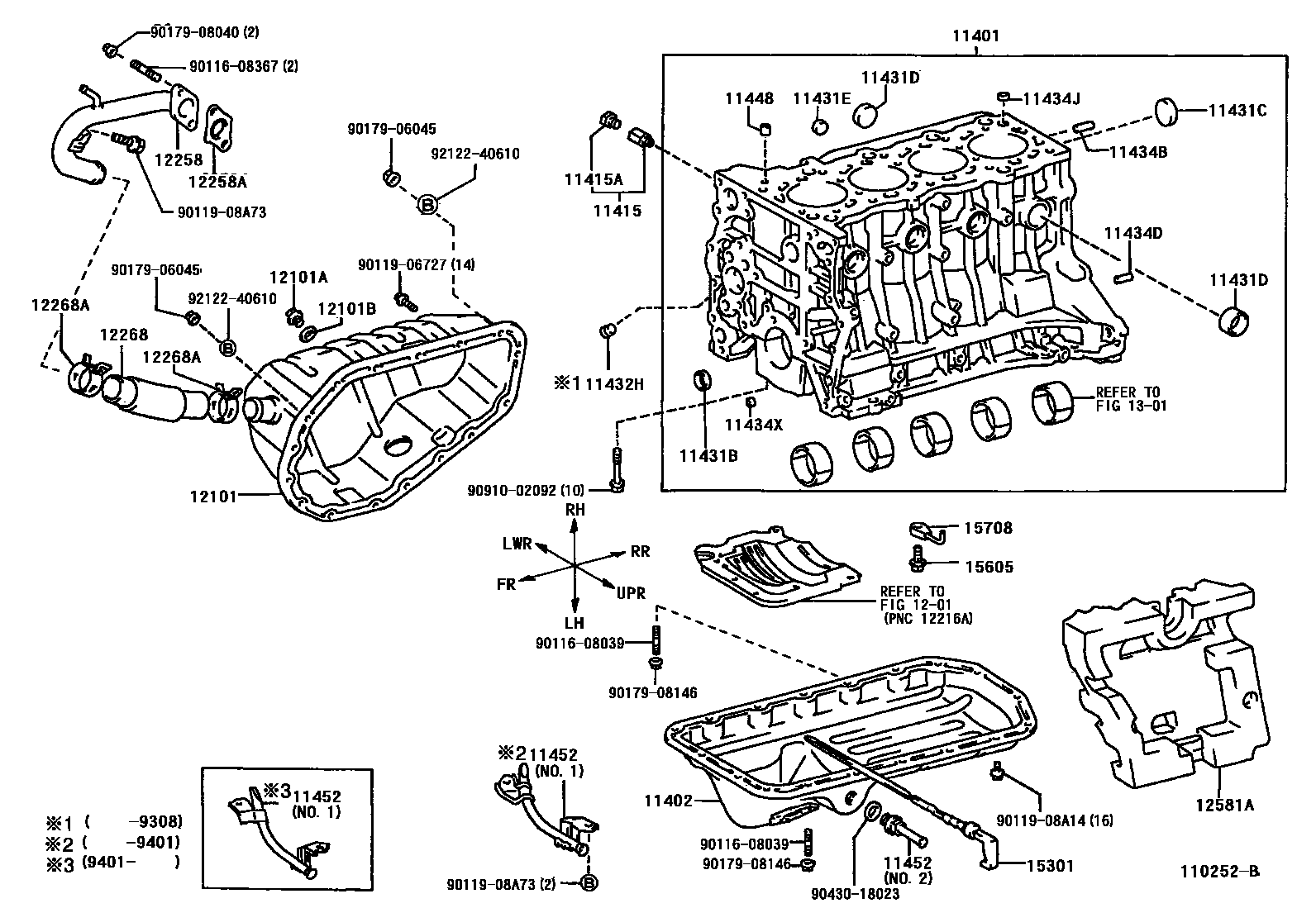

Toyota PREVIA — CYLINDER BLOCK
11402CRANKCASE SUB-ASSY
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
11432HPLUG, W/HEAD TAPER SCREW, NO.5
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=22,OD=10
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434XPIN, RING(FOR CHAIN CACE)
11448ORIFICE, CYLINDER BLOCK OIL
11452GUIDE, OIL LEVEL GAGE
NO.1
NO.1
NO.2
1201
12101PAN SUB-ASSY, OIL
12258PIPE, OIL RETURN
12258AGASKET, OIL RETURN PIPE
12268HOSE, OIL RETURN
12268ACLIP(FOR OIL RETURN HOSE)
sub90467-34004
12581AINSULATOR, CYLINDER BLOCK, NO.1
1301
15605VALVE SUB-ASSY, OIL CHECK
15708NOZZLE SUB-ASSY, OIL, NO.1
9011608039
main90116-08039
9011608367
main90116-08367
9011906727
main90119-06727
9011908A14
main90119-08A14
9011908A73
main90119-08A73
9017906045
main90179-06045
9017908040
main90179-08040
9017908146
main90179-08146
9043018023
main90430-18023
9091002092
main90910-02092
9212240610
main92122-40610
39 parts on this diagram · 1 diagram in section
