Toyota PREVIA — CONSOLE BOX & BRACKET

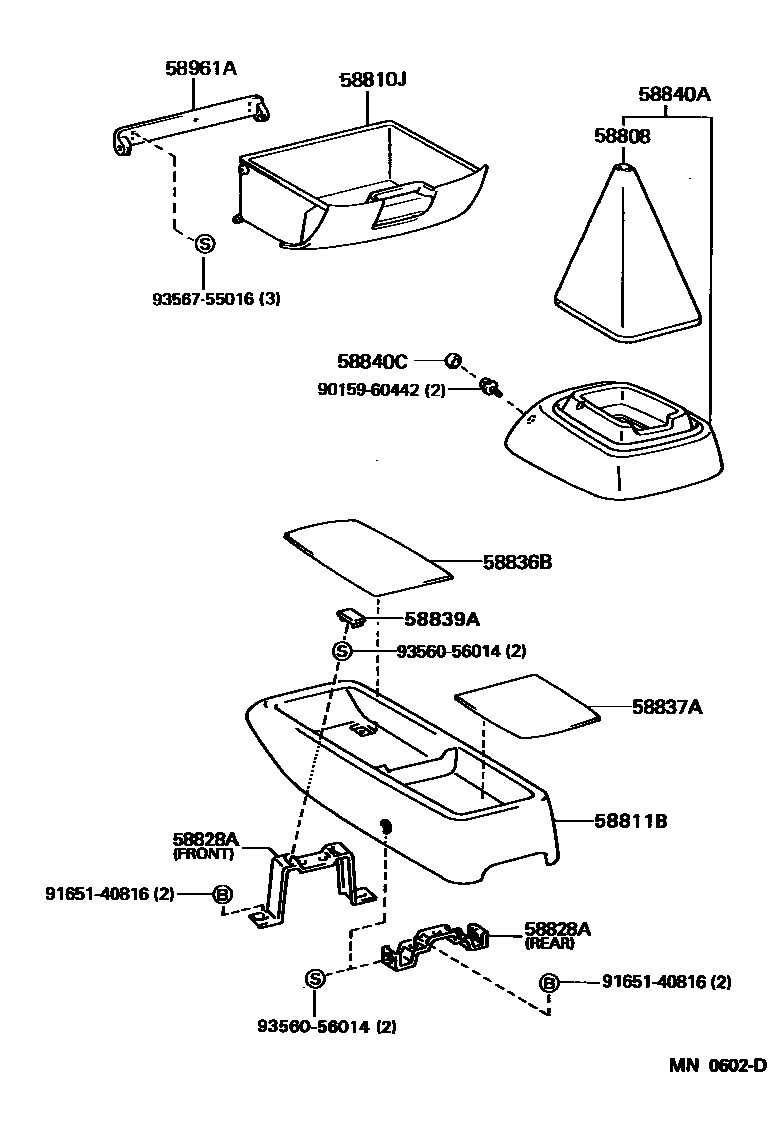

Parts diagram
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-95D00-03i199001-199308
GRAY,TRIM1#
sub58808-95D00
main58808-95D00-04i199001-199308
BLUE,TRIM8#
sub58808-95D00
main58808-95D00-05i199108-199308
GREIGE,TRIM4#
sub58808-95D00
main58808-95D00-06i199001-199108
TAN,TRIM4#
sub58808-95D00
58810JBOX ASSY, CONSOLE
main58810-95D34-03i199001-199308
GRAY,TRIM1#
sub58810-95D34
main58810-95D34-04i199001-199308
BLUE,TRIM8#
sub58810-95D34
main58810-95D34-05i199108-199308
GREIGE,TRIM4#
sub58810-95D34
main58810-95D34-06i199001-199108
TAN,TRIM4#
sub58810-95D34
main58810-95D34-44i199308-199707
GREIGE,TRIM4#
sub58810-95D34
main58810-95D34-B0i199308-199707
GRAY,TRIM1#
sub58810-95D34
main58810-95D34-J0i199308-199408
BLUE,TRIM8#
sub58810-95D34
58811BBOX, CONSOLE
main58811-28080-B0i199108-199707
GRAY,TRIM1#
main58811-28080-E1i199108-199707
GREIGE,TRIM4#
main58811-28080-J0i199108-199408
BLUE,TRIM8#
58828ABRACKET, CONSOLE BOX, LOWER
main58828-28030i199108-199707
FRONT
main58828-28040i199108-199707
REAR
58836BPAD, CONSOLE BOX SILENCER, NO.1
main58836-28030-B0i199308-199707
GRAY,TRIM1#
sub58836-28030
main58836-28030-E0i199308-199707
GREIGE,TRIM4#
sub58836-28030
main58836-28030-J0i199308-199408
BLUE,TRIM8#
sub58836-28030
58837APAD, CONSOLE BOX SILENCER, NO.2
main58837-28010-B0i199308-199707
GRAY,TRIM1#
sub58837-28010
main58837-28010-E0i199308-199707
GREIGE,TRIM4#
sub58837-28010
main58837-28010-J0i199308-199408
BLUE,TRIM8#
sub58837-28010
58839ACOVER, CONSOLE BOX HOLE
main58839-28010-B0i199108-199707
GRAY,TRIM1#
sub58839-28010
main58839-28010-E1i199108-199707
GREIGE,TRIM4#
sub58839-28010
main58839-28010-J0i199108-199408
BLUE,TRIM8#
sub58839-28010
58840ACOVER ASSY, SHIFTING HOLE
main58840-95D00-03i199001-199308
GRAY,TRIM1#
sub58840-95D00
main58840-95D00-04i199001-199308
BLUE,TRIM8#
sub58840-95D00
main58840-95D00-05i199108-199308
GREIGE,TRIM4#
sub58840-95D00
main58840-95D00-06i199001-199108
TAN,TRIM4#
sub58840-95D00
58840CCAP
main90339-12007-03i199001-199308
LIGHT GRAY,TRIM1#
sub90339-12007
main90339-12007-04i199001-199308
LIGHT BLUE,TRIM8#
sub90339-12007
main90339-12007-05i199108-199308
LIGHT GREIGE,TRIM4#
sub90339-12007
main90339-12007-06i199001-199108
LIGHT TAN,TRIM4#
sub90339-12007
58961AHINGE, CONSOLE COMPARTMENT DOOR MALE
main58961-95D00i199001-199707
9015960442
main90159-60442
9165140816
main91651-40816
9356056014
main93560-56014
9356755016
main93567-55016

14 parts on this diagram · 1 diagram in section
