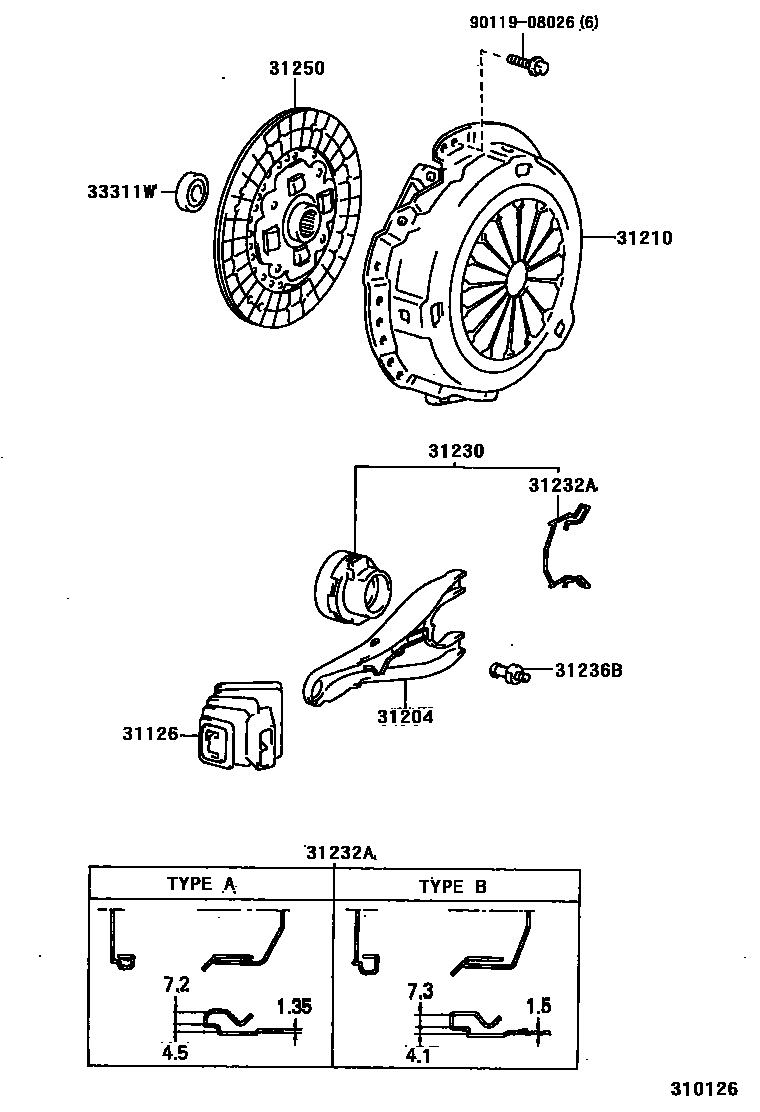

Toyota PREVIA — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-26020iTCR10,20..MTM199001-199308

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iTCR10,20..MTM199001-199308

31210COVER ASSY, CLUTCH

main31210-28030iTCR10,20..MTM199001-199308

sub31210-35280

31230BEARING ASSY, CLUTCH RELEASE

main31230-35090iTCR10,20..MTM199001-199308

sub31230-35091

31232ACLIP, RELEASE BEARING HUB

main31232-35020iTCR10,20..MTM199001-199308

TYPE A:REFER TO ILLUSTRATION

main31232-35040iTCR10,20..MTM199001-199308

TYPE B:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-30060iTCR10,20..MTM199001-199308

31250DISC ASSY, CLUTCH

main31250-28080iTCR10,20..MTM199001-199005

sub31250-28081

main31250-28081iTCR10,20..MTM199005-199301

sub31250-28082

main31250-28082iTCR10..MTM199301-199308

sub31250-28083

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iTCR10,20..MTM199001-199308

sub90363-12024

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
