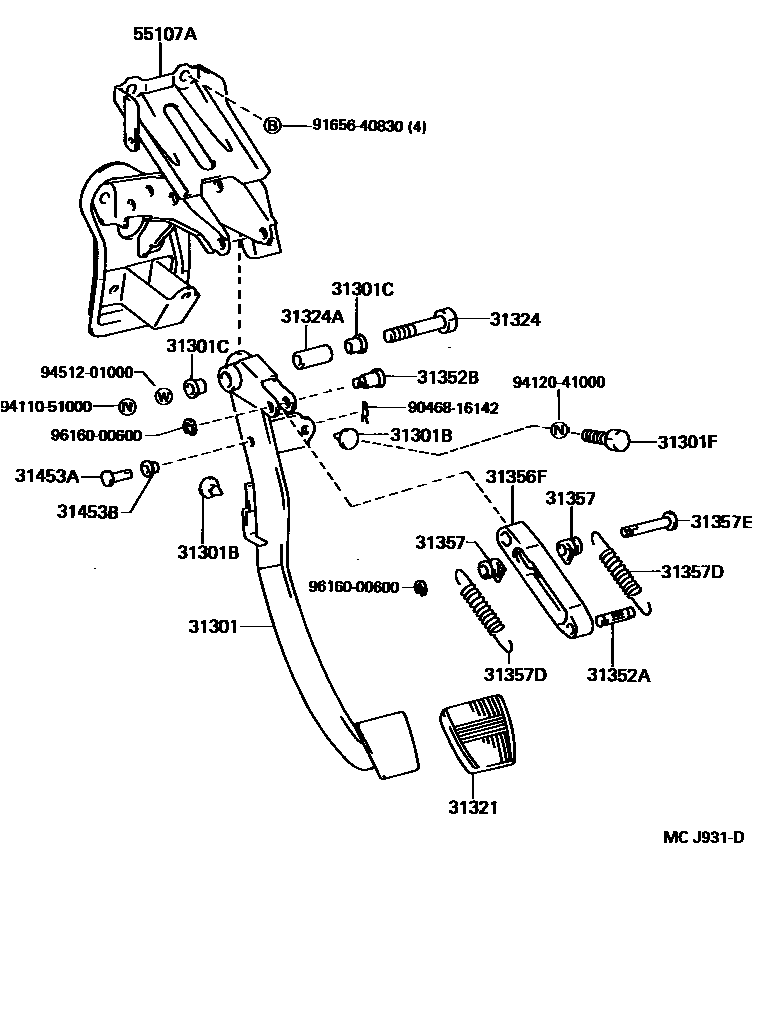

Toyota PREVIA — CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-28100iTCR10,20..MTM199001-199308

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06032iTCR10,20..MTM199001-199308

sub90541-06036

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iTCR10,20..MTM199001-199308

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iTCR10,20..MTM199001-199308

31321PAD, CLUTCH PEDAL

main31321-14020iTCR10,20..MTM199001-199308

31324SHAFT, CLUTCH PEDAL

main90101-10039iTCR10,20..MTM199001-199308

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iTCR10,20..MTM199001-199308

31352APIN, CLUTCH PEDAL OVER CENTER PLATE, NO.1

main31352-17010iTCR10,20..MTM199001-199308

31352BPIN, CLUTCH PEDAL OVER CENTER PLATE, NO.2

main31352-20020iTCR10,20..MTM199001-199308

31356FPLATE, CLUTCH PEDAL OVER CENTER, NO.1

main31356-17010iTCR10,20..MTM199001-199308

31357PLATE, CLUTCH PEDAL OVER CENTER, NO.2

main31357-20020iTCR10,20..MTM199001-199308

31357DSPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)

main90507-26007iTCR10,20..MTM199001-199308

31357EPIN, CLUTCH PEDAL OVER CENTER PLATE, NO.3

main90249-08214iTCR10,20..MTM199001-199308

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iTCR10,20..MTM199001-199308

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iTCR10,20..MTM199001-199308

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-28030iTCR10,20..MTM199108-199308

main55107-95D00iTCR10,20..MTM199001-199108

9046816142

main90468-16142

9165640830

main91656-40830

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

9616000600

main96160-00600

22 parts on this diagram · 2 diagrams in section
