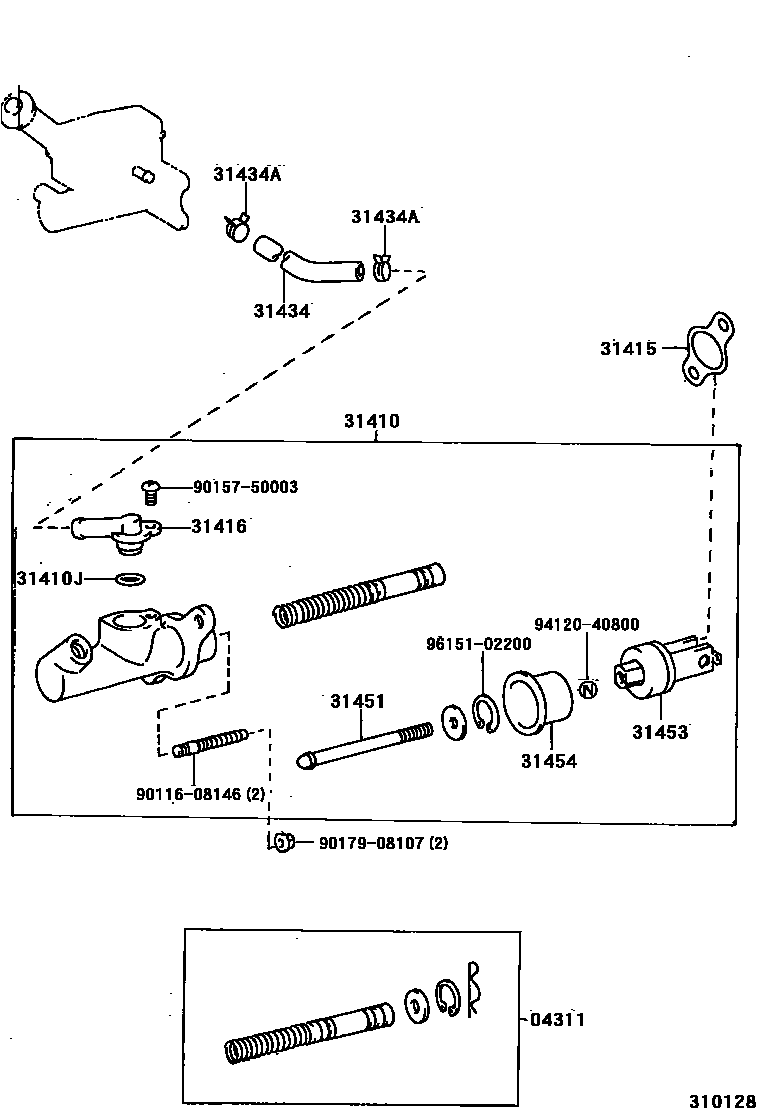

Toyota PREVIA — CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iTCR10,20..MTM199001-199205

sub04311-12080

main04311-12080iTCR10,20..MTM199205-199308

31410CYLINDER ASSY, CLUTCH MASTER

main31420-28100iTCR10,20..MTM199001-199308

sub31420-28101

31410JRING, O(FOR CLUTCH MASTER CYLINDER UNION)

main90301-14001iTCR10,20..MTM199001-199308

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iTCR10,20..MTM199001-199303

31416UNION, CLUTCH MASTER CYLINDER INLET

main31416-28010iTCR10,20..MTM199001-199308

31434TUBE, CLUTCH RESERVOIR

main31434-28050iTCR10,20..MTM199001-199308

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800iTCR10,20..MTM199001-199308

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-35080iTCR10,20..MTM199001-199308

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iTCR10..MTM199211-199308

main31404-35021iTCR10,20..MTM199001-199211

sub31404-35030

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iTCR10..MTM199304-199308

main31454-24010iTCR10,20..MTM199001-199304

9011608146

main90116-08146

9015750003

main90157-50003

9017908107

main90179-08107

9412040800

main94120-40800

9615102200

main96151-02200

15 parts on this diagram · 1 diagram in section
