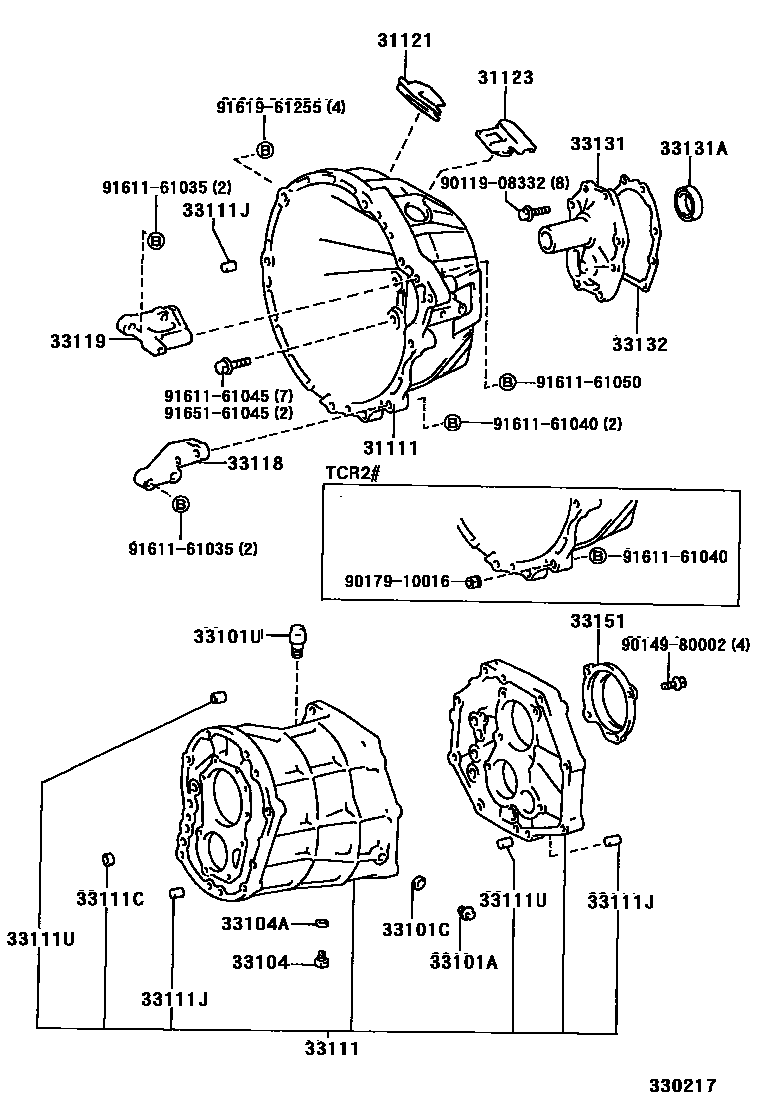

Toyota PREVIA — CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31123COVER, CLUTCH HOUSING, NO.2
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
33111CPLUG(FOR TRANSMISSION CASE)
OD=14
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=12,OD=10
L=16,OD=12
33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)
L=11,OD=11
L=14,OD=15
33118PLATE, STIFFENER, RH(MTM)
33119PLATE, STIFFENER, LH(MTM)
sub33119-28031
33131RETAINER, BEARING, FRONT(MTM)
33132GASKET, FRONT BEARING RETAINER(MTM)
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
9011908332
main90119-08332
9014980002
main90149-80002
9017910016
main90179-10016
9161161035
main91611-61035
9161161040
main91611-61040
9161161045
main91611-61045
9161161050
main91611-61050
9161961255
main91619-61255
9165161045
main91651-61045
27 parts on this diagram · 1 diagram in section
