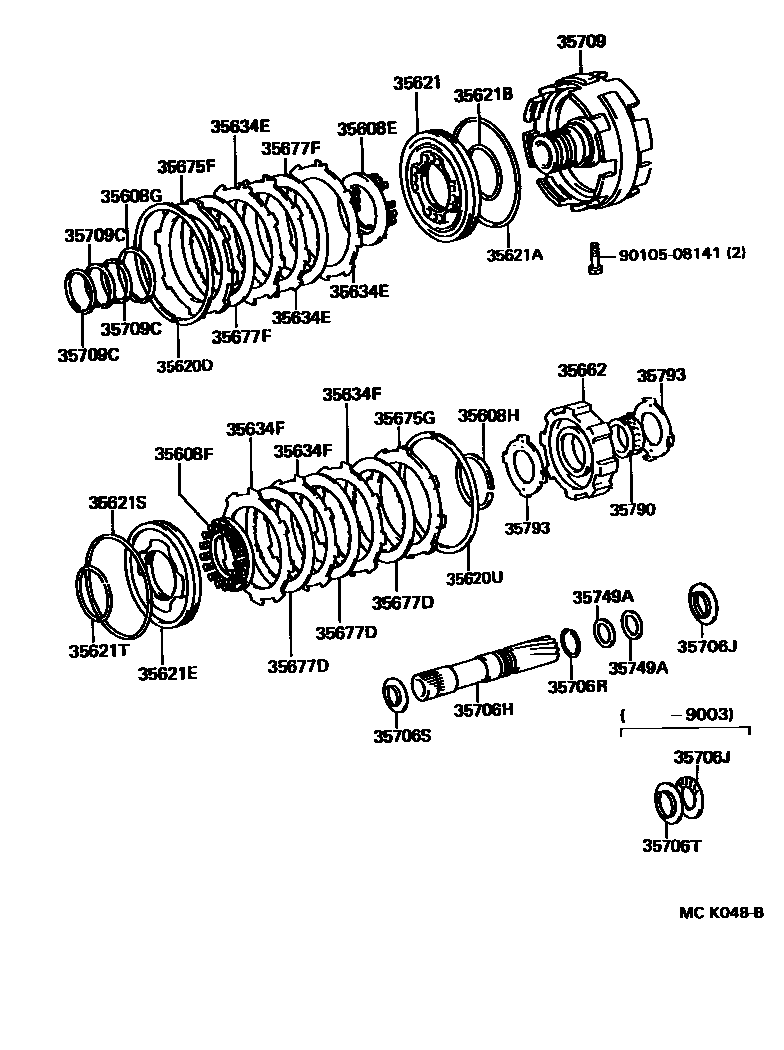

Toyota PREVIA — CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608ESPRING SUB-ASSY, BRAKE PISTON RETURN (ATM)
35608FSPRING SUB-ASSY, REAR BRAKE PISTON RETURN (ATM)
35608GRING, SHAFT SNAP (FOR ATM BRAKE PISTON RETURN SPRING)
35608HRING, SHAFT SNAP(FOR ATM REAR BRAKE PISTON RETURN SPRING)
35620DRING (FOR BRAKE)
35620URING (FOR REAR BRAKE)
35621PISTON, BRAKE, NO.1
35621ARING, O (FOR BRAKE PISTON OUTER)
35621BRING, O (FOR BRAKE PISTON INNER)
35621EPISTON, BRAKE (FOR REAR BRAKE)
35621SRING (FOR REAR BRAKE PISTON OUTER)
sub90301-99107
35621TRING (FOR REAR BRAKE PISTON INNER)
35634EPLATE, CLUTCH (FOR BRAKE)
35634FPLATE, CLUTCH (FOR REAR BRAKE)
T=1.8
T=3.0
35662HUB, BRAKE
35675FFLANGE, CLUTCH (FOR BRAKE)
sub35675-22140
35675GFLANGE, BRAKE (FOR REAR BRAKE)
sub35676-22030
35677DISC, CLUTCH (FOR 2ND BRAKE)
35677DDISC, CLUTCH (FOR REAR BRAKE)
35677FDISC, CLUTCH (FOR BRAKE)
35706HGEAR SUB-ASSY, PLANETARY SUN
35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)
35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)
35706TRACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR)
35709SUPPORT SUB-ASSY, CENTER
35709CRING, OIL SEAL (FOR CENTER SUPPORT)
35749ARING, SUN GEAR SHAFT OIL SEAL
35793RETAINER, 1 WAY CLUTCH
9010508141
main90105-08141
32 parts on this diagram · 2 diagrams in section
