Toyota PREVIA — CENTER STOP LAMP

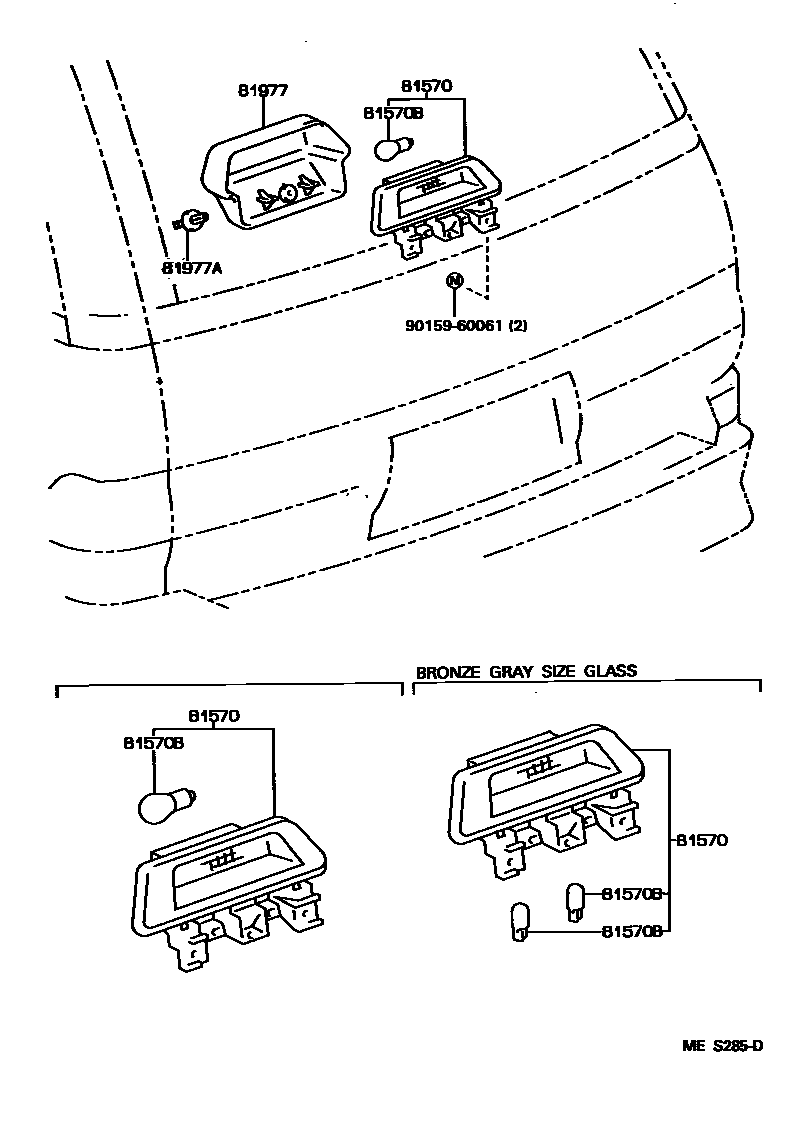

Parts diagram
81570LAMP ASSY, CENTER STOP
main81570-28110-B0i199108-199209
GRAY,TRIM1#
sub81570-28140
main81570-28110-E0i199108-199209
TAN,TRIM4#
sub81570-28140
main81570-28110-J0i199108-199209
BLUE,TRIM8#
sub81570-28140
main81570-28130-B0i199208-199707
BRONZE GRAY SIDE GLASS,LIGHT GRAY,TRIM1#
sub81570-28130
main81570-28130-B0i199408-199707
LIGHT GRAY,TRIM1#
sub81570-28130
main81570-28130-E0i199408-199707
LIGHT GRAIGE,TRIM4#
sub81570-28130
main81570-28130-E0i199208-199707
BRONZE GRAY SIDE GLASS,LIGHT GRAIGE,TRIM4#
sub81570-28130
main81570-28130-J0i199208-199408
BRONZE GRAY SIDE GLASS,LIGHT BLUE,TRIM8#
sub81570-28130
main81570-28140-B0i199209-199707
LIGHT GRAY,TRIM1#
sub81570-28140
main81570-28140-E0i199209-199707
LIGHT GREIGE,TRIM4#
sub81570-28140
main81570-28140-J0i199209-199408
LIGHT BLUE,TRIM8#
sub81570-28140
81570BBULB (FOR CENTER STOP LAMP)
main90981-11039i199408-199707
12V 16W
sub90981-11059
main90981-11039i199208-199707
12V 16W,BRONZE GRAY SIDE GLASS
sub90981-11059
main99132-11270i199108-199707
12V 27W
81977COVER, CENTER STOP LAMP
main81977-28040-B0i199408-199707
LIGHT GRAY,TRIM1#
main81977-28040-B0i199208-199707
BRONZE GRAY SIDE GLASS,LIGHT GRAY,TRIM1#
main81977-28040-E0i199408-199707
LIGHT GRAIGE,TRIM4#
main81977-28040-E0i199208-199707
BRONZE GRAY SIDE GLASS,LIGHT GRAIGE,TRIM4#
main81977-28040-J0i199208-199408
BRONZE GRAY SIDE GLASS,LIGHT BLUE,TRIM8#
main81977-95D00-03i199108-199308
LIGHT GRAY,TRIM1#
sub81977-95D00
main81977-95D00-05i199108-199308
LIGHT GRAIGE,TRIM4#
sub81977-95D00
main81977-95D00-B0i199308-199707
BLUISH GRAY,TRIM1#
sub81977-95D00
main81977-95D00-E2i199401-199707
MD.GREIGE,TRIM4#
sub81977-95D00
main81977-95D00-J0i199108-199408
LIGHT BLUE,TRIM8#
sub81977-95D00
81977ACLIP (FOR CENTER STOP LAMP)
main90467-07055-35i199108-199408
LIGHT GREIGE,TRIM4#
sub90467-07055
main90467-07055-53i199108-199408
LIGHT GRAY,TRIM1#
sub90467-07055
main90467-07055-B3i199408-199707
BLUISH GRAY,TRIM1#
sub90467-07055
main90467-07055-E4i199408-199707
MD.GREIGE,TRIM4#
sub90467-07055
main90467-07055-J1i199108-199408
LIGHT BLUE,TRIM8#
sub90467-07055
9015960061
main90159-60061

5 parts on this diagram · 1 diagram in section
