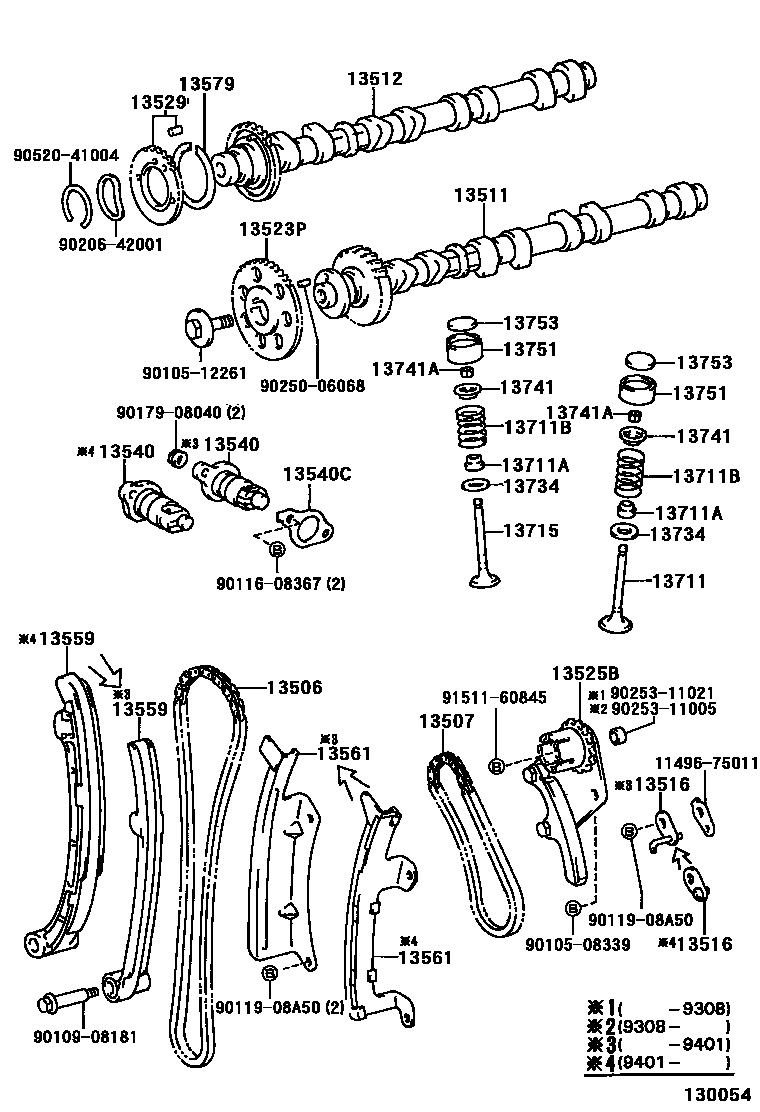

Toyota PREVIA — CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
13523PPULLEY, CAMSHAFT TIMING
13529GEAR, CAMSHAFT SUB
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13561DAMPER, CHAIN VIBRATION, NO.1
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
INTAKE SIDE
EXHAUST SIDE
INTAKE SIDE
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
1149675011GASKET, OIL HOLE COVER PLATE
main11496-75011
9010508339
main90105-08339
9010512261
main90105-12261
9010908181
main90109-08181
9011608367
main90116-08367
9011908A50
main90119-08A50
9017908040
main90179-08040
9020642001
main90206-42001
9025006068
main90250-06068
9025311005
main90253-11005
9025311021
main90253-11021
9052041004
main90520-41004
9151160845
main91511-60845
35 parts on this diagram · 1 diagram in section
