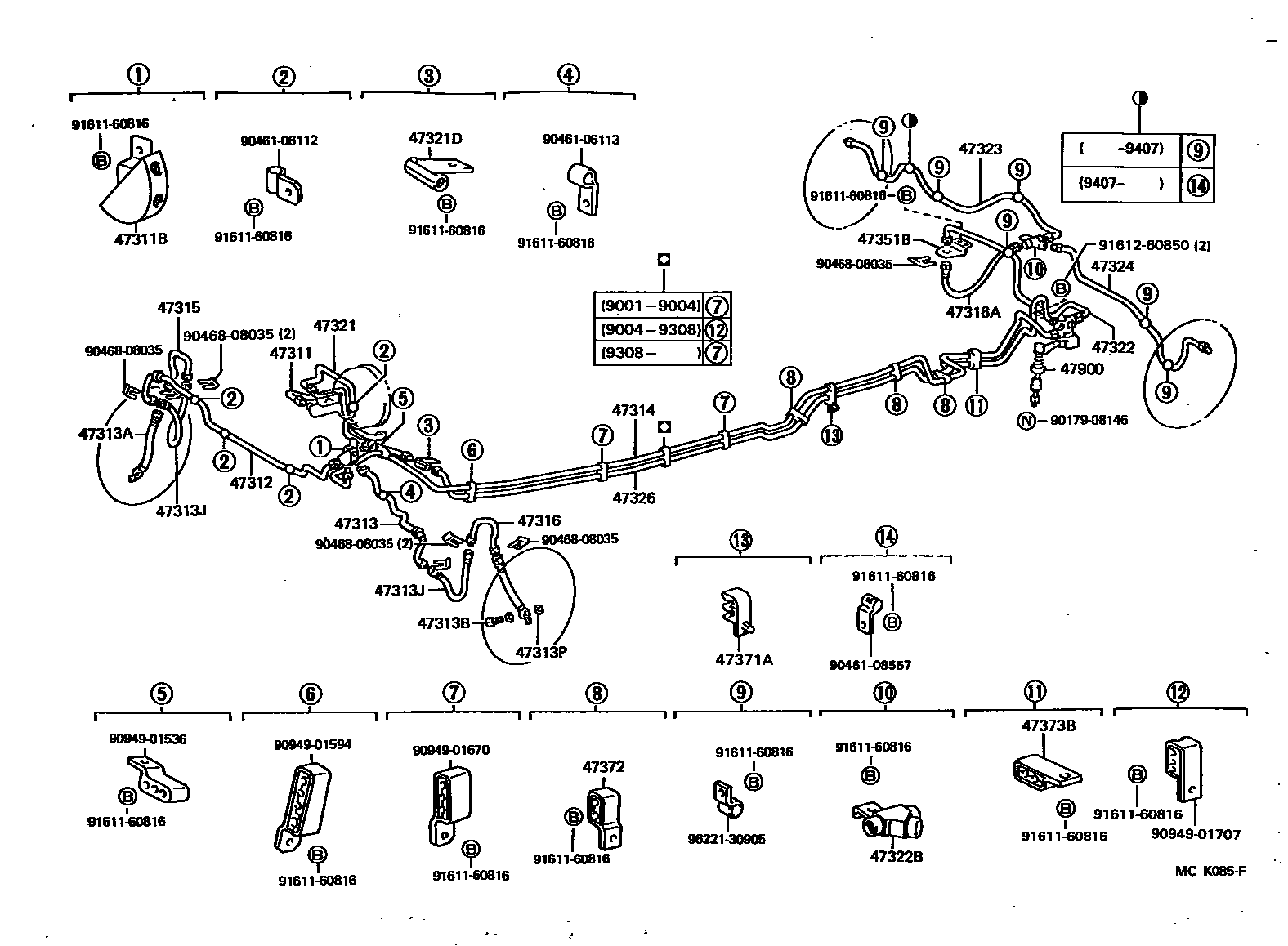

Toyota PREVIA — BRAKE TUBE & CLAMP

0001 1 0002 1W(ABS) 0003 1 0004 1W(ABS) 0005 1W(ABS) 0006 1W(ABS) 0007 1W(ABS) 0008 1W(ABS) 0009 1W(ABS) 0010 1W(ABS)

47311TUBE, FRONT BRAKE, NO.1

main47311-28230iTCR10,20..EFI199001-199608

main47311-28240iTCR10,20..07S199001-199608

W(ABS)

main47311-28380iTCR10,20..SPC199401-199707

main47311-28390iTCR10,20..SPC199401-199608

W(ABS)

main47311-28391iTCR10,20199608-199707

W(ABS)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10247iTCR10,20..EFI199001-199608

W(ABS)

main90414-10039iTCR10,20..EFI199001-199608

main90904-12013iTCR10,20..SPC199401-199707

main90904-12043iTCR10,20199608-199707

W(ABS)

47312TUBE, FRONT BRAKE, NO.2

main47312-28130iTCR10,20..EFI199001-199608

main47312-28140iTCR10,20199001-199308

W(ABS)

main47312-28220iTCR10,20..SPC199401-199707

main47312-28230iTCR10,20..SPC199401-199608

W(ABS)

main47312-28231iTCR10,20199608-199707

W(ABS)

main47312-28240iTCR10,20..EFI199308-199608

W(ABS)

47313TUBE, FRONT BRAKE, NO.3

main47313-28120iTCR10,20..EFI199001-199608

main47313-28130iTCR10,20199001-199308

W(ABS)

main47313-28131iTCR10,20..EFI199308-199608

W(ABS)

main47313-28210iTCR10,20..SPC199401-199707

main47313-28220iTCR10,20..SPC199401-199608

W(ABS)

main47313-28221iTCR10,20199608-199707

W(ABS)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02604iTCR10,20199001-199608

main90947-02882iTCR10,20199608-199707

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iTCR10,20199001-199707

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02618iTCR10,20199001-199201

sub90947-02720

main90947-02720iTCR10,20199201-199707

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iTCR10,20199001-199707

47314TUBE, FRONT BRAKE, NO.4

main47314-28140iTCR10,20199001-199004

main47314-28141iTCR10,20..EFI199004-199608

main47314-28220iTCR10,20..SPC199401-199707

47315TUBE, FRONT BRAKE, NO.5

main47315-28110iTCR10,20199001-199707

47316TUBE, FRONT BRAKE, NO.6

main47316-28030iTCR10,20199001-199707

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02617iTCR10,20199001-199608

main90947-02883iTCR10,20199608-199707

47321TUBE, REAR BRAKE, NO.1

main47321-28230iTCR10,20..EFI199001-199608

main47321-28240iTCR10,20199001-199308

W(ABS)

main47321-28241iTCR10,20..EFI199308-199608

W(ABS)

main47321-28380iTCR10,20..SPC199401-199707

main47321-28390iTCR10,20..SPC199401-199608

W(ABS)

main47321-28391iTCR10,20199608-199707

W(ABS)

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10006iTCR10,20..EFI199001-199608

main90412-10178iTCR10,20..EFI199001-199608

W(ABS)

main90904-12033iTCR10,20199608-199707

W(ABS)

main90904-13002iTCR10,20..SPC199401-199608

W(ABS)

main90904-14001iTCR10,20..SPC199401-199707

47322TUBE, REAR BRAKE, NO.2

main47322-28150iTCR10,20199001-199410

main47322-28151iTCR10,20199410-199707

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10245iTCR10,20199001-199707

47323TUBE, REAR BRAKE, NO.3

main47323-28190iTCR10,20..CND;TCR10,20..05S..USA199001-199707

main47323-28200iTCR10,20..CND;TCR10,20..05S..USA199001-199707

W(REAR DISC BRAKE)

main47323-28200iTCR10,20..07S..USA199408-199707

47324TUBE, REAR BRAKE, NO.4

main47324-28120iTCR10,20199001-199707

main47324-28130iTCR10,20..CND;TCR10,20..05S..USA199001-199707

W(REAR DISC BRAKE)

main47324-28130iTCR10,20..07S..USA199408-199707

47326TUBE, REAR BRAKE, NO.6

main47326-28090iTCR10,20199001-199004

main47326-28091iTCR10,20..EFI199004-199608

main47326-28160iTCR10,20..SPC199401-199707

main47326-28171iTCR10,20199608-199707

W(ABS)

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-28060iTCR10,20199001-199707

47371ACLAMP, BRAKE TUBE, NO.1

main47371-28010iTCR10,20199001-199707

47372CLAMP, BRAKE TUBE, NO.2

main47372-25010iTCR10,20199001-199707

47373BCLAMP, BRAKE TUBE, NO.3

main47373-25010iTCR10,20199001-199707

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-28200iTCR10,20199001-199707

sub47900-28201

main47900-28310iTCR10,20..07S199001-199005

W(REAR DISC BRAKE)

sub47900-28312

main47900-28311iTCR10,20199005-199707

W(REAR DISC BRAKE)

sub47900-28313

9017908146

main90179-08146

9046106112

main90461-06112

9046106113

main90461-06113

9046108567

main90461-08567

9046808035

main90468-08035

9094901536

main90949-01536

9094901594

main90949-01594

9094901670

main90949-01670

9094901707

main90949-01707

9161160816

main91611-60816

9161260850

main91612-60850

9622130905

main96221-30905

36 parts on this diagram · 10 diagrams in section
