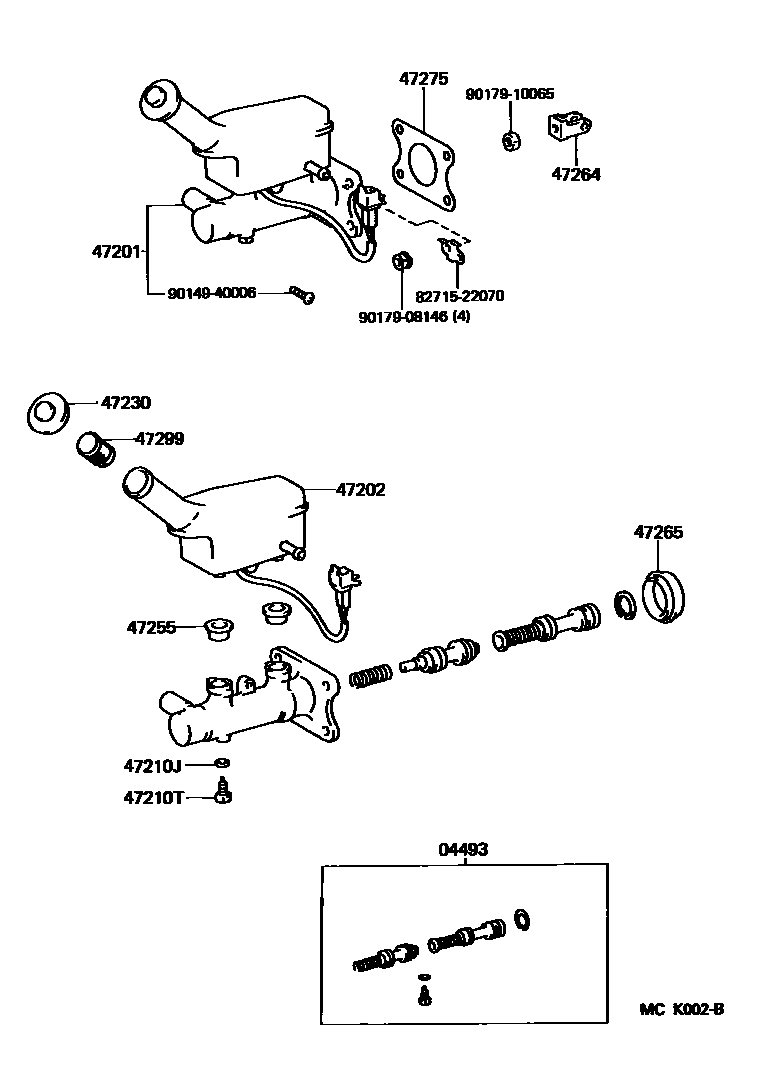

Toyota PREVIA — BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-25070iTCR10,20199508-199707

main04493-28080iTCR10,20199001-199108

main04493-28090iTCR10,20..07S199001-199608

W(ABS)

main04493-28100iTCR10,20199108-199508

sub04493-25070

main04493-30232iTCR10,20199608-199707

W(ABS)

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-28170iTCR10,20..ATM199001-199108

sub47201-28230

main47201-28180iTCR10,20..MTM199001-199108

sub47201-28240

main47201-28210iTCR10,20..07S199001-199608

W(ABS)

sub47201-28360

main47201-28220iTCR10,20..MTM199108-199308

W(ABS)

sub47201-28370

main47201-28230iTCR10,20..ATM199108-199608

sub47201-28340

main47201-28240iTCR10,20..MTM199108-199308

sub47201-28350

main47201-28430iTCR10,20199608-199707

sub47201-28390

main47201-28450iTCR10,20199608-199707

W(ABS)

sub47201-28410

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47203-28120iTCR10,20..ATM199001-199707

main47203-28130iTCR10,20..MTM199001-199308

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iTCR10,20199705-199707

main90430-06104iTCR10,20199001-199705

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iTCR10,20199001-199707

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28020iTCR10,20199001-199707

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iTCR10,20199001-199707

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-50010iTCR10,20199005-199707

47265BOOT, MASTER CYLINDER

main47265-20050iTCR10,20199001-199506

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iTCR10,20199608-199707

main47275-24010iTCR10,20199001-199608

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iTCR10,20199001-199707

8271522070BRACKET,WIRING HARNESS CLAMP

main82715-22070

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

15 parts on this diagram · 2 diagrams in section
