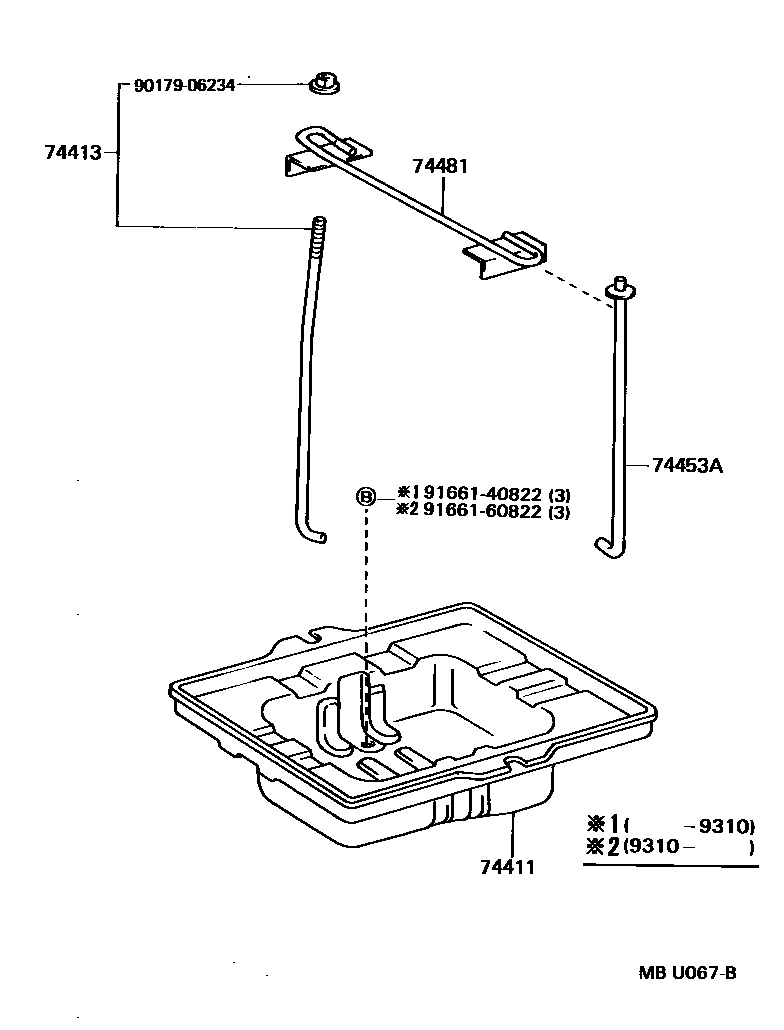

Toyota PREVIA — BATTERY CARRIER

0001 1 0002 1

74411CARRIER, BATTERY

main74411-28060iTCR10,20..SPC199401-199707

main74411-95D00iTCR10,20..EFI199001-199608

74413BOLT, BATTERY CLAMP

main74451-28020iTCR10,20..SPC199401-199707

main74451-95D00iTCR10,20..EFI199001-199608

74453ABAR, BATTERY SET PLATE

main74451-95D00iTCR10,20199005-199104

main74453-95D00iTCR10,20199001-199608

74481CLAMP, BATTERY HOLD DOWN

main74404-28030iTCR10,20..SPC199401-199707

main74404-95D00iTCR10,20..EFI199001-199608

9017906234

main90179-06234

9166140822

main91661-40822

9166160822

main91661-60822

7 parts on this diagram · 2 diagrams in section
