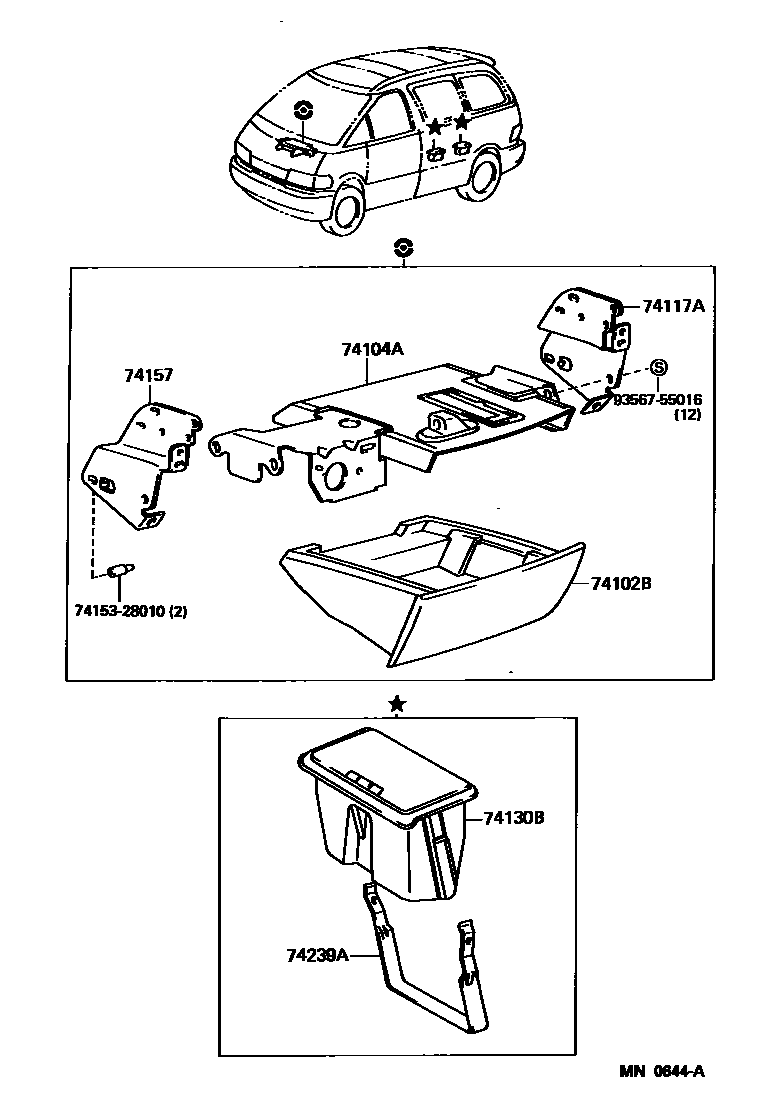

Toyota PREVIA — ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-95D00-03iTCR10,20199001-199308

GRAY,TRIM1#

sub74102-95D00

main74102-95D00-04iTCR10,20199001-199308

BLUE,TRIM8#

sub74102-95D00

main74102-95D00-05iTCR10,20199108-199308

GREIGE,TRIM4#

sub74102-95D00

main74102-95D00-06iTCR10,20199001-199108

TAN,TRIM4#

sub74102-95D00

main74102-95D00-17iTCR10,20199308-199707

GRAY,TRIM1#

sub74102-95D00

main74102-95D00-44iTCR10,20199308-199707

GREIGE,TRIM4#

sub74102-95D00

main74102-95D00-J0iTCR10,20199308-199408

BLUE,TRIM8#

sub74102-95D00

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-95D02iTCR10,20199001-199707

74117ABRACKET, FRONT ASH RECEPTACLE MOUNTING, RH

main74117-95D00iTCR10,20199001-199707

74130BRECEPTACLE ASSY, REAR ASH

main74130-95D00-03iTCR10,20199001-199308

GRAY,TRIM1#

sub74130-95D00

main74130-95D00-04iTCR10,20199001-199308

BLUE,TRIM8#

sub74130-95D00

main74130-95D00-05iTCR10,20199108-199308

GREIGE,TRIM4#

sub74130-95D00

main74130-95D00-06iTCR10,20199001-199108

TAN,TRIM4#

sub74130-95D00

main74130-95D00-B0iTCR10,20199308-199707

GRAY,TRIM1#

sub74130-95D00

main74130-95D00-E2iTCR10,20199308-199707

GREIGE,TRIM4#

sub74130-95D00

main74130-95D00-R9iTCR10,20199308-199408

BLUE,TRIM8#

sub74130-95D00

74157BRACKET, FRONT ASH RECEPTACLE MOUNTING, LH

main74157-95D00iTCR10,20199001-199707

74239AHOLDER, REAR ASH RECEPTACLE

main74239-95D00iTCR10,20199001-199707

7415328010

main74153-28010

9356755016

main93567-55016

8 parts on this diagram · 1 diagram in section
