Toyota PREVIA — ARMREST & VISOR

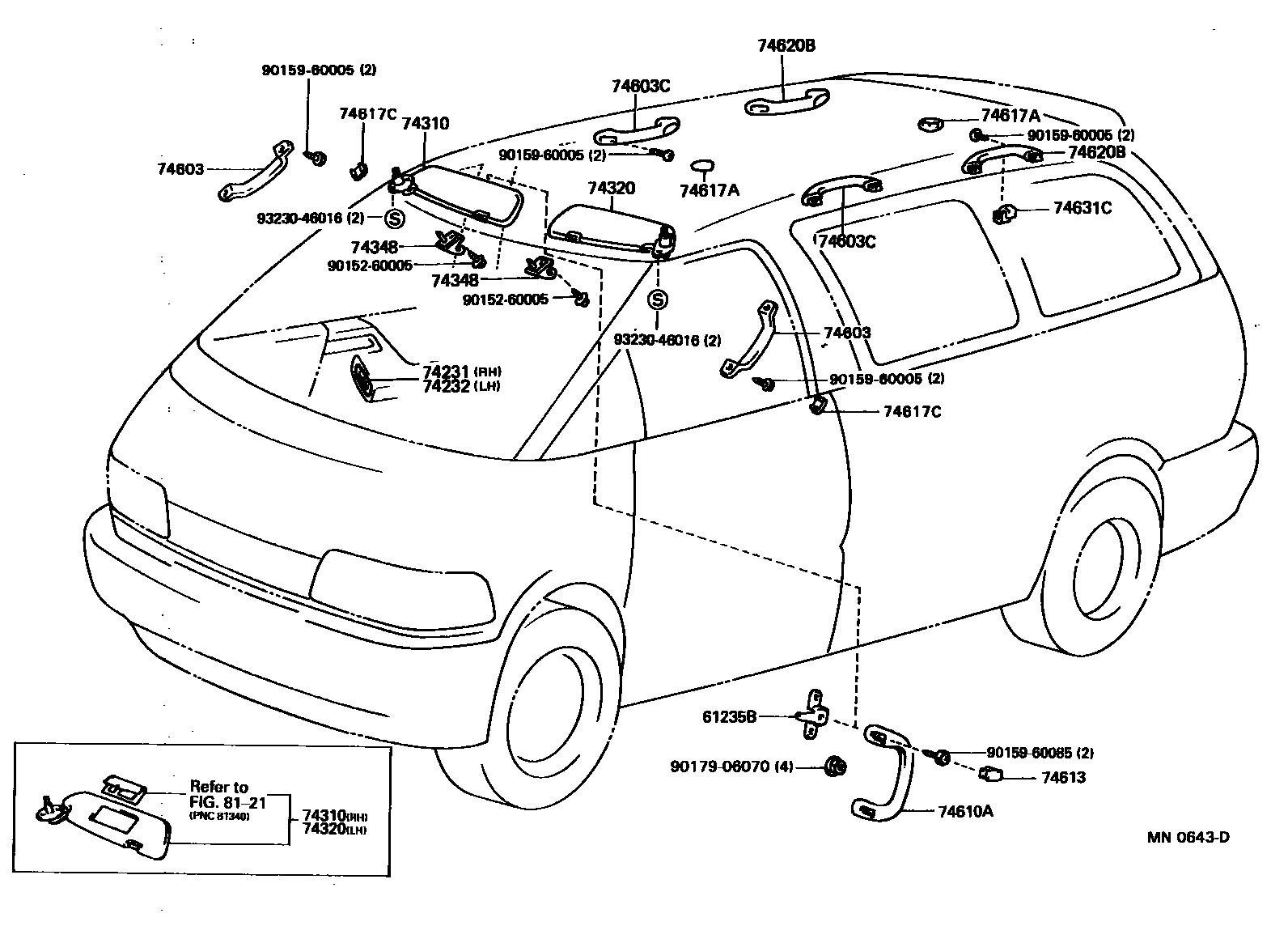

Parts diagram
61235BBRACKET, ASSIST GRIP
main61235-28010i199308-199707
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-28030-B0i199112-199707
GRAY,TRIM1#
sub74231-28030
main74231-28030-E0i199112-199707
GREIGE,TRIM4#
sub74231-28030
main74231-28030-J0i199112-199408
BLUE,TRIM8#
sub74231-28030
main74231-95D00-03i199001-199112
LIGHT GRAY,TRIM1#
sub74231-28030
main74231-95D00-04i199001-199112
LIGHT BLUE,TRIM8#
sub74231-28030
main74231-95D00-05i199108-199112
LIGHT GREIGE,TRIM4#
sub74231-28030
main74231-95D00-06i199001-199108
LIGHT TAN,TRIM4#
sub74231-28030
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-28010-03i199001-199112
LIGHT GRAY,TRIM1#
sub74232-28011
main74232-28010-04i199001-199112
LIGHT BLUE,TRIM8#
sub74232-28011
main74232-28010-06i199001-199108
LIGHT TAN,TRIM4#
sub74232-28011
main74232-28011-B0i199112-199707
GRAY,TRIM1#
sub74232-28011
main74232-28011-E1i199112-199707
GREIGE,TRIM4#
sub74232-28011
main74232-28011-J0i199112-199408
BLUE,TRIM8#
sub74232-28011
74310VISOR ASSY, RH
main74310-28360-B0i199108-199308
LIGHT GRAY,TRIM1#
main74310-28360-E0i199108-199308
LIGHT GREIGE,TRIM4#
main74310-28360-J0i199108-199308
LIGHT BLUE,TRIM8#
main74310-28362-B1i199308-199408
GRAY,TRIM1#
sub74310-28364
main74310-28362-E1i199308-199408
GREIGE,TRIM4#
sub74310-28364
main74310-28362-J2i199308-199408
BLUE,TRIM8#
sub74310-28364
main74310-28363-B1i199408-199608
GRAY,TRIM1#
sub74310-28363
main74310-28363-E1i199408-199608
GREIGE,TRIM4#
sub74310-28363
main74310-28364-B1i199608-199707
LIGHT GRAY,TRIM1#
sub74310-28364
main74310-28364-E1i199608-199707
LIGHT GREIGE,TRIM4#
sub74310-28364
main74310-28610-B1i199308-199408
GRAY,TRIM1#
main74310-28610-E1i199308-199408
GREIGE,TRIM4#
main74310-28610-J0i199308-199408
BLUE,TRIM8#
main74310-28611-B1i199408-199608
GRAY,TRIM1#
sub74310-28611
main74310-28611-E1i199408-199608
GREIGE,TRIM4#
sub74310-28611
main74310-28612-B1i199608-199707
LIGHT GRAY,TRIM1#
sub74310-28613
main74310-28612-E1i199608-199707
LIGHT GREIGE,TRIM4#
sub74310-28613
main74310-28850-B0i199702-199707
LIGHT GRAY,TRIM1#
main74310-28850-E0i199702-199707
LIGHT GREIGE,TRIM4#
main74310-28860-B0i199702-199707
LIGHT GRAY,TRIM1#
main74310-28860-E0i199702-199707
LIGHT GREIGE,TRIM4#
main74310-95D12-03i199001-199108
LIGHT GRAY,TRIM1#
main74310-95D12-04i199001-199108
LIGHT BLUE,TRIM8#
main74310-95D12-06i199001-199108
LIGHT TAN,TRIM4#
main74310-95D13-03i199001-199308
LIGHT GRAY,TRIM1#
sub74310-95D13
main74310-95D13-04i199001-199308
LIGHT BLUE,TRIM8#
sub74310-95D13
main74310-95D13-06i199001-199108
LIGHT TAN,TRIM4#
sub74310-95D13
main74310-95D13-44i199108-199308
LIGHT GREIGE,TRIM4#
sub74310-95D13
main74310-95D15-03i199302-199308
CHINA SPEC,LIGHT GRAY,TRIM1#
sub74310-95D15
main74310-95D15-05i199302-199308
CHINA SPEC,LIGHT GREIGE,TRIM4#
sub74310-95D15
74320VISOR ASSY, LH
main74320-28100-B0i199108-199308
LIGHT GRAY,TRIM1#
sub74320-28104
main74320-28100-E0i199108-199308
LIGHT GREIGE,TRIM4#
sub74320-28104
main74320-28100-J0i199108-199308
LIGHT BLUE,TRIM8#
sub74320-28104
main74320-28101-B1i199308-199408
GRAY,TRIM1#
sub74320-28104
main74320-28101-E1i199308-199408
GREIGE,TRIM4#
sub74320-28104
main74320-28101-J1i199308-199408
BLUE,TRIM8#
sub74320-28104
main74320-28102-B1i199408-199608
GRAY,TRIM1#
sub74320-28102
main74320-28102-E1i199408-199608
GREIGE,TRIM4#
sub74320-28102
main74320-28103-B1i199608-199707
LIGHT GRAY,TRIM1#
sub74320-28104
main74320-28103-E1i199608-199707
LIGHT GREIGE,TRIM4#
sub74320-28104
main74320-28120-B0i199108-199308
LIGHT GRAY,TRIM1#
sub74320-28121
main74320-28120-E0i199108-199308
LIGHT GREIGE,TRIM4#
sub74320-28121
main74320-28120-J0i199108-199308
LIGHT BLUE,TRIM8#
sub74320-28121
main74320-28121-B1i199308-199408
GRAY,TRIM1#
sub74320-28121
main74320-28121-E1i199308-199408
GREIGE,TRIM4#
sub74320-28121
main74320-28121-J1i199308-199408
BLUE,TRIM8#
sub74320-28121
main74320-28130-B0i199108-199208
LIGHT GRAY,TRIM1#
main74320-28130-E0i199108-199208
LIGHT GREIGE,TRIM4#
main74320-28130-J0i199108-199208
LIGHT BLUE,TRIM8#
main74320-28160-B0i199108-199308
LIGHT GRAY,TRIM1#
sub74320-28161
main74320-28160-E0i199108-199308
LIGHT GREIGE,TRIM4#
sub74320-28161
main74320-28160-J0i199108-199308
LIGHT BLUE,TRIM8#
sub74320-28161
main74320-28161-B1i199308-199408
GRAY,TRIM1#
sub74320-28161
main74320-28161-E1i199308-199408
GREIGE,TRIM4#
sub74320-28161
main74320-28161-J2i199308-199408
BLUE,TRIM8#
sub74320-28161
main74320-28170-B0i199108-199308
LIGHT GRAY,TRIM1#
sub74320-28171
main74320-28170-E0i199108-199308
LIGHT GREIGE,TRIM4#
sub74320-28171
main74320-28170-J0i199108-199308
LIGHT BLUE,TRIM8#
sub74320-28171
main74320-28171-B1i199308-199408
GRAY,TRIM1#
main74320-28171-E1i199308-199408
GREIGE,TRIM4#
main74320-28171-J2i199308-199408
BLUE,TRIM8#
main74320-28200-B0i199108-199308
LIGHT GRAY,TRIM1#
main74320-28200-E0i199108-199308
LIGHT GREIGE,TRIM4#
main74320-28200-J0i199108-199308
LIGHT BLUE,TRIM8#
main74320-28210-B0i199108-199308
LIGHT GRAY,TRIM1#
main74320-28210-E0i199108-199308
LIGHT GREIGE,TRIM4#
main74320-28210-J0i199108-199308
LIGHT BLUE,TRIM8#
main74320-28290-B0i199108-199308
LIGHT GRAY,TRIM1#
main74320-28290-E0i199108-199308
LIGHT GREIGE,TRIM4#
main74320-28290-J0i199108-199308
LIGHT BLUE,TRIM8#
main74320-28300-B0i199108-199308
LIGHT GRAY,TRIM1#
main74320-28300-E0i199108-199308
LIGHT GREIGE,TRIM4#
main74320-28300-J0i199108-199308
LIGHT BLUE,TRIM8#
main74320-28350-B0i199408-199608
GRAY,TRIM1#
sub74320-28350
main74320-28350-E0i199408-199608
GREIGE,TRIM4#
sub74320-28350
main74320-28351-B0i199608-199707
LIGHT GRAY,TRIM1#
main74320-28351-E0i199608-199707
LIGHT GREIGE,TRIM4#
main74320-28420-B0i199702-199707
LIGHT GRAY,TRIM1#
main74320-28420-E0i199702-199707
LIGHT GREIGE,TRIM4#
main74320-28430-B0i199702-199707
LIGHT GRAY,TRIM1#
main74320-28430-E0i199702-199707
LIGHT GREIGE,TRIM4#
main74320-95D04-03i199001-199108
LIGHT GRAY,TRIM1#
sub74320-95D04
main74320-95D04-04i199001-199108
LIGHT BLUE,TRIM8#
sub74320-95D04
main74320-95D04-06i199001-199108
LIGHT TAN,TRIM4#
sub74320-95D04
main74320-95D07-03i199302-199308
CHINA SPEC,LIGHT GRAY,TRIM1#
sub74320-95D07
main74320-95D07-05i199302-199308
CHINA SPEC,LIGHT GREIGE,TRIM4#
sub74320-95D07
main74320-95D08-03i199001-199108
LIGHT GRAY,TRIM1#
main74320-95D08-04i199001-199108
LIGHT BLUE,TRIM8#
main74320-95D08-06i199001-199108
LIGHT TAN,TRIM4#
main74320-95D09-03i199001-199108
LIGHT GRAY,TRIM1#
main74320-95D09-04i199001-199108
LIGHT BLUE,TRIM8#
main74320-95D09-06i199001-199108
LIGHT TAN,TRIM4#
main74320-95D11-03i199001-199108
LIGHT GRAY,TRIM1#
main74320-95D11-04i199001-199108
LIGHT BLUE,TRIM8#
main74320-95D11-06i199001-199108
LIGHT TAN,TRIM4#
main74320-95D12-03i199001-199108
LIGHT GRAY,TRIM1#
main74320-95D12-04i199001-199108
LIGHT BLUE,TRIM8#
main74320-95D12-06i199001-199108
LIGHT TAN,TRIM4#
74348HOLDER, VISOR
main74348-12020-04i199001-199308
LIGHT BLUE,TRIM8#
sub74348-12020
sub74348-60010
sub74348-26020
main74348-12020-43i199001-199308
LIGHT GRAY,TRIM1#
sub74348-12020
sub74348-60010
sub74348-26020
main74348-12020-45i199108-199308
LIGHT GREIGE,TRIM4#
sub74348-12020
sub74348-60010
sub74348-26020
main74348-12020-46i199001-199108
LIGHT TAN,TRIM4#
sub74348-12020
sub74348-60010
sub74348-26020
main74348-12020-B8i199308-199509
GRAY,TRIM1#
sub74348-12020
sub74348-60010
sub74348-26020
main74348-12020-L1i199308-199509
GREIGE,TRIM4#
sub74348-12020
sub74348-60010
sub74348-26020
main74348-12020-R4i199308-199408
BLUE,TRIM8#
sub74348-12020
sub74348-60010
sub74348-26020
main74348-26020-B1i199509-199707
LT.GRAY,TRIM1#
sub74348-26020
main74348-26020-E1i199509-199707
LT.GREIGE,TRIM4#
sub74348-26020
74603GRIP SUB-ASSY, ASSIST, FRONT
main74603-28030-B0i199108-199707
LIGHT GRAY,TRIM1#
sub74603-44010
sub74603-28030
main74603-28030-E0i199108-199707
LIGHT GREIGE,TRIM4#
sub74603-44010
sub74603-28030
main74603-28030-J0i199108-199408
LIGHT BLUE,TRIM8#
sub74603-44010
sub74603-28030
74603CGRIP SUB-ASSY, ASSIST
main74603-95D00-03i199001-199308
LIGHT GRAY,TRIM1#
sub74603-95D00
main74603-95D00-04i199001-199308
LIGHT BLUE,TRIM8#
sub74603-95D00
main74603-95D00-05i199108-199308
LIGHT GREIGE,TRIM4#
sub74603-95D00
main74603-95D00-06i199001-199108
LIGHT TAN,TRIM4#
sub74603-95D00
main74603-95D00-B8i199308-199707
GRAY,TRIM1#
sub74603-95D00
main74603-95D00-L1i199308-199707
GREIGE,TRIM4#
sub74603-95D00
main74603-95D00-R4i199308-199408
BLUE,TRIM8#
sub74603-95D00
main74603-95D01-03i199001-199308
LIGHT GRAY,TRIM1#,SLIDE DOOR SIDE
sub74603-95D01
main74603-95D01-04i199001-199308
LIGHT BLUE,TRIM8#,SLIDE DOOR SIDE
sub74603-95D01
main74603-95D01-05i199108-199308
LIGHT GREIGE,TRIM4#,SLIDE DOOR SIDE
sub74603-95D01
main74603-95D01-06i199001-199108
LIGHT TAN,TRIM4#,SLIDE DOOR SIDE
sub74603-95D01
main74603-95D01-B8i199308-199707
GRAY,TRIM1#,SLIDE DOOR SIDE
sub74603-95D01
main74603-95D01-L1i199308-199707
GREIGE,TRIM4#,SLIDE DOOR SIDE
sub74603-95D01
main74603-95D01-R4i199308-199408
BLUE,TRIM8#,SLIDE DOOR SIDE
sub74603-95D01
74610AGRIP SUB-ASSY, ASSIST
main74610-28020-B0i199308-199707
GRAY,TRIM1#
sub74610-28020
main74610-28020-E0i199308-199707
GREIGE,TRIM4#
sub74610-28020
main74610-28020-J0i199308-199408
BLUE,TRIM8#
sub74610-28020
74613PLUG, ASSIST GRIP
main74617-28040-B0i199308-199707
GRAY,TRIM1#,LOWER
sub74617-28040
main74617-28040-E0i199308-199707
GREIGE,TRIM4#,LOWER
sub74617-28040
main74617-28040-J0i199308-199408
BLUE,TRIM8#,LOWER
sub74617-28040
main74617-28050-B0i199308-199707
GRAY,TRIM1#,UPPER
sub74617-28050
main74617-28050-E0i199308-199707
GREIGE,TRIM4#,UPPER
sub74617-28050
main74617-28050-J0i199308-199408
BLUE,TRIM8#,UPPER
sub74617-28050
74617APLUG, ASSIST GRIP
main74617-95D00-03i199001-199308
LIGHT GRAY,TRIM1#
sub74617-95D00
main74617-95D00-04i199001-199308
LIGHT BLUE,TRIM8#
sub74617-95D00
main74617-95D00-05i199108-199308
LIGHT GREIGE,TRIM4#
sub74617-95D00
main74617-95D00-06i199001-199108
LIGHT TAN,TRIM4#
sub74617-95D00
main74617-95D00-B8i199308-199707
GRAY,TRIM1#
sub74617-95D00
main74617-95D00-L1i199308-199707
GREIGE,TRIM4#
sub74617-95D00
main74617-95D00-R4i199308-199408
BLUE,TRIM8#
sub74617-95D00
74617CPLUG, ASSIST GRIP
main74617-28030-B0i199108-199707
LIGHT GRAY,TRIM1#
sub74617-28030
main74617-28030-E0i199108-199707
LIGHT GREIGE,TRIM4#
sub74617-28030
main74617-28030-J0i199108-199408
LIGHT BLUE,TRIM8#
sub74617-28030
74620BGRIP ASSY, ASSIST, REAR
main74603-95D00-03i199001-199308
LIGHT GRAY,TRIM1#
sub74603-95D00
main74603-95D00-04i199001-199308
LIGHT BLUE,TRIM8#
sub74603-95D00
main74603-95D00-05i199108-199308
LIGHT GREIGE,TRIM4#
sub74603-95D00
main74603-95D00-06i199001-199108
LIGHT TAN,TRIM4#
sub74603-95D00
main74603-95D00-B8i199308-199707
GRAY,TRIM1#
sub74603-95D00
main74603-95D00-L1i199308-199707
GREIGE,TRIM4#
sub74603-95D00
main74603-95D00-R4i199308-199408
BLUE,TRIM8#
sub74603-95D00
74631CHOOK, COAT
main74631-14010-34i199001-199308
DEEP BLUE,TRIM8#
sub74631-14010
sub74631-20040
main74631-14010-40i199001-199108
LIGHT TAN,TRIM4#
sub74631-14010
sub74631-20040
main74631-14010-50i199108-199308
LIGHT GREIGE,TRIM4#
sub74631-14010
sub74631-20040
main74631-14010-53i199001-199308
GRAY,TRIM1#
sub74631-14010
sub74631-20040
main74631-14010-B8i199308-199508
GRAY,TRIM1#
sub74631-14010
sub74631-20040
main74631-14010-J0i199308-199408
BLUE,TRIM8#
sub74631-14010
sub74631-20040
main74631-14010-L1i199308-199508
GREIGE,TRIM4#
sub74631-14010
sub74631-20040
8121
9015260005
main90152-60005
9015960005
main90159-60005
9015960085
main90159-60085
9017906070
main90179-06070
9323046016
main93230-46016

20 parts on this diagram · 1 diagram in section

Toyota PREVIA ARMREST & VISOR — Parts Diagram | EPC Data
