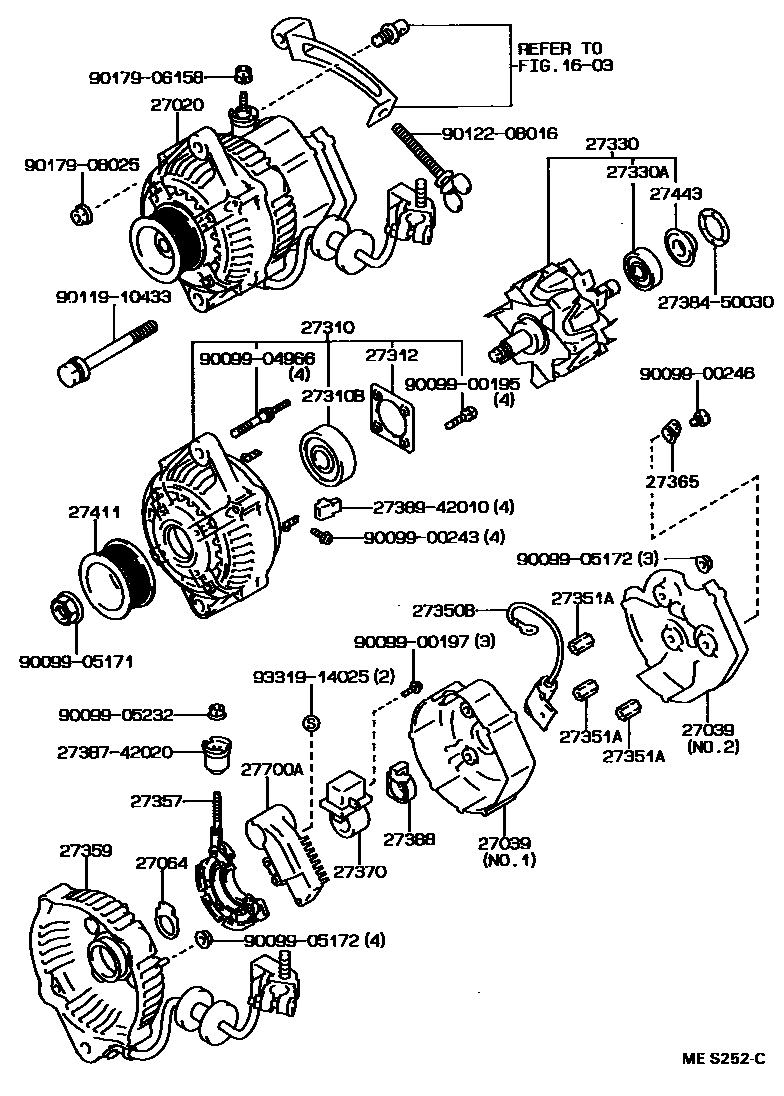

Toyota PREVIA — ALTERNATOR

0001 112V 70A 0002 112V 70A 0003 112V 70A

1603

27020ALTERNATOR ASSY

main27060-76030i2TZFE..TCR10,20199001-199108

12V 70A

main27060-76040i2TZFE..TCR10,20199108-199308

12V 70A

main27060-76060i2TZFZE..TCR10,20199401-199707

12V 70A

main27060-76080i2TZFE..TCR10,20199308-199608

12V 70A

27039COVER, ALTERNATOR REAR END

main27039-42010i2TZFE..TCR10,20199001-199308

NO.1

sub27039-16310

main27039-46190i2TZFZE..TCR10,20199401-199707

sub27039-22050

main27039-55080i2TZFE..TCR10,20199308-199608

NO.1

sub27039-70470

main27039-76010i2TZFE..TCR10,20199001-199608

NO.2

27064SEAL, ALTERNATOR PLATE

main27064-42010i2TZ#..TCR10,20199001-199707

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-72210i2TZFE..TCR10,20199001-199108

main27310-76040i2TZFE..TCR10,20199108-199608

main27310-76060i2TZFZE..TCR10,20199401-199707

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10160i2TZFE..TCR10,20199001-199101

sub90099-10219

main90099-10192i2TZ#..TCR10,20199101-199707

27312PLATE, RETAINER

main27312-42010i2TZ#..TCR10,20199001-199707

27330ROTOR ASSY, ALTERNATOR

main27330-76030i2TZ#..TCR10,20199001-199707

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i2TZ#..TCR10,20199001-199707

27350BCONDENSER, ALTERNATOR

main90099-52106i2TZFE..TCR10,20199001-199106

27351ACOLLAR, ADJUSTING ALTERNATOR

main27351-16130i2TZFE..TCR10..07S..USA199108-199608

L=17

main27351-16130i2TZFE..TCR10,20199001-199108

main27351-16130i2TZFE..TCR10,20199310-199508

L=23.0

main27351-76040i2TZFE..TCR10,20199308-199608

L=22.0

main27351-76050i2TZFE..TCR10,20199108-199308

L=22.0

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-55080i2TZ#..TCR10,20199308-199707

main27357-74050i2TZFE..TCR10,20199001-199308

sub27357-74160

27359FRAME, ALTERNATOR RECTIFIER END

main27350-76030i2TZFE..TCR10,20199001-199108

main27359-76040i2TZFE..TCR10,20199108-199608

main27359-76060i2TZFZE..TCR10,20199401-199707

27365PLATE, TERMINAL

main27365-55080i2TZ#..TCR10,20199308-199707

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i2TZ#..TCR10,20199001-199707

27388COVER, ALTERNATOR BRUSH

main27388-42010i2TZ#..TCR10,20199001-199707

27411PULLEY, ALTERNATOR

main27411-50050i2TZ#..TCR10,20199001-199707

27443COVER, ALTERNATOR BEARING

main27443-63020i2TZ#..TCR10,20199001-199707

27700AREGULATOR ASSY, GENERATOR

main27700-16010i2TZFE..TCR10,20199001-199108

sub27700-66020

main27700-35040i2TZFE..TCR10,20199308-199608

main27700-62010i2TZFZE..TCR10,20199401-199707

main27700-76020i2TZFE..TCR10,20199108-199308

sub27700-66020

2738450030WASHER

main27384-50030

2738742020INSULATOR, TERMINAL

main27387-42020

2738942010INSULATOR, TERMINAL

main27389-42010

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905171

main90099-05171

9009905172

main90099-05172

9009905232

main90099-05232

9011910433

main90119-10433

9012208016

main90122-08016

9017906158

main90179-06158

9017908025

main90179-08025

9331914025

main93319-14025

35 parts on this diagram · 3 diagrams in section
