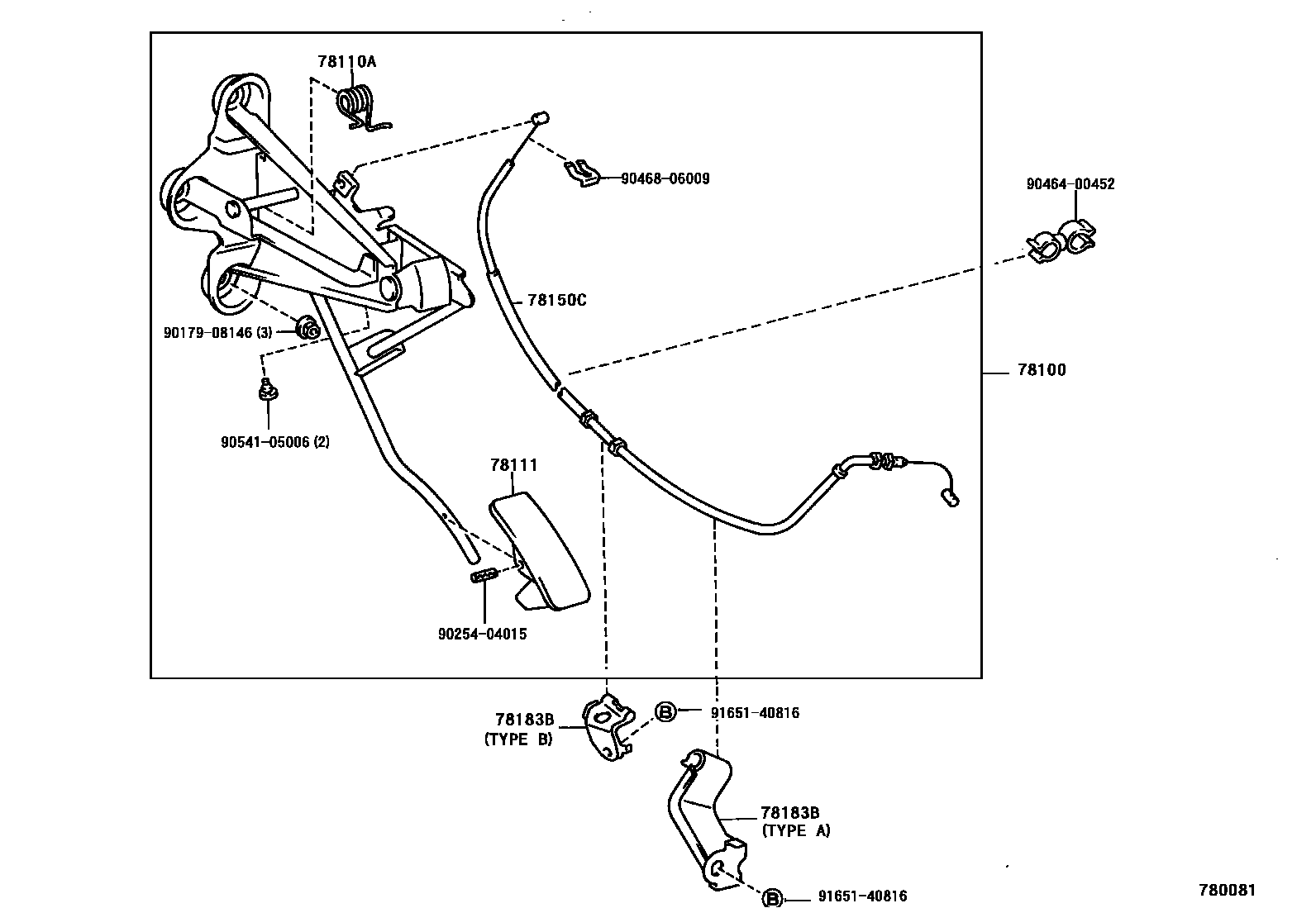

Toyota PREVIA — ACCELERATOR LINK

0001 1 0002 1

78100LINK ASSY, ACCELERATOR

main78100-28070iTCR10,20..ATM..05S..EFI199009-199508

main78100-28070iTCR10..07S..USA199302-199308

CHINA SPEC

main78100-28090iTCR10,20..07S199009-199201

W(CRUISE CONTROL)

main78100-28180iTCR10,20..MTM199201-199308

W(CRUISE CONTROL)

main78100-28190iTCR10,20..07S..EFI199201-199608

main78100-28190iTCR10,20..ATM..05S..EFI199201-199508

W(CRUISE CONTROL)

main78100-28230iTCR10,20..07S..SPC199401-199707

W(CRUISE CONTROL)

main78100-28240iTCR10,20..05S..SPC199401-199707

main78100-95D00iTCR10,20199001-199201

W(CRUISE CONTROL)

main78100-95D01iTCR10,20..MTM199001-199308

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-23118iTCR10,20..ATM199009-199707

main90508-40009iTCR10,20199001-199308

78111PEDAL, ACCELERATOR

main78111-28010iTCR10,20..SPC199401-199707

main78111-95D00iTCR10,20..MTM199001-199608

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-28040iTCR10,20..SPC199401-199707

NO.1

main78150-28050iTCR10,20..SPC199401-199707

NO.2

main78150-95D02iTCR10,20..EFI199001-199608

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-28010iTCR10,20199001-199608

TYPE A

main78183-28120iTCR10,20..SPC199401-199707

TYPE A

main78183-28130iTCR10,20..SPC199401-199707

TYPE B

main78183-28140iTCR10,20..SPC199401-199707

TYPE C

main78183-95D01iTCR10,20..MTM199001-199608

TYPE B

9017908146

main90179-08146

9025404015

main90254-04015

9046400452

main90464-00452

9046806009

main90468-06009

9054105006

main90541-05006

9165140816

main91651-40816

11 parts on this diagram · 2 diagrams in section
