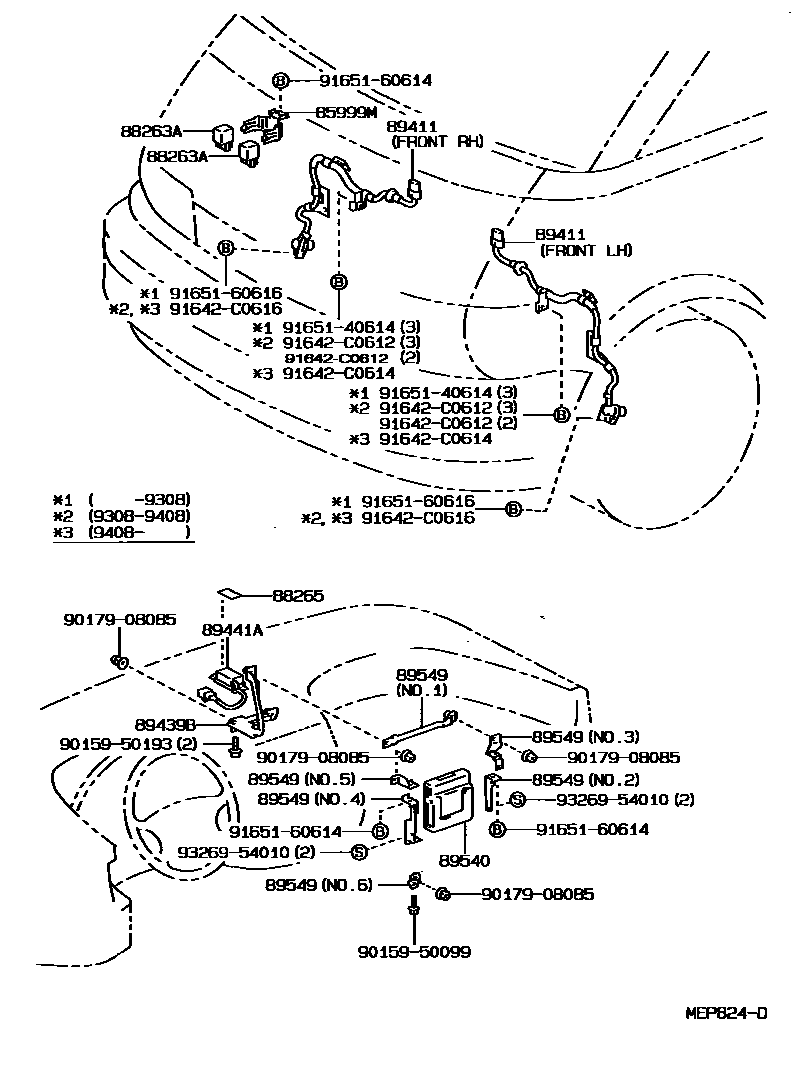

Toyota PREVIA — ABS & VSC

0001 1 0002 1 0003 1

85999MBRACKET, RELAY

main85999-28350iTCR10,20..EFI199308-199608

main85999-28400iTCR10,20..SPC199401-199608

main85999-28480iTCR10,20199608-199707

88263ARELAY, SKID CONTROL

main88263-12110iTCR10,20199608-199707

MOTOR

main88263-14110iTCR10,20..07S199001-199308

MOTOR

main88263-14120iTCR10,20..07S199001-199308

SOLENOID

main88263-35070iTCR10,20199308-199707

SOLENOID

main89633-50030iTCR10,20199308-199608

MOTOR

sub28610-64110

88265LABEL, SKID CONTROL CAUTION

main88265-28060iTCR20..07S199001-199005

89411SENSOR, SPEED

main89542-28010iTCR10,20..07S199001-199308

FRONT RH

main89542-28040iTCR10,20199308-199608

FRONT RH

sub89542-28050

main89542-28050iTCR10,20199608-199707

FRONT RH

main89543-28010iTCR10,20199001-199308

FRONT LH

main89543-28040iTCR10,20199308-199608

FRONT LH

sub89543-28050

main89543-28050iTCR10,20199608-199707

FRONT LH

main89545-28010iTCR10,20199001-199109

REAR RH

sub89545-28011

main89545-28011iTCR10,20199109-199308

REAR RH

main89545-28050iTCR10,20199308-199608

REAR RH

main89545-28090iTCR10,20199608-199707

REAR RH

main89546-28010iTCR10,20..07S199001-199308

REAR LH

main89546-28050iTCR10,20199308-199608

REAR LH

main89546-28090iTCR10,20199608-199707

REAR LH

89439BBRACKET, SENSOR

main89439-28010iTCR20..07S199001-199308

main89439-28050iTCR20199308-199608

89441ASENSOR, DECELERATION

main89440-28040iTCR20199308-199608

main89441-20030iTCR20199001-199308

89540COMPUTER ASSY, SKID CONTROL

main89541-28010iTCR10..07S199001-199005

sub89541-28011

main89541-28011iTCR10..07S199005-199308

main89541-28021iTCR20..07S199005-199308

main89541-28060iTCR10199308-199608

main89541-28070iTCR20199308-199608

main89541-28080iTCR10199608-199707

main89541-28090iTCR20199608-199707

89549BRACKET, SKID CONTROL COMPUTER

main88267-28080iTCR10,20199001-199308

NO.4

main88267-28090iTCR10,20..07S199001-199308

NO.2

main88267-28130iTCR10,20199308-199608

NO.1

main88267-28140iTCR10,20199608-199707

NO.1

main88268-28100iTCR10,20..07S199001-199308

NO.5

main88268-28110iTCR10,20..07S199001-199308

NO.3

main88269-28080iTCR10..07S199001-199308

NO.6

main88269-28090iTCR20199001-199308

NO.6

main89549-28010iTCR10..07S199001-199308

NO.1

main89549-28020iTCR20199001-199308

NO.1

main89549-28080iTCR10199308-199707

NO.3

main89549-28090iTCR20199308-199608

NO.3

9015950099

main90159-50099

9015950193

main90159-50193

9017908085

main90179-08085

91642C0612

main91642-C0612

91642C0614

main91642-C0614

91642C0616

main91642-C0616

9165140614

main91651-40614

9165160614

main91651-60614

9165160616

main91651-60616

9326954010

main93269-54010

18 parts on this diagram · 3 diagrams in section
